Pumps
>
Centrifugal Pumps
>
Chemical-Resistant Pedestal Pumps

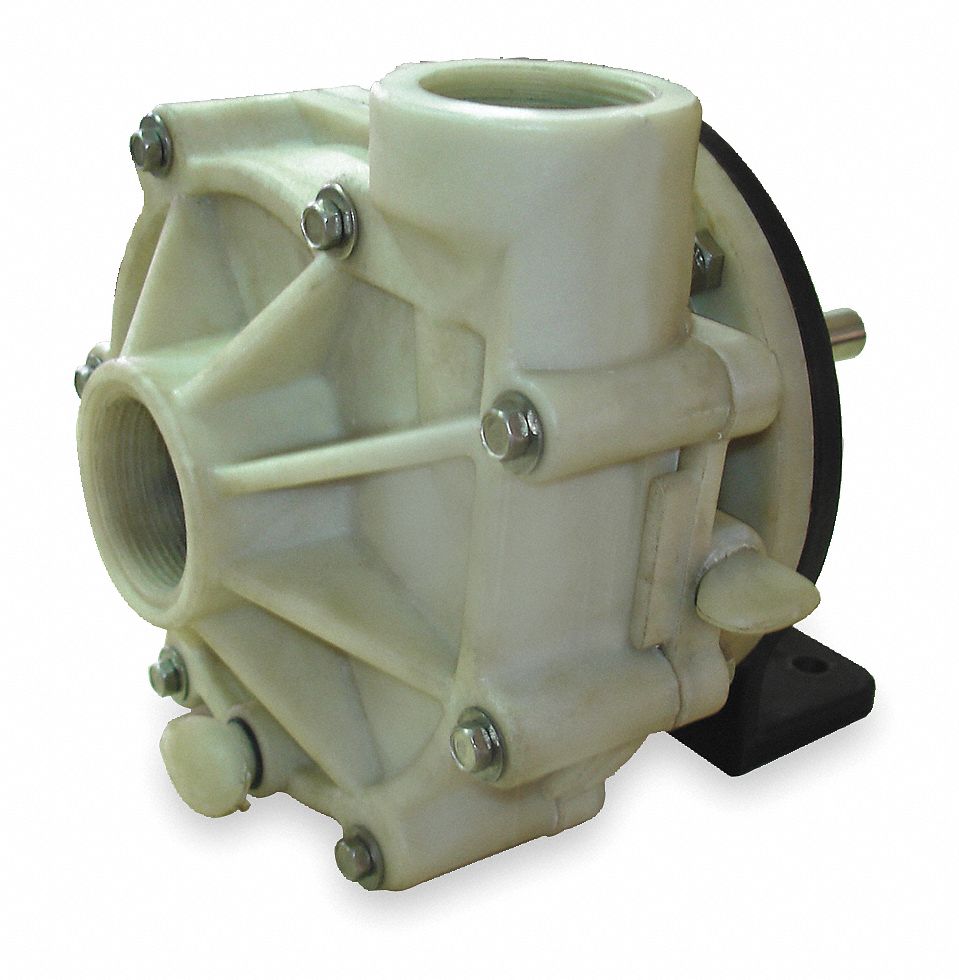

DAYTON Pedestal Pump, HP Req 1, Polypropylene

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pedestal Pump, Chemical-Resistant, HP Required 1, Inlet 1 1/2 In., Outlet 1 1/2 In., Housing Material Polypropylene, Impeller Material Polypropylene, Seal Material Buna N, SS, Carbon, Ceramic, Max. Liquid Temp. 140 F, Max. Head 79 Ft., Inlet Pressure 75 PSI, Impeller Type Closed, Length 9 1/3 In., Width 7 5/8 In., Height 7 1/2 In.

Grainger Item #	2YEU9
Price (ea.)	$710.00
Brand	DAYTON
Mfr. Model #	2YEU9
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.15
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pedestal Pump
Type		Chemical Resistant
HP Required		1
Inlet (In.)		1-1/2
Outlet (In.)		1-1/2
Wetted Materials		Polypropylene, Buna-N, SS, Carbon, Ceramic
Impeller Material		Polypropylene
Housing Material		Polypropylene
Volute Material		Polypropylene
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Seal Type		Mechanical
Seal Material		Buna N, SS, Carbon, Ceramic
Seal Application		Long Life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)		140
GPM of Water @ 10 Ft. of Head		55
GPM of Water @ 15 Ft. of Head		54
GPM of Water @ 20 Ft. of Head		53
GPM of Water @ 25 Ft. of Head		50
GPM of Water @ 30 Ft. of Head		48
GPM of Water @ 40 Ft. of Head		44
GPM of Water @ 50 Ft. of Head		38
GPM of Water @ 60 Ft. of Head		28
GPM of Water @ 70 Ft. of Head		14
Max. Head (Ft.)		79
Best Efficiency GPM @ Head (Ft.)		38 @ 50
Best Efficiency Range GPM @ Head (Ft.)		21-50 @ 65-25 Ft.
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		100
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		75
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Moderate Flow at Moderate Head Pressure
For Use With		Nonflammable and Non-abrasive liquid
Height (In.)		7-1/2
Length (In.)		9-1/3
Width (In.)		7-5/8
Includes		Manual
