HVAC and Refrigeration
>
Exhaust Fans
>
Hazardous Location Exhaust Fans

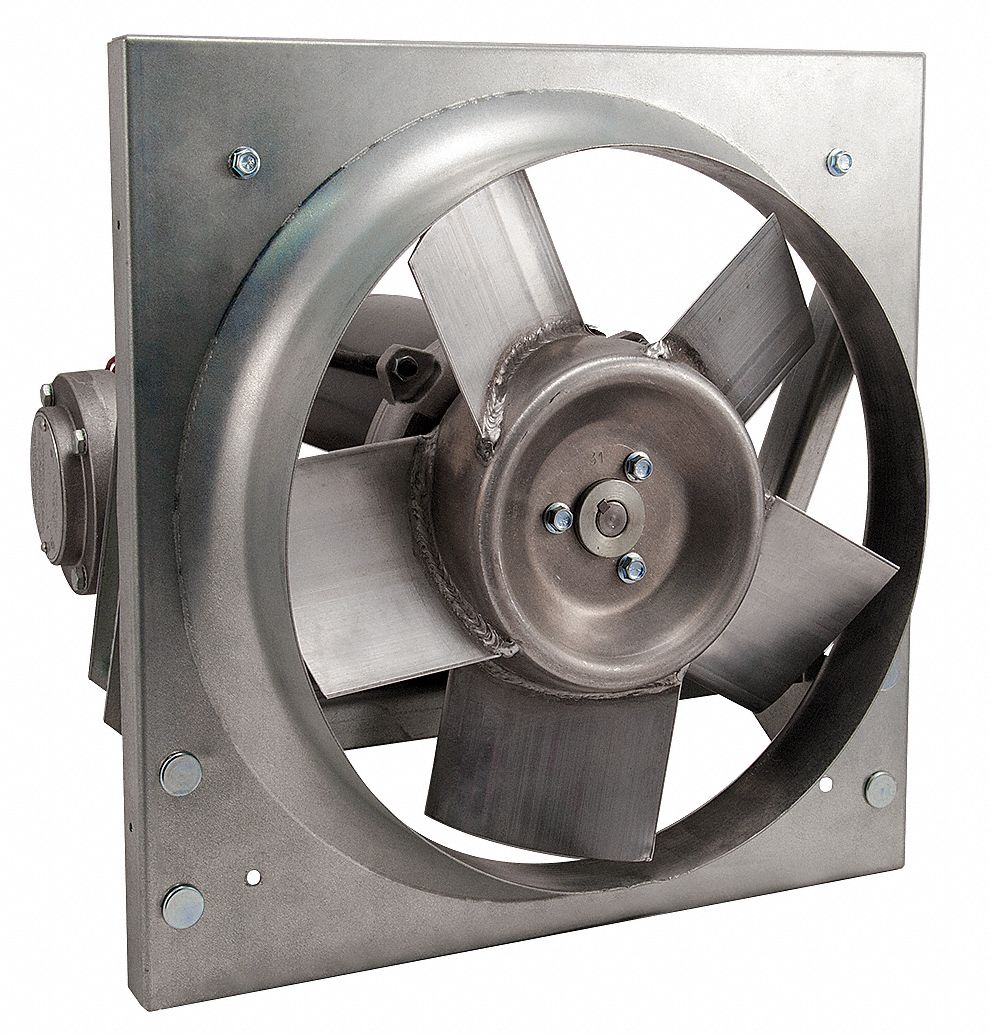

DAYTON Exhaust Fan, 12 In, Hazardous Location

| Write a Review
| Read all Reviews(2)
| Read all Ask & Answer

Panel Exhaust Fan, Direct Drive, Hazardous Location, Propeller Dia. (In.) 12, CFM @ 0.000-In. SP 1347, Sones @ 0.000-In. SP @ 5 Ft. 13.4, Voltage 115/208-230, 60 Hz, 1 Phase, Full Load Amps 4.2/2.1-2.0, Watts 186, Motor HP 1/4, Bearing Type Ball, Motor RPM 1750, Motor Enclosure Explosion Proof Fan Cooled, Motor Insulation Class B, Max. Ambient Temp. (F) 104, Height (In.) 16, Width (In.) 16, Max. Depth (In.) 15-3/8, Venturi Depth (In.) 2-1/2, Shaft Dia. (In.) 5/8

Grainger Item #	10D995
Price (ea.)	$977.50
Brand	DAYTON
Mfr. Model #	10D995
UNSPSC #	40101502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	37.75
Availability	Typically in Stock
Catalog Page No.	4448
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Panel Exhaust Fan
Type		Direct Drive, Hazardous Location
Propeller Dia. (In.)		12
CFM @ 0.000-In. SP		1347
CFM @ 0.125-In. SP		1262
CFM @ 0.250-In. SP		1142
CFM @ 0.375-In. SP		947
CFM @ 0.500-In. SP		604
Sones @ 0.000-In. SP @ 5 Ft.		13.4
Voltage		115/208-230
Hz		60
Phase		1
Full Load Amps		4.2/2.1-2.0
Watts		186
Motor HP		1/4
Bearing Type		Ball
Motor RPM		1750
Motor Enclosure		Explosion Proof Fan Cooled
Motor Insulation		Class B
Max. Ambient Temp. (F)		104
Height (In.)		16
Width (In.)		16
Max. Depth (In.)		15-3/8
Venturi Depth (In.)		2-1/2
Shaft Dia. (In.)		5/8
Mounting Position		Vertical or Horizontal
Flange Width (In.)		1
Number of Blades		5
Propeller Material		Aluminum
Frame Material		Galvanized
Frame Finish		Galvanized
Agency Compliance		UL and cUL Listed, AMCA
For Use With		NEC Class I, Div 1, Group C and D; NEC Class II, Div 1, Group F and G
Aluminum Wall Shutter No.		4C556
Intake Guard No.		1WBT8
