HVAC and Refrigeration
>
Blowers
>
OEM Specialty Blowers

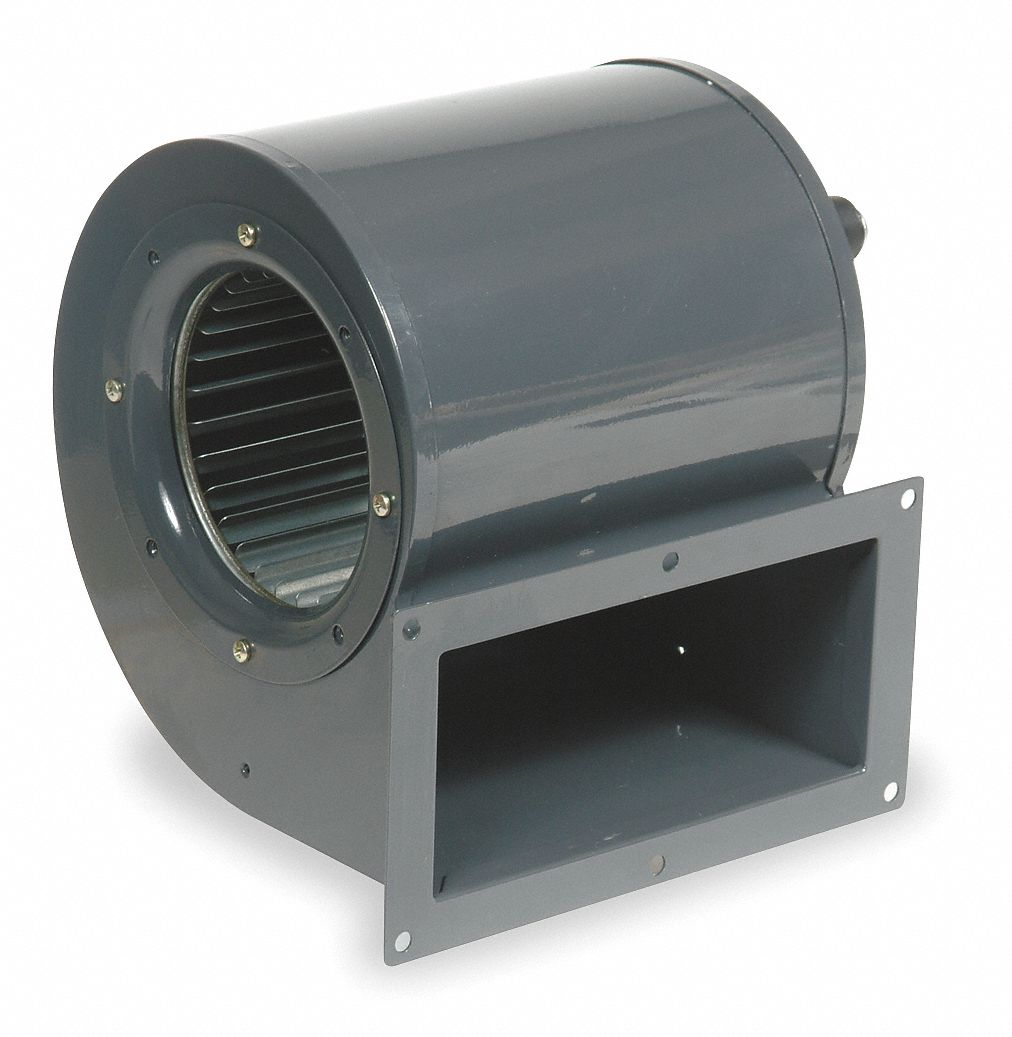

DAYTON PSC Blower, 115 Volts

| Write a Review
| Read all Reviews(2)
| Read all Ask & Answer

PSC Blower, Forward Curve, Direct Drive, Wheel Dia 5 1/8 In, CFM @ 0.000-In SP 463, Voltage 115, 60 Hz, Single Phase, Full Load Amps 1.28, RPM 1600, Max Inlet Temp 104 Deg F, Overall Height 9 3/8 In, Overall Width 9 3/16 In, Overall Depth 8 9/16 In, Includes Discharge Mounting Flange

Grainger Item #	1TDR9
Price (ea.)	$126.55
Brand	DAYTON
Mfr. Model #	1TDR9
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.75
Availability	Typically in Stock
Catalog Page No.	4508
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		PSC Blower
Wheel Dia. (In.)		5-1/8
Wheel Width (In.)		7
CFM @ 0.000-In. SP		463
CFM @ 0.100-In. SP		425
CFM @ 0.200-In. SP		388
CFM @ 0.300-In. SP		338
CFM @ 0.400-In. SP		250
CFM @ 0.500-In. SP		161
CFM @ 0.600-In. SP		50
Voltage		115
Hz		50/60
Phase		1
Full Load Amps		1.28
RPM		1600
Bearing Type		Ball
Motor Type		Permanent Split Capacitor
Motor Enclosure		Open
Motor Insulation		Class B
Thermal Protection		Auto
Lead Length (In.)		13
Conduit Box		No
Ambient Temp. (Deg. F)		104
Max. Inlet Temp. (Deg. F)		104
Inlet Dia. (In.)		4-9/16
Outlet Height (In.)		3-1/2
Outlet Width (In.)		7-13/16
Overall Height (In.)		9-3/8
Overall Width (In.)		9-3/16
Overall Depth (In.)		8-9/16
Wheel Type		Forward Curve
Drive Type		Direct
Mounting		All Position
Housing Finish		Gray Enamel
Housing Material		Rolled Steel
Agency Compliance		UL Recognized US and Canada (E47479), CE
Replaces		4C448
Includes		Discharge Mounting Flange
