DAYTON Osc Motor, 1/4 HP, 1075, 115 V, 48YZ, TEAO

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Oscillating Yoke Mount Fan Motor, PSC, Totally Enclosed Air-Over, 1/4 HP, Nameplate RPM 1075, Voltage 115, Full Load Amps 3.5, Hz 60, Phase 1, 48YZ NEMA/IEC Frame, 1.0 Service Factor, Ambient Temperature 40 Degrees C, Insulation Class B, Duty Continuous Air-over, Number of Speeds 2, Yoke Mounting, Ball Bearings, Auto Thermal Protection, CW Rotation, Body Dia. 5-5/8 In., Overall Length 13-15/16 In., Shaft Dia. 1/2 In., Shaft Length 2-7/8 In., 10 Ft. Cord & Pull Chain Switch Yes

Grainger Item #	4C354
Price (ea.)	$422.50
Brand	DAYTON
Mfr. Model #	4C354
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.9
Availability	Typically in Stock
Catalog Page No.	77
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

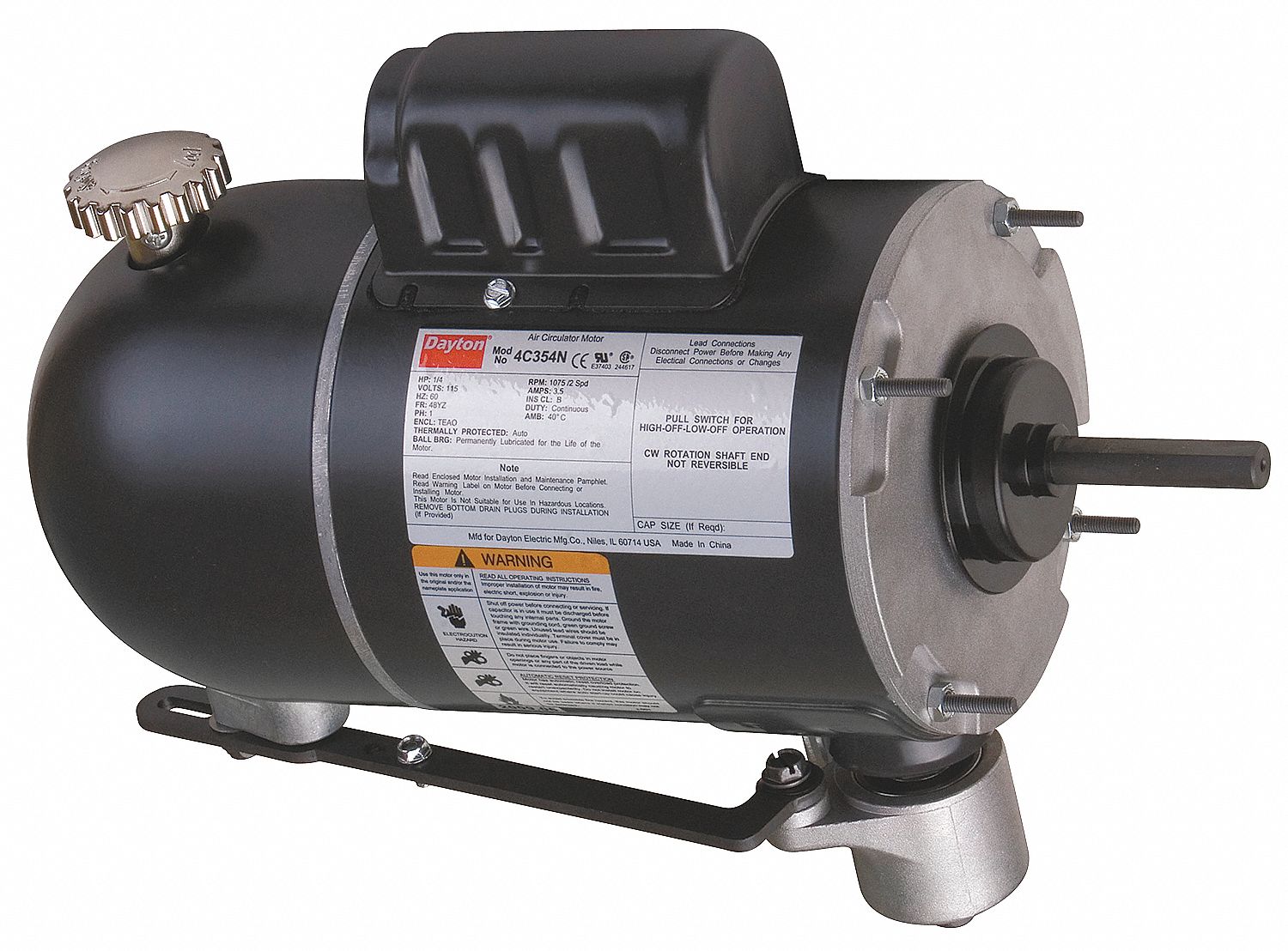

Osc Motor, 1/4 HP, 1075, 115 V, 48YZ, TEAO

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Oscillating Yoke Mount Fan Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
HP		1/4
Nameplate RPM		1075
Voltage		115
Full Load Amps		3.5
Hz		60
Phase		1
NEMA/IEC Frame		48YZ
Frame		48YZ
Service Factor		1.0
Ambient Temperature		40 Degrees C
Insulation Class		B
Duty		Continuous Air-over
Number of Speeds		2
Mounting		Yoke
Bearings		Ball
Thermal Protection		Auto
Rotation		CW
Body Dia.		5-5/8"
Overall Length		13-15/16"
Shaft Dia.		1/2"
Shaft Length		2-7/8"
10 Ft. Cord & Pull Chain Switch		Yes
Application		Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
RPM Range		1000-1380
Capacitor Included		Yes
