Oil Coolant Pump, Suction, 1/2 HP, 1 Phase, 5/2.5 Amps, Voltage 115/230, Length (In.) 7-3/16, Width (In.) 7-3/8, Height (In.) 12-3/16, Dia. (In.) 8-15/32, Discharge Port (In.) 3/4, Bolt Circle Dia. (In.) 8.06, Inlet/Outlet (In.) 3/4, 3450 RPM, Shut-Off (Ft.) 42, Impeller Material Aluminum, Body Material Cast Iron, Max. Temp. 180, Shaft Material Carbon Steel

Grainger Item #	3GRV1
Price (ea.)	$696.00
Brand	DAYTON
Mfr. Model #	3GRV1
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.5
Availability	Typically in Stock
Catalog Page No.	4109
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Oil Coolant Pump
Type		Suction
HP		1/2
Phase		1
Amps		5/2.5
Voltage		115/230
Length (In.)		7-3/16
Width (In.)		7-3/8
Height (In.)		12-3/16
Dia. (In.)		8-15/32
Discharge Port (In.)		3/4
Bolt Circle Dia. (In.)		8.06
Inlet/Outlet (In.)		3/4
RPM		3450
Motor Enclosure		TEFC
GPM of Water @ 5 Ft. of Head		32
GPM of Water @ 10 Ft. of Head		32
GPM of Water @ 15 Ft. of Head		30
GPM of Water @ 20 Ft. of Head		26
GPM of Water @ 30 Ft. of Head		18
GPM of Water @ 40 Ft. of Head		5
Shut-Off (Ft.)		42
Impeller Material		Aluminum
Body Material		Cast Iron
Max. Recommended Viscosity		500 SSU
Max. Suction Lift (Ft.)		2
Max. Temp.		180
Shaft Material		Carbon Steel
Shaft Seal		Carbon
Elastomer		Viton
Application		Circulation of Coolant, Spraying of Cutting Oil in all Types of Machines, Including Grinders
For Use With		Nonflammable Liquids Compatible with Pump Component Materials

Other Popular Terms for this Product

• Coolant Pumps (232)

• Spray Pumps (145)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Pumps > Machine Tool and Parts Washer Pumps > Machine Tool Pumps

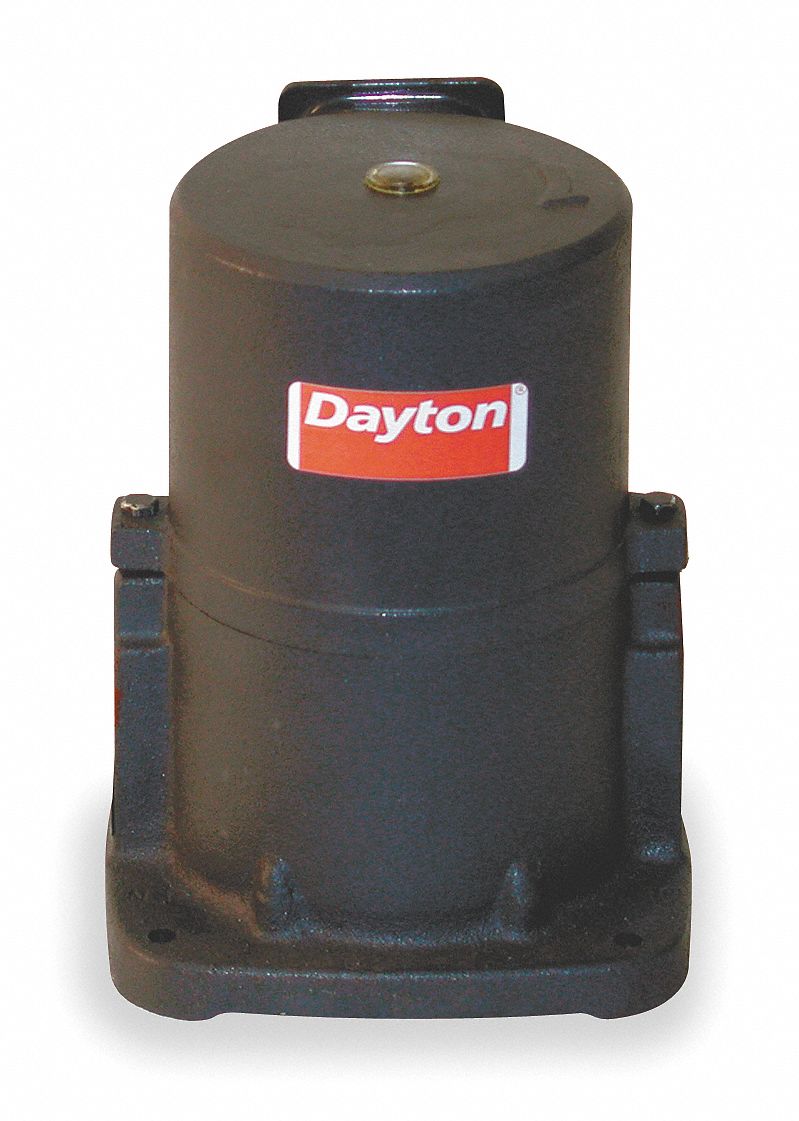

DAYTON Oil Coolant Pump, 1/2 HP, 1Ph, 115/230V
