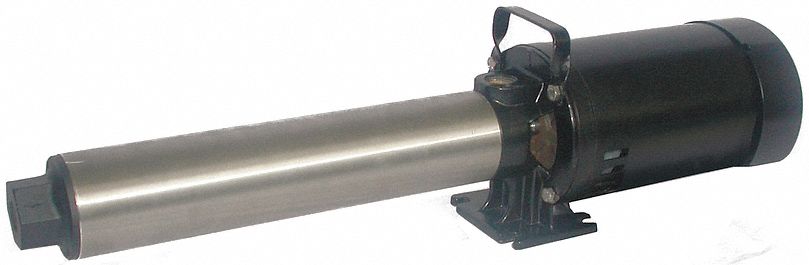

DAYTON Pump, Booster, CI, 3 HP, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Multistage Booster, Cast Iron, HP 3, 3 Phase, Voltage 208-230/460, 10.7-9.8/4.9 Amps, Inlet/Outlet NPTF (In.) 1, 14 Stages, Max. Pressure (PSI) 190, Housing Material Stainless Steel, Impeller Material Noryl, Impeller Type Closed, Length (In.) 30-9/16, Width (In.) 6-1/2, Height (In.) 9, Max. Case Pressure (PSI) 300, Max. Fluid Viscosity 50 SSU, Max. Liquid Temp. (F) 140, ODP Motor Enclosure, Seal Type Mechanical Type 21, Seal Material Carbon/Ceramic, Buna N, Stainless Steel

Grainger Item #	5NYA7
Price (ea.)	$821.50
Brand	DAYTON
Mfr. Model #	5NYA7
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	70.0
Availability	Typically in Stock
Catalog Page No.	4080
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Multistage Booster
Type		Cast Iron
HP		3
Phase		3
Voltage		208-230/460
Amps		10.3-9.2/4.6
Inlet/Outlet		1" FNPT
Stages		14
GPM @ 10 PSI		32.5
Max. Pressure (PSI)		172
Housing Material		Stainless Steel
Impeller Material		Noryl
Impeller Type		Closed
Max. Case Pressure (PSI)		300
Max. Fluid Viscosity		50 SSU
Max. Liquid Temp. (F)		140
Motor Enclosure		ODP
Seal Type		Mechanical Type 21
Seal Material		Carbon/Ceramic, Buna N, Stainless Steel
Wetted Materials		Noryl, Carbon/Ceramic, Buna N, Stainless Steel
Motor RPM		3450
Motor Type		3-Phase
NEMA/IEC Frame		56J
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Pressure Boosting, Pressure Cleaning, Spray or Mist Systems, Reverse Osmosis, Water Circulation
Agency Compliance		CSA, CUS Listed
Manufacturers Warranty Length		1 Year
Includes		Manual
Length (In.)		30-9/16
Width (In.)		6-1/2
Height (In.)		9-1/2
Bearing Type		Permanently Lubricated Maintenance-Free
Best Efficiency GPM @ Head (Ft.)		19@358
Best Efficiency Range GPM @ Head (Ft.)		25-13GPM@254-415Ft
Diffuser Material		Noryl
Duty		Continuous
GPM @ 20 PSI		31.2
GPM @ 40 PSI		29.8
GPM @ 60 PSI		27.5
GPM @ 80 PSI		26.1
GPM @ 100 PSI		24.3
GPM @ 120 PSI		24.8
GPM @ 140 PSI		22.2
GPM @ 160 PSI		18.4
GPM @ 180 PSI		12.2
Hz		60
Motor Ambient Temp. Rating		65 Degrees C
Seal Application		Clear Water
Service Factor		1
Shaft Material		SS430
Suction Lift (Ft.)		10
