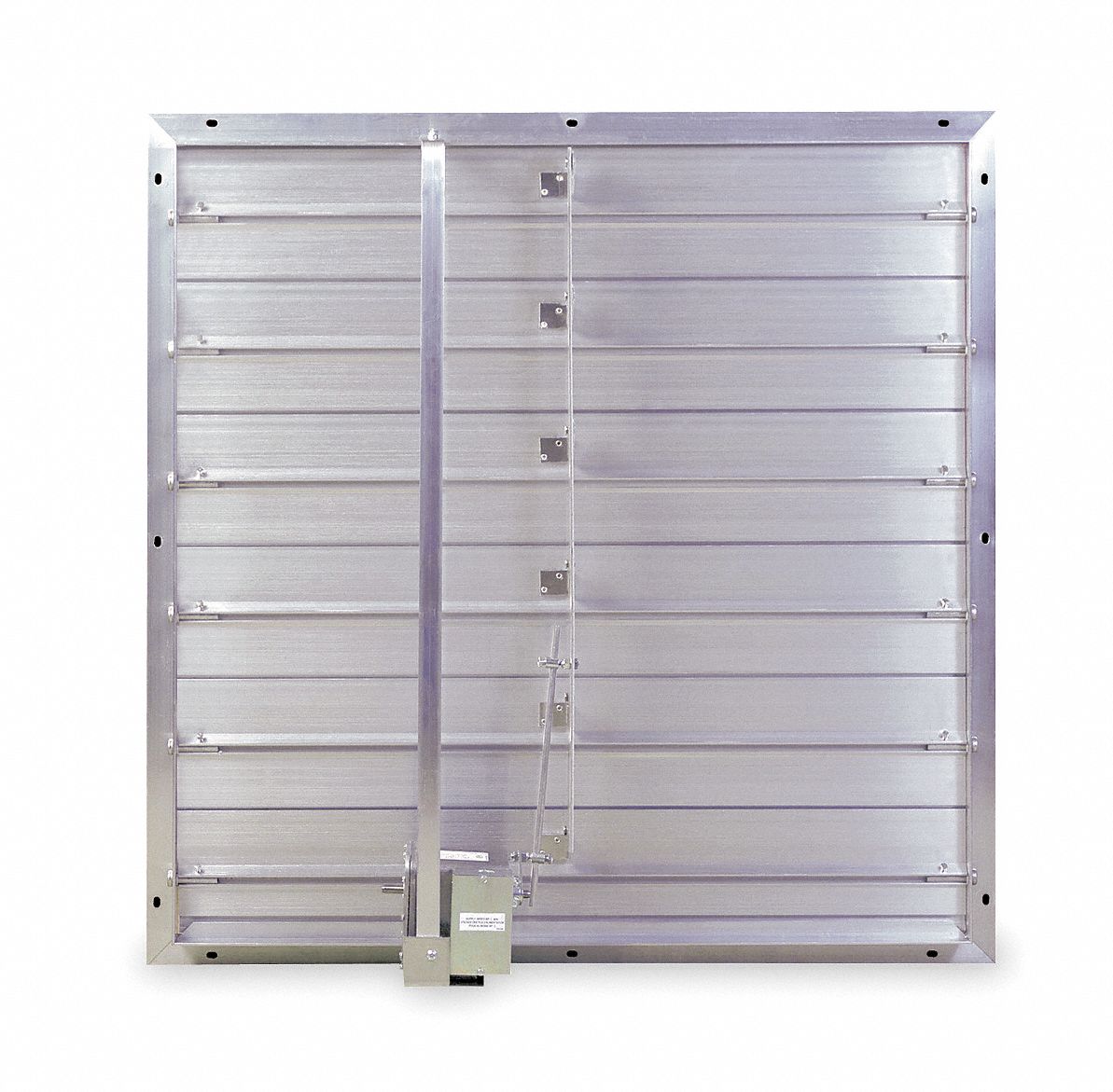

DAYTON Damper, Motorized, 42 In, Aluminum

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motorized Damper, Single Panel, Power Open, Spring Return, Voltage 100-240, 60 Hz, Single Phase, For Fan Dia 42 In, Sq Opening Required 43 In, Free Area 11.305 Square-Ft, Max Velocity 3500 FPM, Extruded Aluminum, Frame Thickness is 0.125 In, Blade Thickness is 0.080 In, Mounting Position Horizontal or Vertical, For Use With Intake or Exhaust Applications, Requires 12 In High Roof Curb for Roof Mount Applications

Grainger Item #	3C235
Price (ea.)	$656.00
Brand	DAYTON
Mfr. Model #	3C235
UNSPSC #	40101504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	49.0
Availability	Typically in Stock
Catalog Page No.	4456
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motorized Damper
Type		Single Panel, Power Open, Spring Return
Voltage		100-240
Hz		100-240
Phase		1
For Fan Dia. (In.)		42
Sq. Opening Required (In.)		43
Overall Square (In.)		45
Frame Less Flange (Sq.-In.)		42
Flange Width (In.)		1-1/2
Motor Bracket Extension (In.)		10-1/4
Mounting Hole (In.)		9/32 x 1/2
Free Area (Square-Ft.)		11.305
Max. Velocity (FPM)		3500
Construction Material		Extruded Aluminum, Frame Thickness is 0.125", Blade Thickness is 0.080"
Mounting Position		Horizontal or Vertical
For Use With		Intake or Exhaust Applications
