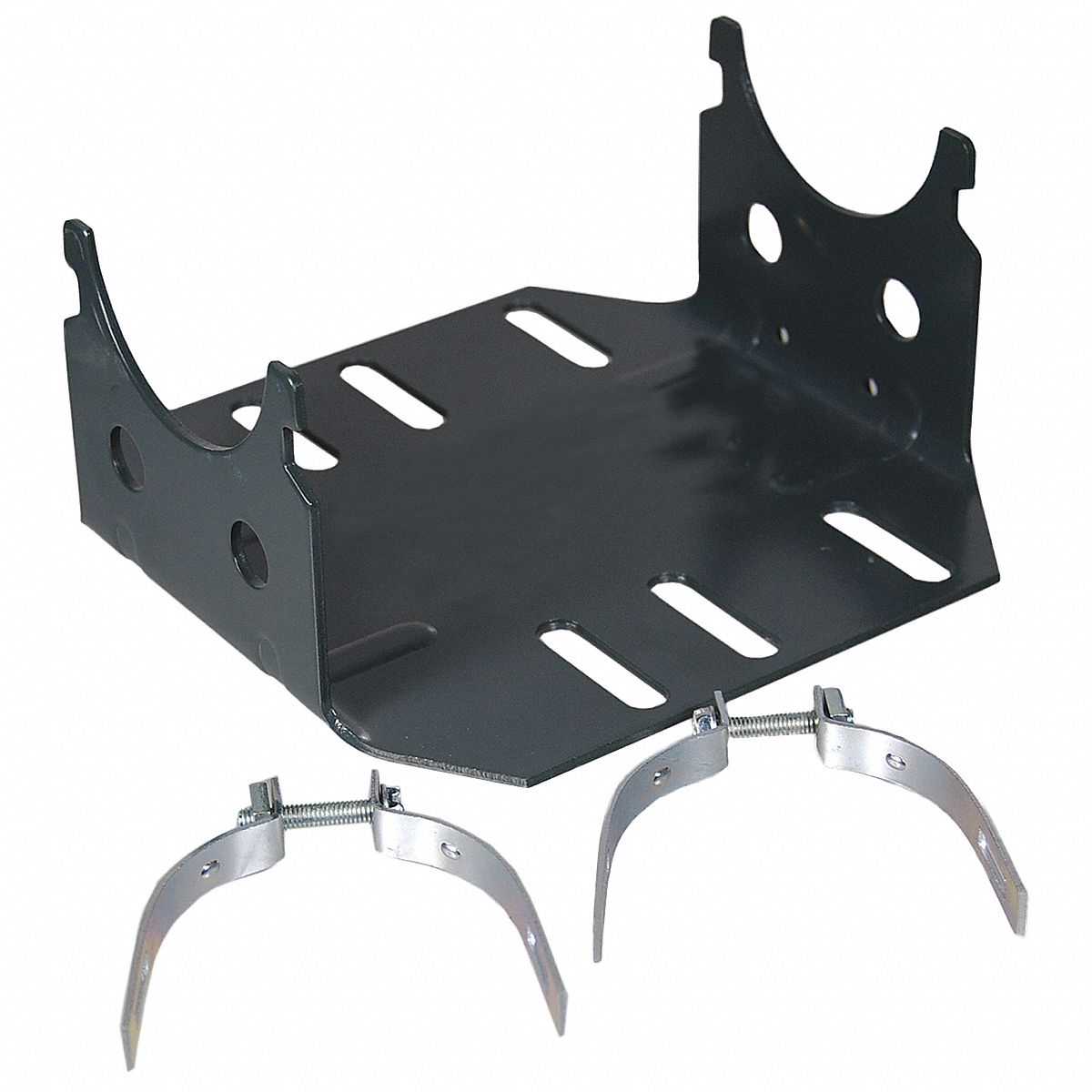

DAYTON Mounting Base, NEMA Frame 42, 4-3/4 In.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motor Mounting Base, For NEMA Frame 42, Bolt Size 5/16 In., Motor Body Dia. 5 In., Ring Dia. 2-1/2 In., Ring to Ring Center 4-3/4 In., Shaft Height 3-1/2 In., Mounting Holes O.C. W 4-1/4 In., Mounting Holes O.C. L 1-3/4, 2-3/4 In., Stamped Steel Material, Includes 2 Clamps

Grainger Item #	22F195
Price (ea.)	$19.00
Brand	DAYTON
Mfr. Model #	22F195
UNSPSC #	26101808
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.35
Availability	Typically in Stock
Catalog Page No.	94
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motor Mounting Base
For NEMA Frame		42
Height (In.)		3-3/8
Width (In.)		6
Length (In.)		4-13/16
Bolt Size (In.)		5/16
Motor Body Dia. (In.)		5
Ring Dia. (In.)		2-1/2
Ring to Ring Center (In.)		4-3/4
Shaft Height (In.)		3-1/2
Mounting Holes O.C. W (In.)		4-1/4
Mounting Holes O.C. L (In.)		1-3/4, 2-3/4
Material		Stamped Steel
Finish		Baked-on Enamel
Color		Gray
Includes		2 Clamps
