DAYTON Mini Circuit Breaker, D Curve, 1P, 4A, 277V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Miniature Circuit Breaker, DIN Rail Mounted, High Interrupting Capacity Circuit Breaker Type, Lever Switch Type, D Curve Type, Number of Poles 1, 4 Amps, 277, Max. DC Voltage (V) N/A, AIR Rating 7.5kA@240V, 5kA@277V, 1 Phase, Screw Clamp Terminal Connection, Min. Wire Size (AWG) 14, Max. Wire Size (AWG) 4, Length (In.) 3.21, Width (In.) 0.71, Depth (In.) 2.91, Fixed Instantaneous Trip, High Amp Trip Setting 57.6, Low Amp Trip Setting 38.4, Frame Size 63, Standards UL, CSA, TUV, CE

Grainger Item #	5ZVD5
Price (ea.)	$55.20
Brand	DAYTON
Mfr. Model #	5ZVD5
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.3
Availability	Item ships within 4 business days from supplier
Catalog Page No.	292
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

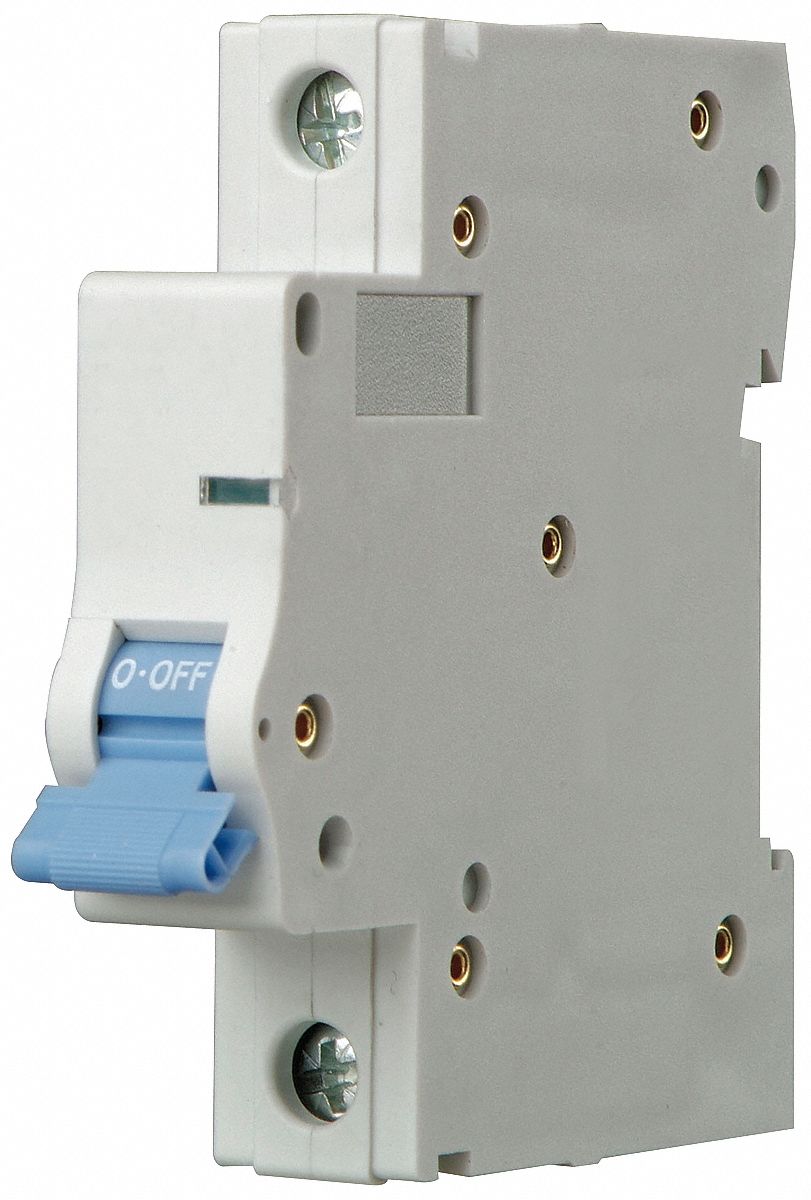

Mini Circuit Breaker, D Curve, 1P, 4A, 277V

Enlarge Image

Item		Circuit Breaker
Type		Din Rail Mount
Circuit Breaker Type		Miniature UL 1077
Switch Type		Lever
Curve Type		D
Number of Poles		1
Amps		4
Voltage		277VAC
AIR @ 240VAC		7.5k
AIR @ 277VAC		5k
Phase		1
Terminal Connection		Screw Clamp
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		4
Length (In.)		3.21
Width (In.)		0.71
Depth (In.)		2.91
Instantaneous Trip		Fixed
High Amp Trip Setting		57.6
Low Amp Trip Setting		38.4
Frame Size		63
For Use With		Motor, Transformer, High-Inrush Applications
Standards		UL, CSA,TUV,CE
