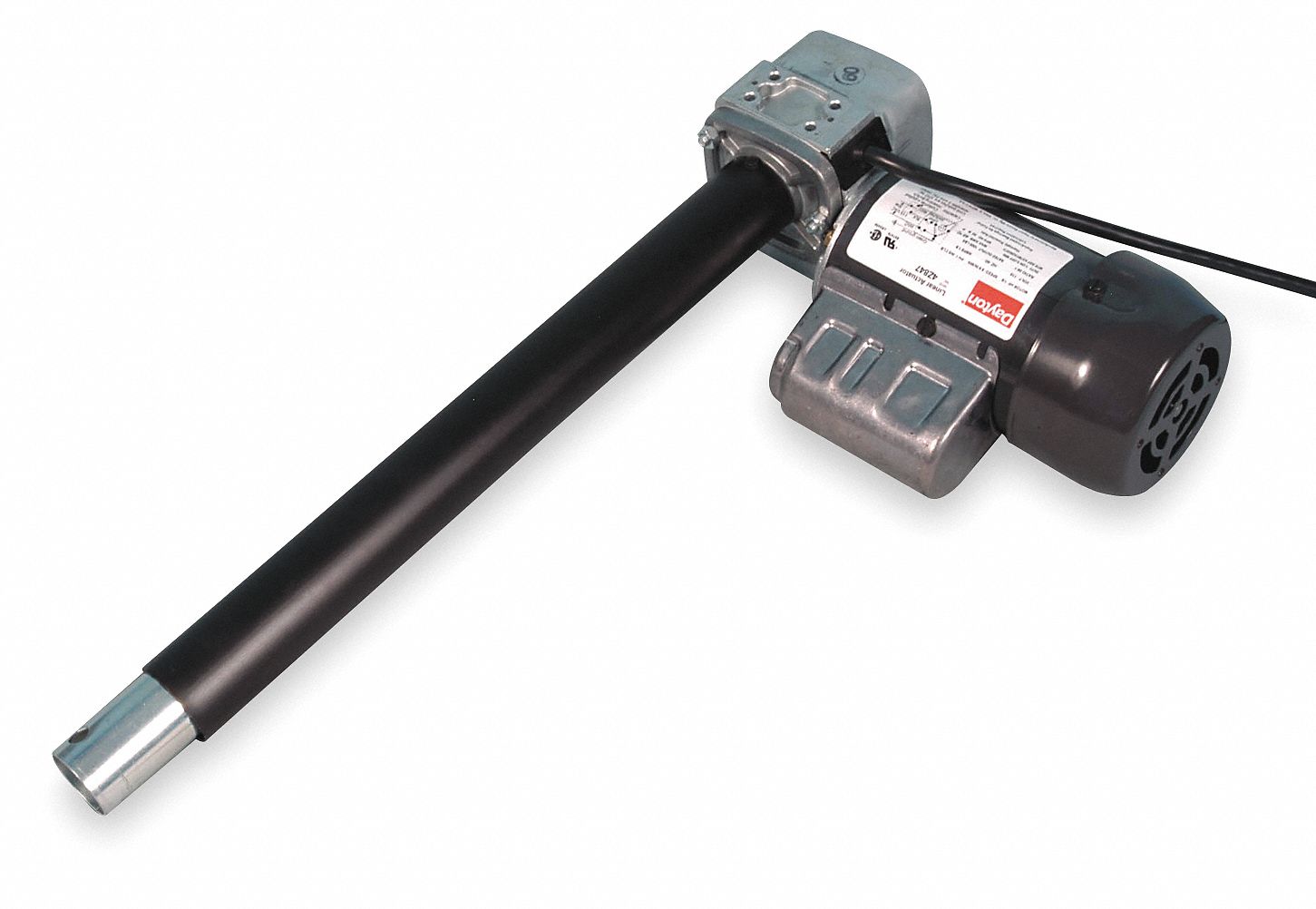

DAYTON Linear Actuator, 115VAC, 1300 Lb Load

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Linear Actuator, Rated Load 1300 Lb, Voltage 115VAC, 4.2 Full Load Amps, Retracted Dimension 20.5 In, Travel 10 In, Continuous Duty Travel 62 In, Speed 8.9 In/Minute, Duty Cycle 25 %, Operating Frequency 60 Hz, Ambient Temp Max 40C/104F, Totally Enclosed Fan-Cooled, Permanent Split Capacitor Motor Type, Auto Reset Thermal Protection, Capacitor Included

Grainger Item #	1XFX6
Price (ea.)	$1,144.00
Brand	DAYTON
Mfr. Model #	1XFX6
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.95
Availability	Typically in Stock
Catalog Page No.	227
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Linear Actuator
Rated Load (Lb.)		1300
Voltage		115VAC
Full Load Amps		4.2
Retracted Dimension (In.)		20.50
Travel (In.)		10
Continuous Duty Travel (In.)		62
Speed (In./Minute)		8.9
Duty Cycle (%)		25
Operating Frequency (Hz)		60
Ambient Temp. Max (C/F)		40C/104F
Enclosure Type		Totally Enclosed Fan-Cooled
Motor Type		Permanent Split Capacitor
Thermal Protection		Auto Reset
Capacitor Included		Yes
Limit Switch Type		Adjustable
Gears		Worm
Screw Type		Acme
Agency Compliance		UL Recognized, CSA Certified
