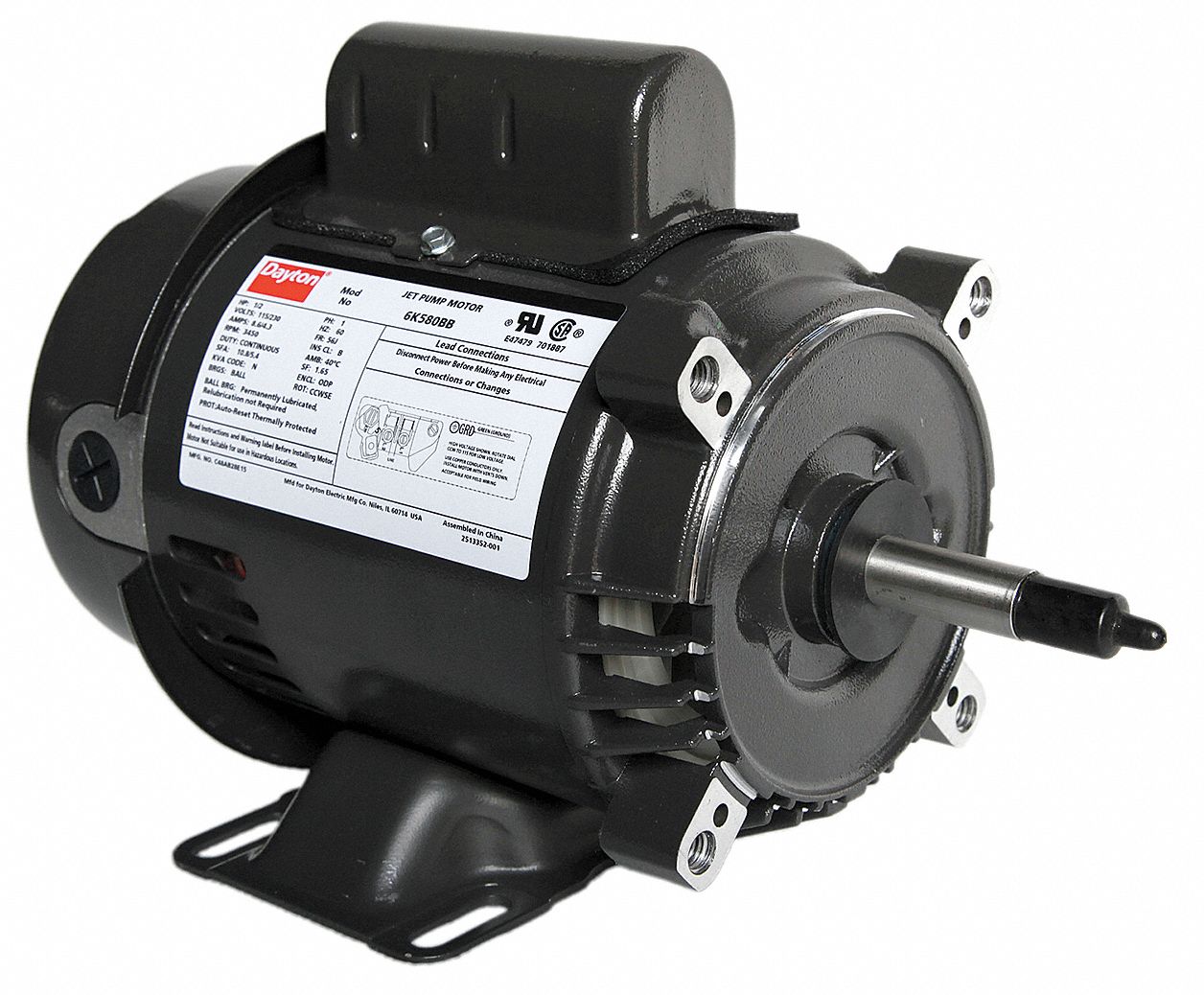

DAYTON Motor, 1/2hp, Jet Pump

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Jet Pump Motor, Capacitor-Start, 1/2 HP, Nameplate RPM 3450, Voltage 115/230, 1 Phase, Frame 56J, Open Dripproof, Full Load Amps 8.6/4.3, 60 Hz, Mounting Face/Base, Thermal Protection Auto, Insulation Class B, Service Factor 1.65, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CCWShaft Dia. 5/8 In., Shaft Length 2-3/8 In., Includes Dripcover Kit for Vertical Mounting

Grainger Item #	6K580
Price (ea.)	$219.00
Brand	DAYTON
Mfr. Model #	6K580
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.6
Availability	Typically in Stock
Catalog Page No.	48
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Jet Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		3450
Frame		56J
Rotation		CCW
Voltage		115/230
Full Load Amps		8.6/4.3
Phase		1
Hz		60
Mounting		Face/Base
Mounting Position		Vertical (Shaft Down) or Horizontal
Bearings		Ball
Thermal Protection		Auto
Service Factor		1.65
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-3/8"
Shaft Type		Threaded
Body Dia.		5.625"
Insulation Class		B
RPM Range		2350-3600
Nominal Efficiency		67.7%
Includes		Dripcover Kit for Vertical Mounting
Standards		UL Recognized (E47479), CSA Certified (701848 and 225293)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	5U170	Mtr, Cap St, 1/2 HP, 3450, 115/230V, 56J, ODP >More Details... Country of Origin: Mexico	MARATHON ELECTRIC 5KC39HN2888X	Typically in Stock	$216.00
