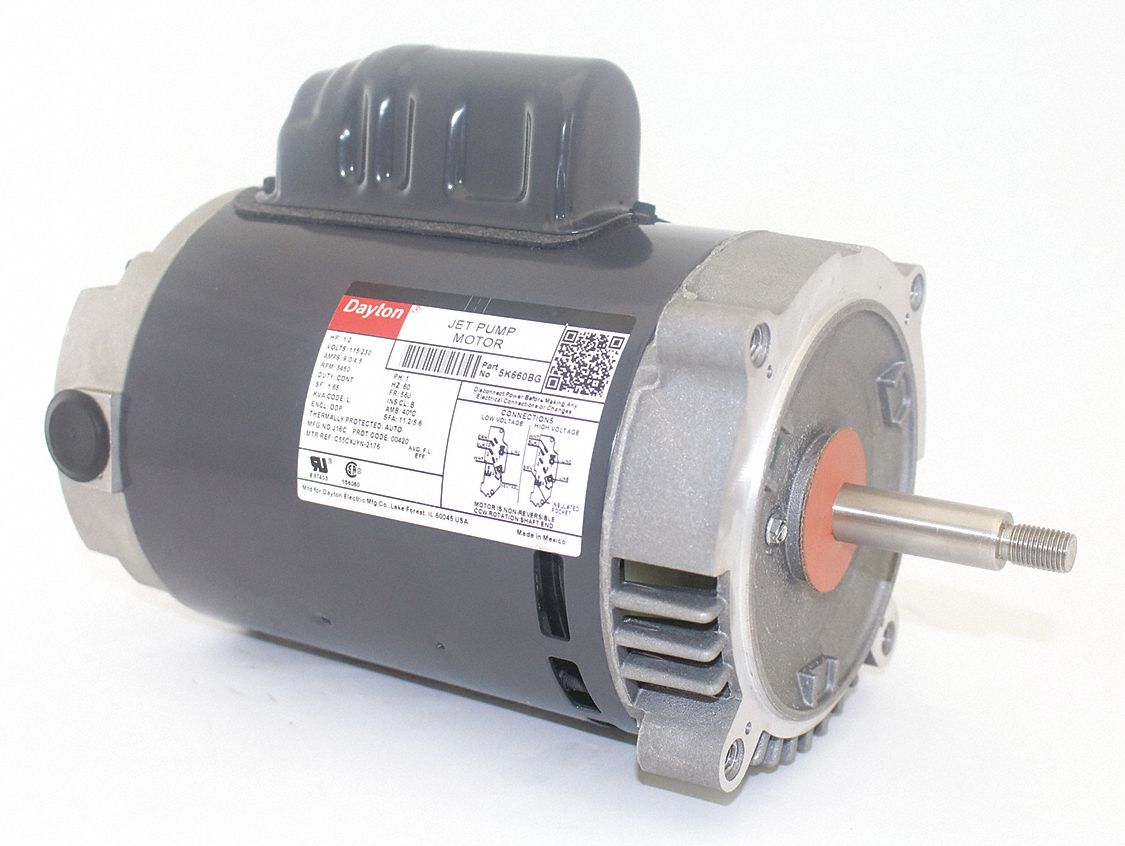

DAYTON Motor, 1/2hp, Jet Pump

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Jet Pump Motor, Capacitor-Start, 1/2 HP, Nameplate RPM 3450, Voltage 115/230, 1 Phase, Frame 56J, Open Dripproof, Full Load Amps 8.6/4.3, 60 Hz, Mounting Face, Thermal Protection Auto, Insulation Class B, Service Factor 1.65, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CCWShaft Dia. 5/8 In., Shaft Length 2-3/8 In., Includes Dripcover Kit for Vertical Mounting

Grainger Item #	5K660
Price (ea.)	$216.50
Brand	DAYTON
Mfr. Model #	5K660
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.8
Availability	Typically in Stock
Catalog Page No.	48
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Jet Pump Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		3450
Frame		56J
Rotation		CCW
Voltage		115/230
Full Load Amps		8.6/4.3
Phase		1
Hz		60
Mounting		Face
Mounting Position		Vertical (Shaft Down) or Horizontal
Bearings		Ball
Thermal Protection		Auto
Service Factor		1.65
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-3/8"
Shaft Type		Threaded
Body Dia.		5.625"
Insulation Class		B
RPM Range		2350-3600
Nominal Efficiency		67.7%
Includes		Dripcover Kit for Vertical Mounting
Standards		UL Recognized (E47479), CSA Certified (701848 and 225293)
