HVAC and Refrigeration
>
Blowers
>
Square Centrifugal In-Line Blowers

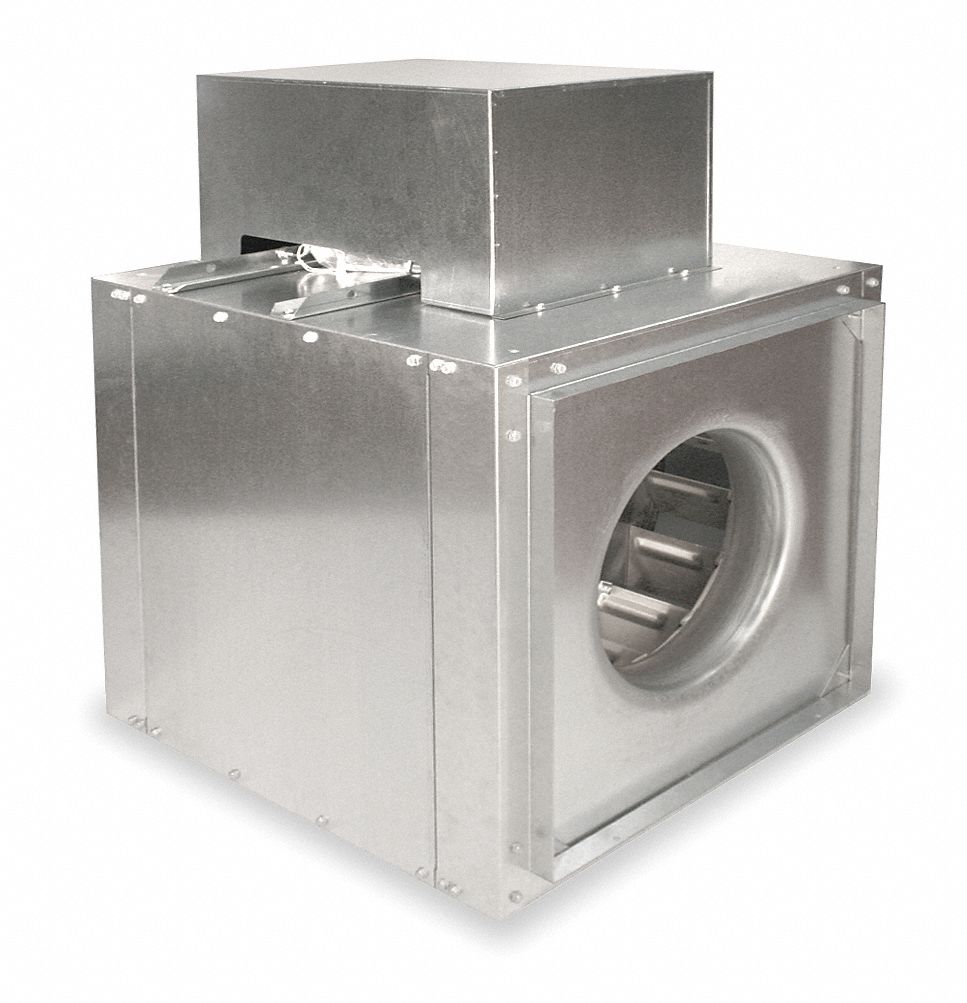

DAYTON Duct Blower, 20 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Inline Duct Blower, Centrifugal, With Drive Package, Wheel Dia 20 In, CFM @ 0.000-In SP 5895, @ 0.125-In SP 5741, Sones @ 0.125-In SP @ 5 Ft. 19.1, Blower RPM 1090, Max Inlet Temp 160 Deg F, Volts 208-230/460, 60 Hz, 3 Phase, Motor HP 1 1/2, Height 32 In, Width 32 In, Max Depth 32 In, Outlet Height 27 7/8 In, Outlet Width 27 7/8 In, Inlet Width 27 7/8 In, Inlet Height 27 7/8 In, Max Motor Height 16 In, Housing Material Galvanized Steel, Wheel Material Aluminum, Includes Access Panels

Grainger Item #	7H480
Price (ea.)	$2,272.00
Brand	DAYTON
Mfr. Model #	7H480
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	332.71
Availability	Typically in Stock
Catalog Page No.	4517
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Inline Duct Blower
Type		Centrifugal, With Drive Package
Wheel Dia. (In.)		20
CFM @ 0.000-In. SP		5895
CFM @ 0.125-In. SP		5741
CFM @ 0.250-In. SP		5587
CFM @ 0.375-In. SP		5430
CFM @ 0.500-In. SP		5253
CFM @ 0.625-In. SP		5075
CFM @ 0.750-In. SP		4874
CFM @ 1.000-In. SP		4452
CFM @ 1.250-In. SP		3878
Sones @ 0.000-In. SP @ 5 Ft.		19.3
Sones @ 0.125-In. SP @ 5 Ft.		19.1
Sones @ 0.250-In. SP @ 5 Ft.		18.9
Blower RPM		1090
Max. Inlet Temp. (Deg. F)		160
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		4.4-4.0/2.0
Motor RPM		1118
Motor HP		1-1/2
Max. BHP		1.57
Bearing Type		Regreasable Pillow Block
Motor Type		Three Phase
Motor Enclosure		Open Dripproof Air-Over
Height (In.)		32
Width (In.)		32
Max. Depth (In.)		32
Inlet Dia. (In.)		14 1/2
Outlet Dia. (In.)		14-1/2
Outlet Height (In.)		27 7/8
Outlet Width (In.)		27 7/8
Inlet Width (In.)		27 7/8
Inlet Height (In.)		27 7/8
Max. Motor Height (In.)		16
Mounting Position		Vertical/Horizontal
Housing Material		Galvanized Steel
Wheel Type		Backward Incline
Wheel Material		Aluminum
Shaft Dia. (In.)		1
Includes		Access Panels
Agency Compliance		UL-705, AMCA Sound & Air
