HVAC and Refrigeration
>
Blowers
>
Square Centrifugal In-Line Blowers

D, 1948 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

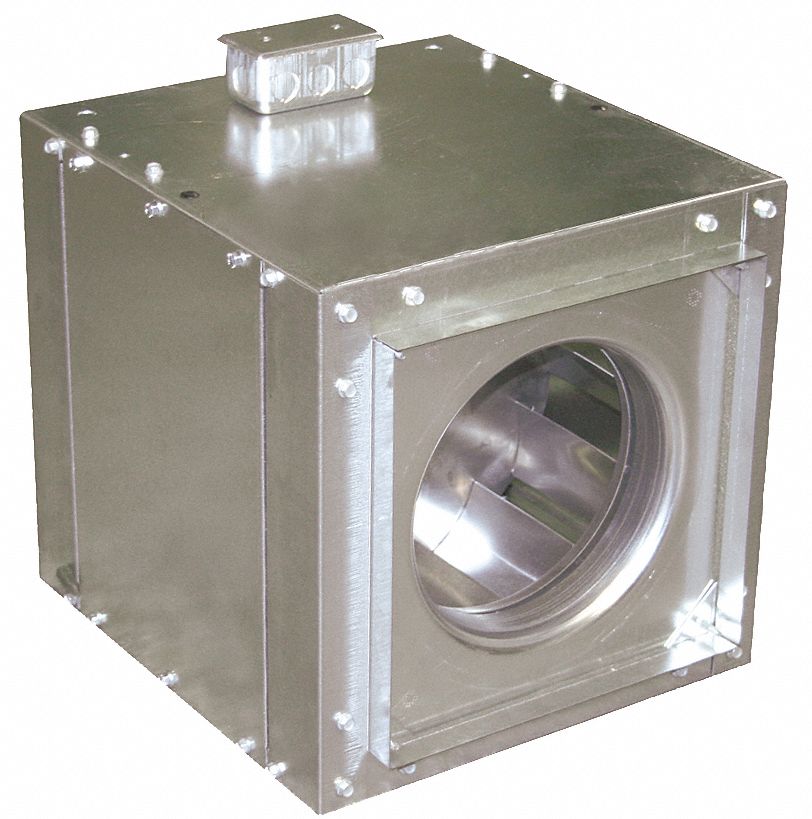

Inline Duct Blower, Direct Drive Centrifugal, Wheel Dia 13-1/8 In., CFM @ 0.000-In. SP 1948, CFM @ 0.125-In. SP 1883, Sones @ 0.000-In. SP @ 5 Ft. 14.7, Max. Inlet Temp. 104 Deg. F, Voltage 115/230, Hz 60, Phase Single, Full Load Amps 6.0/3.0, Motor HP 1/2, Height 19 In., Width 19 In., Max. Depth 21 In., Inlet Dia. 9-1/8 In., Outlet Dia. 9-1/8 In., Outlet Height 15-7/8 In., Outlet Width 15-7/8 In., Inlet Width 15-7/8 In., Inlet Height 15-7/8 In.

Grainger Item #	5TCK9
Price (ea.)	$1,062.00
Brand	DAYTON
Mfr. Model #	5TCK9
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	72.0
Availability	Typically in Stock
Catalog Page No.	4516
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Inline Duct Blower
Type		Direct Drive Centrifugal
Wheel Dia. (In.)		13-1/8
CFM @ 0.000-In. SP		1948
CFM @ 0.125-In. SP		1883
CFM @ 0.250-In. SP		1818
CFM @ 0.375-In. SP		1754
CFM @ 0.500-In. SP		1692
CFM @ 0.625-In. SP		1628
CFM @ 0.750-In. SP		1562
CFM @ 1.000-In. SP		1416
CFM @ 1.250-In. SP		1239
Sones @ 0.000-In. SP @ 5 Ft.		14.7
Sones @ 0.125-In. SP @ 5 Ft.		14.1
Sones @ 0.250-In. SP @ 5 Ft.		13.8
Blower RPM		1725
Max. Inlet Temp. (Deg. F)		104
Voltage		115/230
Hz		60
Phase		Single
Full Load Amps		6.0/3.0
Motor RPM		1725
Motor HP		1/2
Max. BHP		0.48
Motor Type		Permanent Split Capacitor
Motor Enclosure		Open Dripproof
Height (In.)		19
Width (In.)		19
Max. Depth (In.)		21
Inlet Dia. (In.)		9-1/8
Outlet Dia. (In.)		9-1/8
Outlet Height (In.)		15-7/8
Outlet Width (In.)		15-7/8
Inlet Width (In.)		15-7/8
Inlet Height (In.)		15-7/8
Mounting Position		Multi-position
Housing Material		Galvanized Steel
Wheel Type		Centrifugal Backward Inclined
Wheel Material		Aluminum
Speed Control		1DGV3
Includes		Access Panel
Agency Compliance		AMCA Sound and Air, UL/cUL 705
