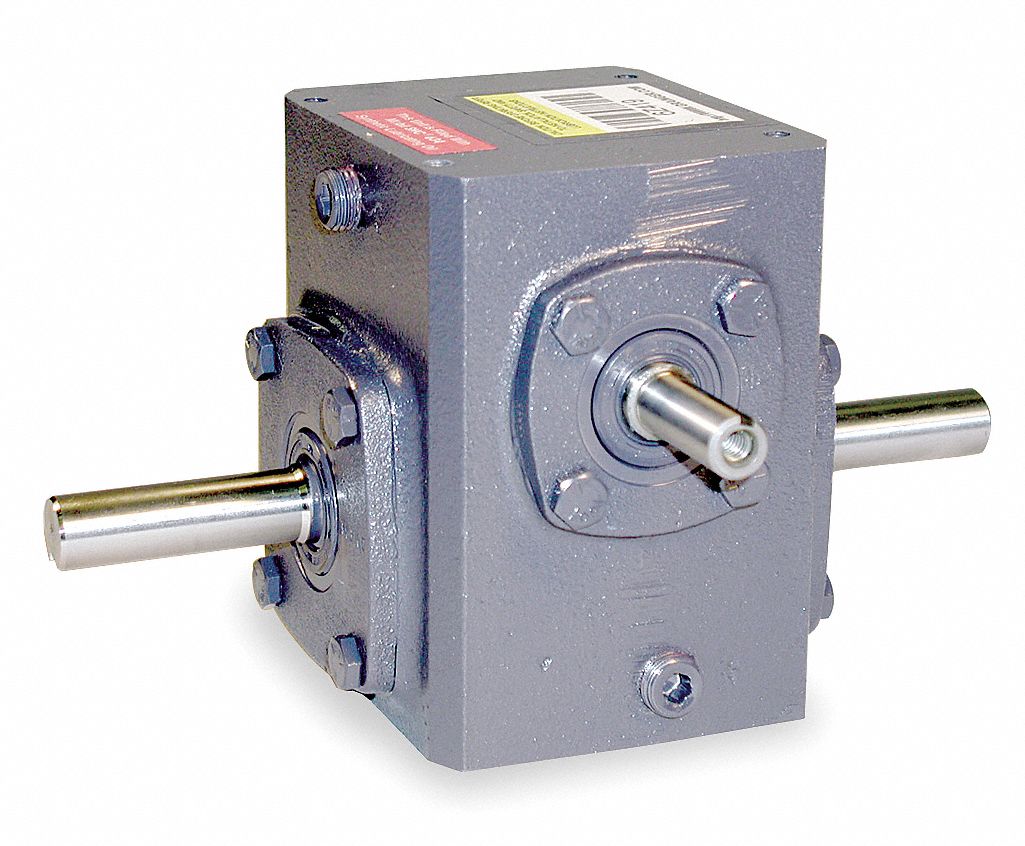

DAYTON Speed Reducer, 60 to 1

Indirect Drive Right Angle Speed Reducer, Nominal Output Speed 29 RPM, Input RPM 1725-1750, Overhung Load 275 Pounds, Nominal Ratio 60:1, Output Torque @ 1/4 HP 209 Inch Pounds, Worm Center Distance 1.33 Inches, Double Output Shaft Assembly, Mounting Any Position Except Input Shaft Down
  • Grainger Item #6Z419
    Price (ea.)$453.75
    BrandDAYTON
    Mfr. Model #6Z419
    UNSPSC #26111503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)16.9
    Availability Typically in Stock
    Catalog Page No.132
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemSpeed Reducer
TypeIndirect Drive
Shaft OrientationRight Angle
DutyStandard
Input RPM1750
Nominal Output RPM29
Worm Center Distance1.33"
Overhung Load (Lb.)275
Nominal Ratio60:1
Max. Input HP1/4
Max. Torque (In.-Lbs.)209
Output Torque @ 1/4 HP (In.-Lb.)209
Number of Stages1
RotationForward/Reverse
LubricationKluber Food Grade
Oil SealDouble Lip
BearingsBall
FinishPowdered Epoxy Paint
Shaft AssemblyDouble Output

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Speed Reducer, 60 to 1" /> <div id="BVRRContentValidationID_6Z419"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-19" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Speed Reducer, 60 to 1" />Rated <span itemprop="ratingValue">3</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_6Z419"><div id='6082782' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Speed Reducer, 60 to 1" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">3</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Hillbilly</span><span itemprop="name"> Could be better</span><span itemprop="description"> We have noticed more failures with teeth breaking off main gear.The worm gear appears ok.</span> June 19, 2012<meta itemprop="datePublished" content="2012-06-19" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_6Z419').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>
