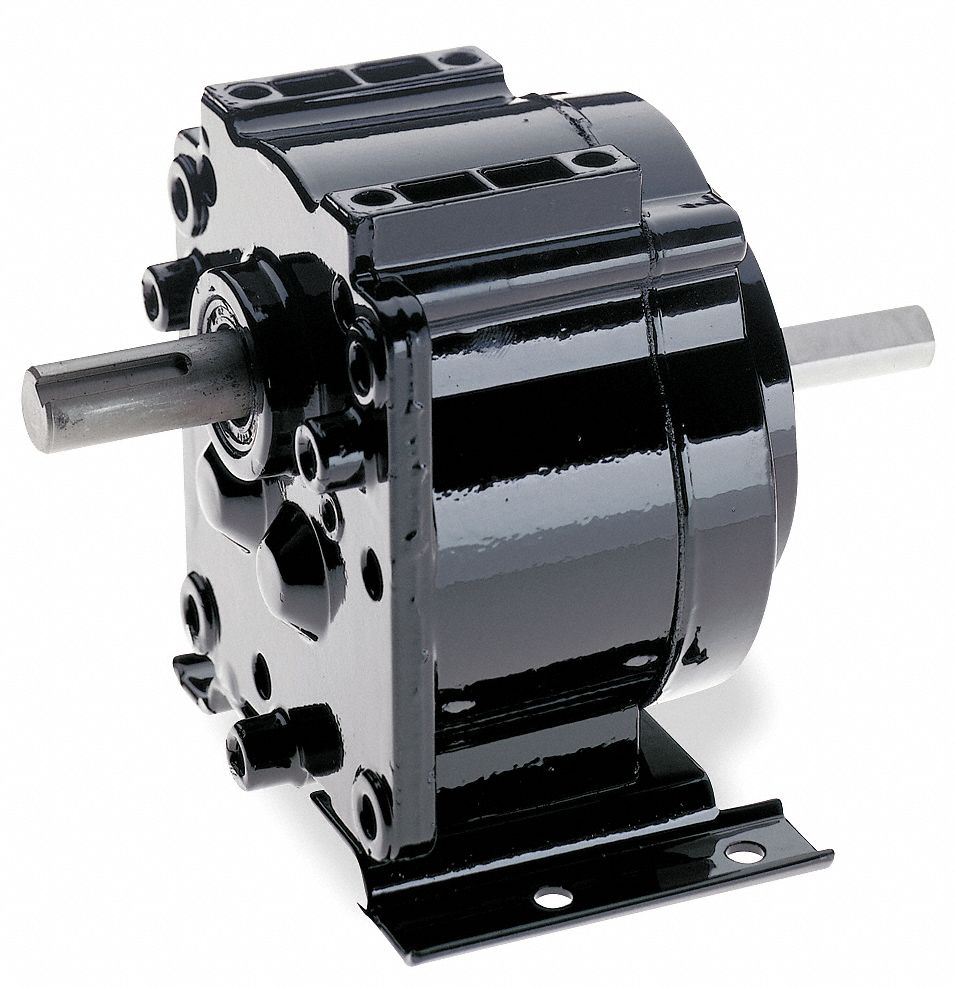

DAYTON Reducer, Speed, 33 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Indirect Drive Parallel Shaft Speed Reducer, Nominal Output Speed 33 RPM, Input RPM 1725-1750, NEMA Frame 42/48, Overhung Load 175 Pounds, Nominal Ratio 52.86:1, Number of Stages 2, Output Torque @ 1/40 HP 44 Inch Pounds, Output Torque @ 1/20 HP 88 Inch Pounds, Output Torque @ 1/12 HP 148 Inch Pounds, Output Torque @ 1/10 HP 175 Inch Pounds, Output Shaft Height 3.50 Inches, Output Shaft Diameter 5/8 Inch

Grainger Item #	2Z820
Price (ea.)	$290.25
Brand	DAYTON
Mfr. Model #	2Z820
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.1
Availability	Typically in Stock
Catalog Page No.	131
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Speed Reducer
Type		Indirect Drive
Shaft Orientation		Parallel
Input RPM		1725
Nominal Output RPM		33
Overhung Load (Lb.)		175
Nominal Ratio		52.9:1
Max. Input HP		1/10
Max. Torque (In.-Lbs.)		175
Output Torque @ 1/40 HP (In.-Lb.)		44
Output Torque @ 1/20 HP (In.-Lb.)		88
Output Torque @ 1/12 HP (In.-Lb.)		148
Output Torque @ 1/10 HP (In.-Lb.)		175
Number of Stages		2
Base		Removable
Mounting		All Position
Lubrication		Heavy Duty Oil
Oil Seal		Spring-Loaded Lip
Bearings		Ball
Pinion		Heat Treated Steel
Gearing		Helical First Stage
Housing		Die Cast Aluminum Gearcase
Finish		Gloss Black Powder Coat
Output Shaft Dia. (In.)		5/8
Output Shaft Height (In.)		3.50
