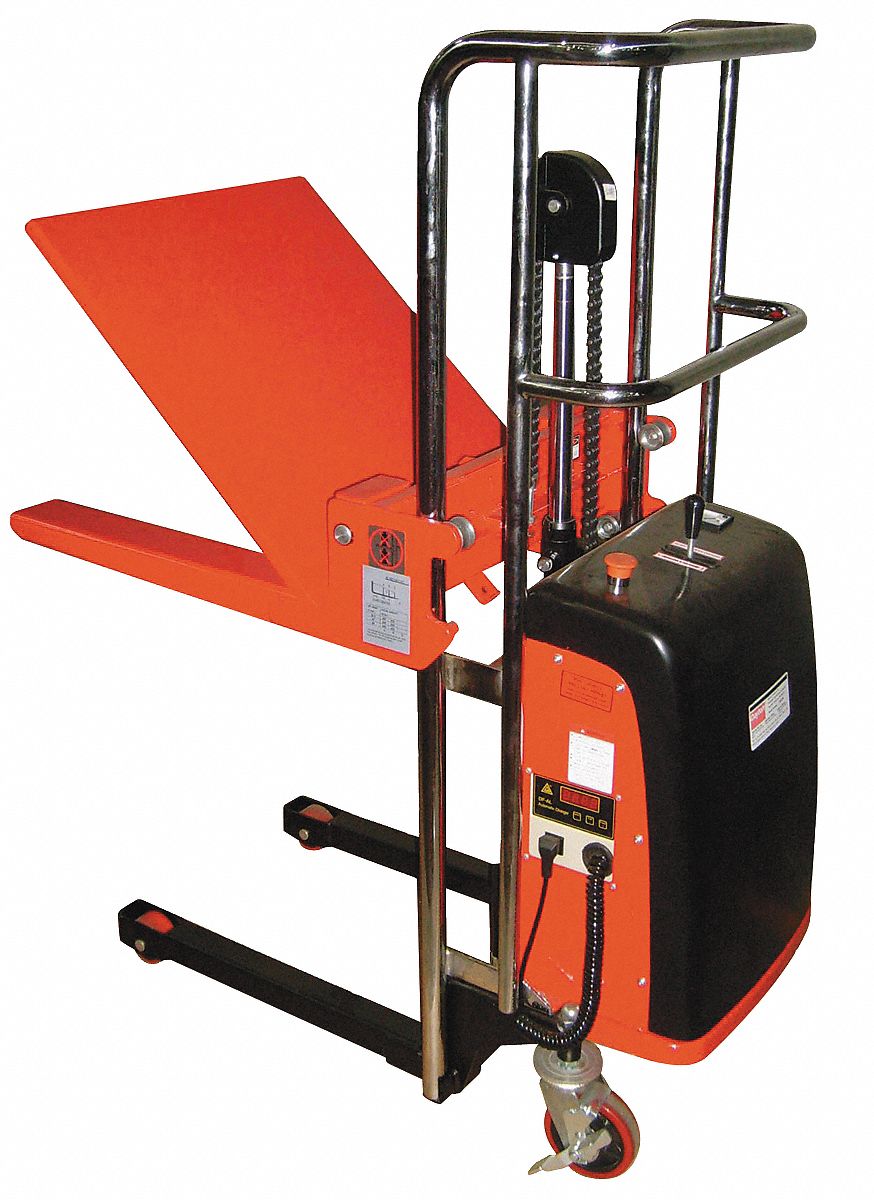

DAYTON Pltfrm Lift, 880 lb. Cap.67-7/8 In H

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hydraulic Platform Lift, Load Capacity 880 lb., Lifting Height Max. 59 In., Lifting Height Min. 3-3/8 In., Platform Length 25-5/8 In., Platform Width 22-3/4 In., Base Legs Inside Dia. 14-3/16 In., Base Legs Outside Dia. 18-1/2 In., Overall Length 43-1/4 In., Overall Width 23-5/16 In., Overall Height 67-7/8 In., Load Center 13-1/2 In., Lift Speed Loaded 14-1/2 sec., Powered By Battery, Lift Speed Unloaded 6-1/2 sec., Frame Material Steel, Caster Wheel Type (2) Swivel, (2) Rigid

Grainger Item #	4ECX5
Price (ea.)	$2,823.00
Brand	DAYTON
Mfr. Model #	4ECX5
UNSPSC #	24101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	255.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	1585
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Hydraulic Platform Lift
Load Capacity		880 lb.
Lifting Height Max.		59"
Lifting Height Min.		3-3/8"
Platform Length		25-5/8"
Platform Width		22-3/4"
Base Legs Inside Dia.		14-3/16"
Base Legs Outside Dia.		18-1/2"
Overall Length		43-1/4"
Overall Width		23-5/16"
Overall Height		67-7/8"
Load Center		13-1/2"
Lift Speed Loaded		14-1/2 sec.
Powered By		Battery
Lift Speed Unloaded		6-1/2 sec.
Fork Length		25-5/8"
Fork Width		4-5/16"
Frame Material		Steel
Front Caster Dia.		4"
Rear Caster Dia.		5"
Front Wheel Dia.		2-7/8"
Caster Wheel Type		(2) Swivel, (2) Rigid
Includes		Adjustable Forks and Platform
