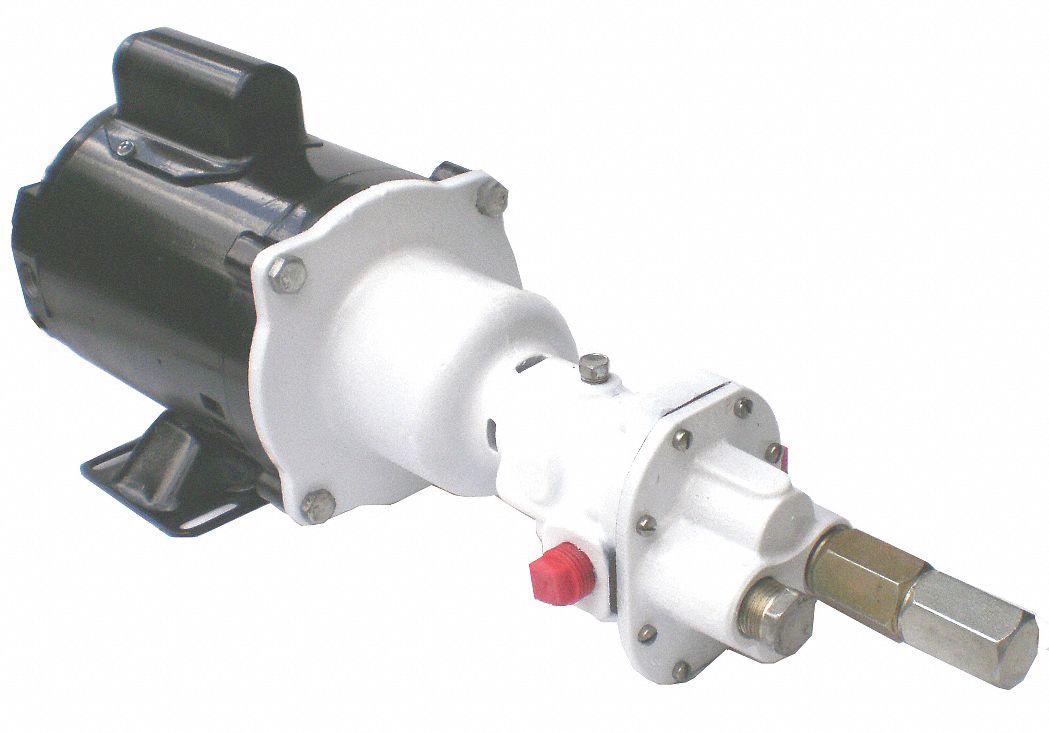

Hot Oil Cooking Pump, Body Material Cast Iron, 1/2 HP, 1 Phase, Voltage 115/230, 7.6/3.8 Amps AC, Motor Frame Carbonator Mount, Motor Enclosure ODP, Port Size 1/2 In., Suction Lift 7.9 Ft., Max. GPM 6.7, Max. Pressure 60 PSI, Relief Valve, Viton Mechanical Seal, Temp. Range 40 to 375 F, 1725 Max. RPM, Max. Viscosity 100 SSU, Viton O-Ring, Manufacturers Warranty Length 6 Months, Agency Compliance CSA US, NSF, Includes Manual

Grainger Item #	6DHJ1
Price (ea.)	$1,045.00
Brand	DAYTON
Mfr. Model #	6DHJ1
UNSPSC #	40151521
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	40.01
Availability	Limited quantity available
Catalog Page No.	4145
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump
Type		With Motor
HP		1/2
Phase		1
Voltage		115/230
Amps		7.6/3.8
Motor Frame		Close-Coupled
Motor Enclosure		ODP
Port Size (In.)		1/2
Suction Lift (Ft.)		7.9
GPM Max.		6.7
Max. Pressure (PSI)		60
Relief Valve		Yes
Seal		Viton Mechanical
Body Material		Cast Iron
Shaft Material		Stainless Steel
Temp. Range		40 to 375 F
Min. Temp. Rating (Deg. F)		40
Max. Temp. (F)		375
Gear Material		Stainless Steel
Max. RPM		1725
Bushing		Carbon/Graphite
Gears		Spur
Length (In.)		6-1/2
Width (In.)		6-1/2
Height (In.)		21
GPM @ Freeflow		6.7
GPM @ 20 PSI		6.3
GPM @ 40 PSI		6.0
GPM @ 50 PSI		5.9
GPM @ 60 PSI		5.8
Max. Viscosity (SSU)		1000
O-Ring		Viton
Manufacturers Warranty Length		1 Year
Agency Compliance		CSA US, NSF
Includes		Extra Mechanical Seal
