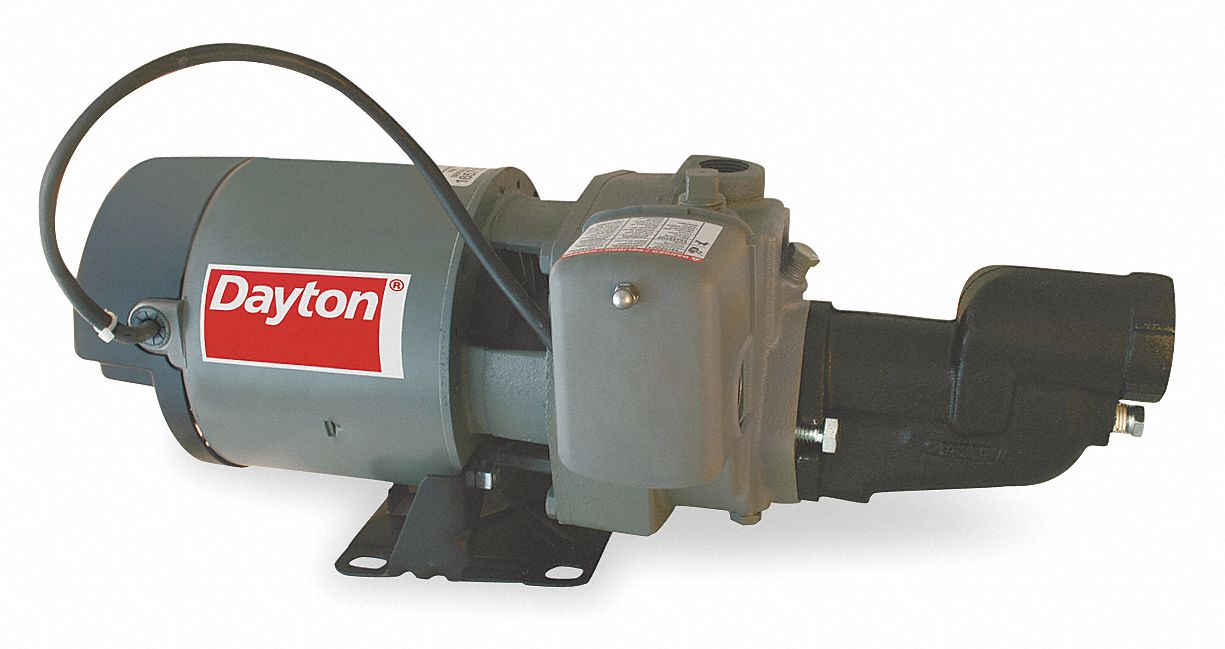

DAYTON Pump, Jet, Shallow Well

High-efficiency Shallow Well Jet Pump, Pump Material Cast-iron, 3/4 HP, Voltage 115/230, 13.0/6.5 Amps AC, NPT Inlet 1 1/4 In., NPT Outlet 3/4, Shut Off 74 PSI, Motor Type Capacitor Start, Max. Operating Temp. 140 F, Length 20 In., Width 9 7/8 In., Height 6 3/4 In.
  • Grainger Item #1D880
    Price (ea.)$417.50
    BrandDAYTON
    Mfr. Model #1D880
    UNSPSC #40151511
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)42.35
    Availability Typically in Stock
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemHigh-efficiency Shallow Well Jet Pump
Pump MaterialCast-iron
HP3/4
Voltage115/230
Tank PSI30 50
GPM of Water @ 5 Ft @ 30, 50 PSI15.7 9.0
GPM of Water @ 10 Ft @ 30, 50 PSI14.3 8.3
GPM of Water @ 15 Ft @ 30, 50 PSI12.3 7.0
GPM of Water @ 20 Ft @ 30, 50 PSI10.0 6.2
GPM of Water @ 25 Ft @ 30, 50 PSI7.5 5.5
Shut Off (PSI)74
Motor TypeCapacitor Start
Max. Operating Temp. (F)140
Length (In.)20
Width (In.)9-7/8
Height (In.)6-3/4
ResistsCorrosion
ApplicationIdeal for Installations with Driven Well Points, Dug Wells, Drilled Wells or Cisterns Where Higher Operating Efficiencies are Desired, for Use When Vertical Distance to Water is Less Than 25 Feet and Installed as a Single Pipe System to the Water Source
Pressure Switch Setting30 to 50 psi
IncludesLarge Cast Iron Housing with Open Case Design, Top Located Priming Ports for Easy Priming, Removable Bolt-on, Cast Iron Ejector with Nozzle Cleanout Port, Air Volume Control Tapping, Impeller, Diffuser, " NPT Drain Plug, Reusable Buna N Internal Seal

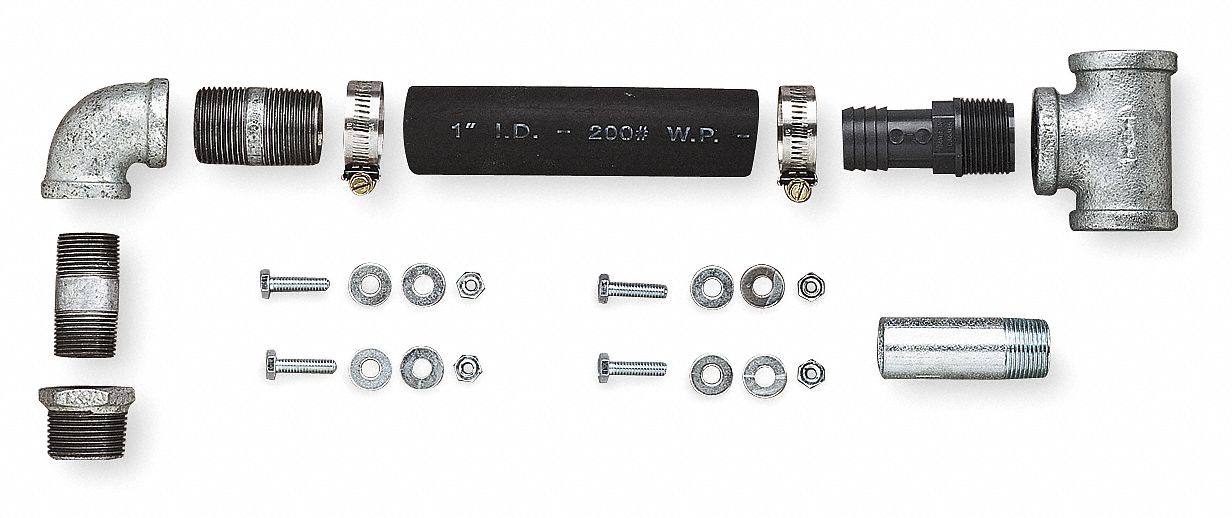

Optional Accessories

More Accessories

Brand:

CAMPBELL

Grainger Item #:

1P978

Price (ea.):

$78.00
