Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

4hp, 1625rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hatcher/Setter Motor, PSC, 1/4 HP, Nameplate RPM 1625, Voltage 208-230, 1 Phase, Frame 48Y, Totally Enclosed Air-Over, Full Load Amps 1.3-1.4, 60/50 Hz, Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CWSE Rotation, Overall Length 7-9/16 In., Shaft Dia. 1/2 In., Shaft Length 1-9/16 In., Frame Material Rolled Steel, Includes Slinger, Gasketed Capacitor Cover

Grainger Item #	1YBA2
Price (ea.)	$273.75
Brand	DAYTON
Mfr. Model #	1YBA2
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	12.17
Availability	Typically in Stock
Catalog Page No.	55
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

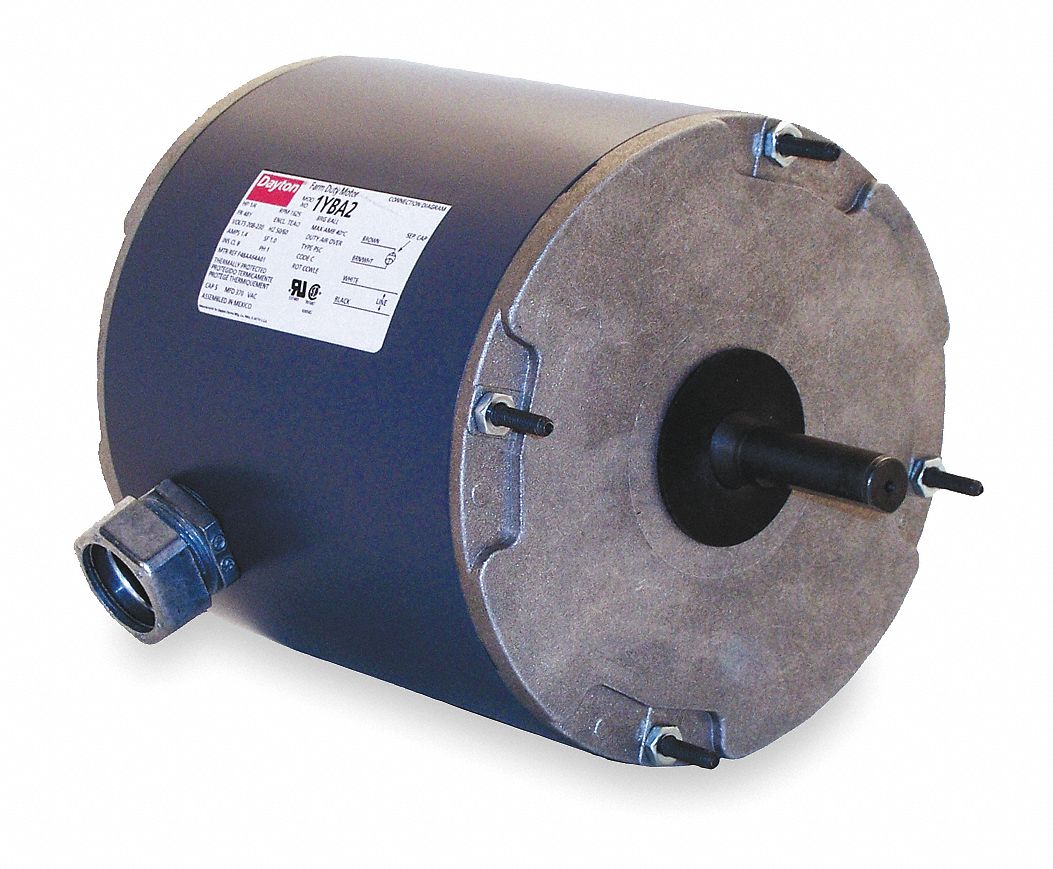

Hatcher/Setr Mtr, PSC, TEAO, 1/4hp, 1625rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hatcher/Setter Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
HP		1/4
Nameplate RPM		1625
NEMA/IEC Frame		48Y
Frame		48Y
Rotation		CWSE
Voltage		208-230
Full Load Amps		1.3-1.4
Phase		1
Hz		60/50
Mounting		Stud
Mounting Position		Horizontal or Vertical
Bearings		Ball
Frame Material		Rolled Steel
Finish		Gray
Thermal Protection		Auto
Service Factor		1.0
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		1/2"
Shaft Length		1-9/16"
Shaft Type		Single Flat
Length Less Shaft		6"
Overall Length		7-9/16"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous
Includes		Slinger, Gasketed Capacitor Cover
Standards		UL Recognized (E47479), CSA Certified (701887)

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Required Accessories

More Accessories

Run Capacitor, 5 MFD, 370 VAC, Oval

Brand:

DAYTON

Grainger Item #:

2MDV4

Price (ea.):

$6.65

Item #	Description	Brand Mfr. Model #	Availability	Price
2MDV4	Run Capacitor, 5 MFD, 370 VAC, Oval >More Details... Country of Origin: China	DAYTON 2MDV4	Typically in Stock	$6.65
