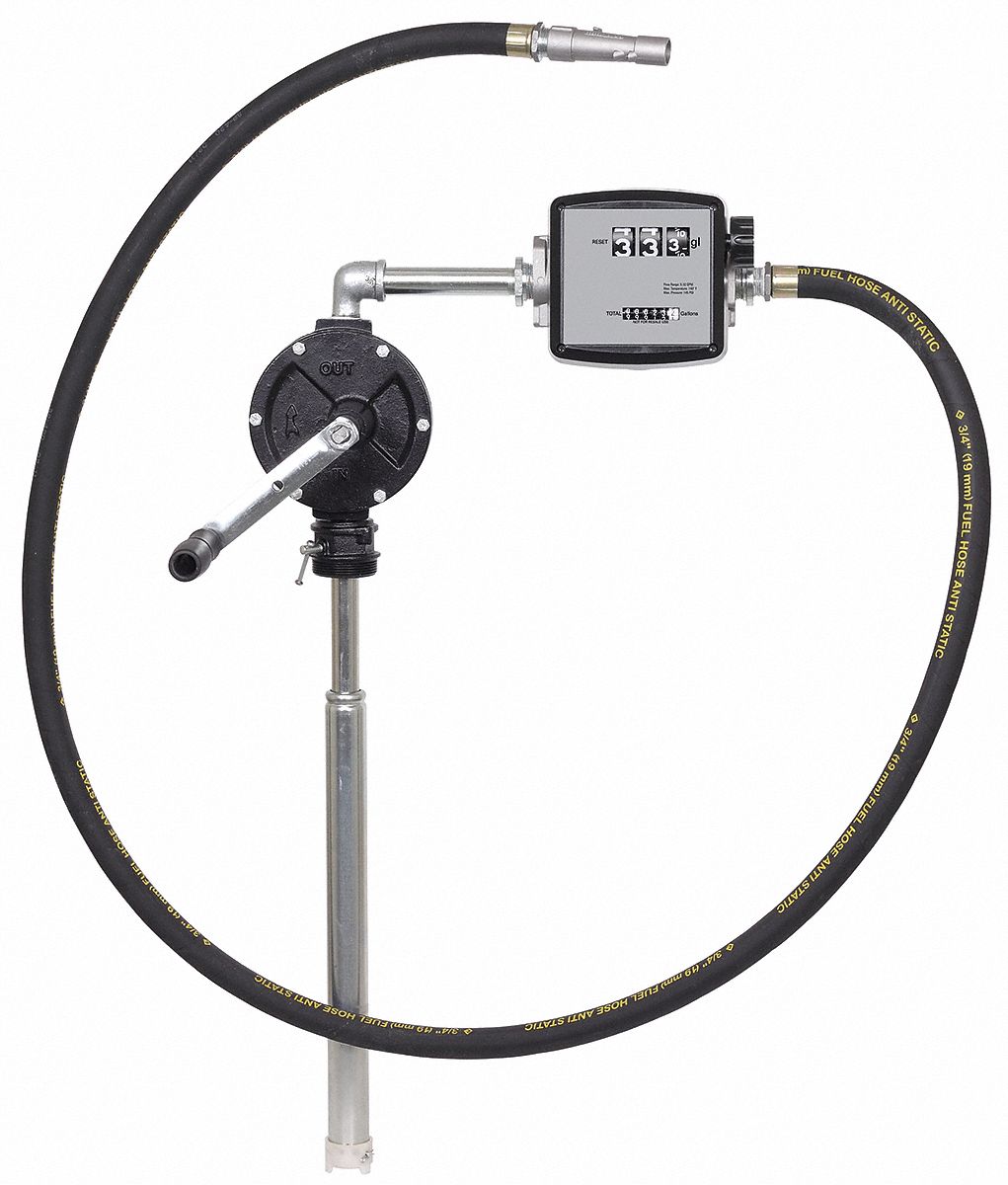

DAYTON Rotary Drum Pump, Cast Iron

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hand Operated Drum Pump, Rotary Action, Pump Body Material Cast Iron, Wetted Materials, Cast Iron, Spring Steel, Graphite, Paper, Polypropylene, Brass, Viton, Stainless Steel, Fiberglass, Max. Head 10 ft., Max. Pressure 10 psi, Max. Temp. 120 Degrees F, Max. Viscosity 2000 SSU, Inlet Size 3/4 In FNPT, Outlet Size 3/4 In FNPT, For Use On 15 to 55 gal. Drums

Grainger Item #	6HKV4
Price (ea.)	$673.50
Brand	DAYTON
Mfr. Model #	6HKV4
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.25
Availability	Item ships within 4 business days from supplier
Catalog Page No.	4094
Country of Origin (Country of Origin is subject to change.)	India
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Hand Operated Drum Pump
Type		Rotary Action, Metered
RPM		120
Pump Body Material		Cast Iron
Wetted Materials		Cast Iron, Spring Steel, Graphite, Paper, Polypropylene, Aluminum , Buthil Tereftalat
Seal Material		Graphite
Gasket Material		Paper
Discharge Tubing Material		Zinc Plated Steel, Neoprene Rubber
For Use On		15 to 55 gal. Drums
GPM		10 @ 120 RPM
Maximum Head		10 ft.
Max. Pressure		10 psi
Max. Temp.		120 Degrees F
Max. Viscosity		2000 SSU
Max. GPM for Oil		7
Inlet Size		3/4" FNPT
Outlet Size		3/4" FNPT
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1-1/8"
Discharge Tube Length		96"
Suction Tube Length		18-3/16" to 34-1/2"
Suction Tube Outlet OD Size		1"
Suction Tube Type		Telescopic
Overall Length		22"
Metered		Yes
Adapter Type		2" Bung
Adapter Material		Cast Iron
Special Features		3 Vein Construction Pump With Self Lubricating Graphite Veins And Seals. Pump Fitted With Mechanical Meter That Can Be Installed Horizontally Or Vertically
Application		Dispensing Diesel Fuel And Light Oils
Manufacturers Warranty Length		1 Year
Includes		Suction Tube With Filter Screen, Discharge Spout, Discharge Hose, Nozzle, Mechanical Flow Meter, Connecting Tube For Flowmeter
