Pumps
>
Drum and Barrel Pumps
>
Drum Pumps

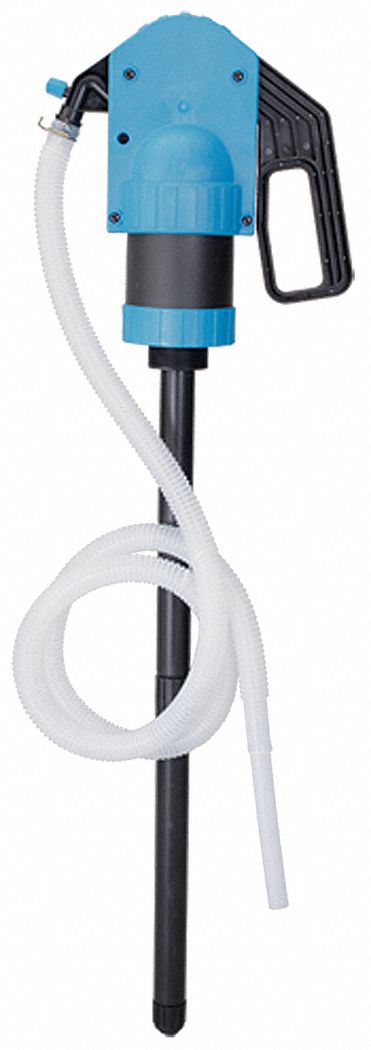

DAYTON Drum Pump, Lever, 17 Oz Per Stroke

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hand Operated Drum Pump, Lever Action, Pump Body Material Polyacetal, Wetted Materials Polyacetal, Polypropylene, Poyethylene, Viton, Max. Head 6 ft., Max. Pressure 10 psi, Max. Temp. 113 Degrees F, Max. Viscosity 1000 SSU, Inlet Size 3/4 In FNPT, Outlet Size 3/4 In HB, For Use On 15 - 55 gal. Drums

Grainger Item #	5UWG7
Price (ea.)	$104.90
Brand	DAYTON
Mfr. Model #	5UWG7
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.75
Availability	Typically in Stock
Catalog Page No.	4102
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hand Operated Drum Pump
Type		Lever Action
Pump Body Material		Polyacetal
Wetted Materials		Polyacetal, Polypropylene, Poyethylene, Viton
Seal Material		Viton
Gasket Material		Polyacetal
Discharge Tubing Material		Polyethylene
Piston		Polyacetal
For Use On		15 - 55 gal. Drums
Maximum Head		6 ft.
Max. Pressure		10 psi
Max. Temp.		113 Degrees F
Ounces per Stroke		17
Max. Viscosity		1000 SSU
Inlet Size		3/4 In FNPT
Outlet Size		3/4 In HB
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1-3/64"
Discharge Tube Length		78-3/4"
Suction Tube Length		13-3/4" to 38-1/2"
Suction Tube Outlet OD Size		1-1/8"
Suction Tube Type		Telescopic
Overall Length		13"
Metered		No
Adapter Type		2 In Bung Built Into Pump Complete With Lock Nut
Adapter Material		Polyacetal
Special Features		Built-In Lock Nut For Positioning Pump Outlet In Any Direction. Pump Outlet Has Air Vent For Stopping Siphon Action.
Application		Water Based Media, Detergents, Soaps, Antifreeze, Windshield Wash, Hydraulic Oils, Lubricants, Herbicides, Pesticides and Dielectric Fluid
Manufacturers Warranty Length		1 Year
Includes		Telescopic Suction Tube and Discharge Hose
