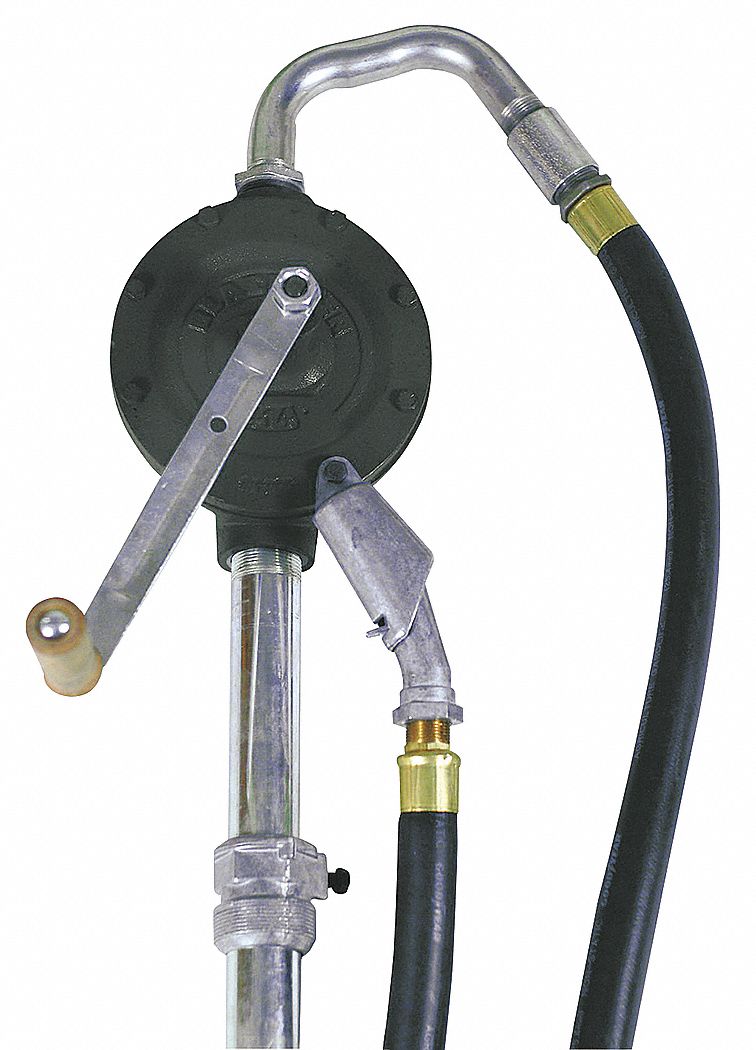

DAYTON Drum Pump, Discharge Tube 103 In. L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hand Operated Drum Pump, Rotary Action, Pump Body Material Cast Iron, Wetted Materials Cast Iron, Zinc Alloy, Carbon, Rubber and Steel, Max. Pressure 20 psi, Max. Temp. 140 Degrees F, Max. Viscosity 10, 000 SSU, Inlet Size 1 1/2 FNPT, Outlet Size 1-1/4 In FNPT, For Use On 16 - 55 Gal. Drums,

Grainger Item #	4VCR8
Price (ea.)	$441.25
Brand	DAYTON
Mfr. Model #	4VCR8
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	35.97
Availability	Typically in Stock
Catalog Page No.	4094
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hand Operated Drum Pump
Type		Rotary Action
Pump Body Material		Cast Iron
Wetted Materials		Cast Iron, Zinc Alloy, Carbon, Rubber and Steel
Seal Material		NBR
Gasket Material		Fiber
Discharge Tubing Material		Zinc Plated Steel
For Use On		16 - 55 Gal. Drums
GPM		14
Max. Pressure		20 psi
Max. Temp.		140 Degrees F
Max. Viscosity		10,000 SSU
Max. GPM for Oil		12
Max. GPM for Water		14
Inlet Size		1 1/2 FNPT
Outlet Size		1-1/4" FNPT
Discharge Tube Outlet ID Size		1-1/8"
Discharge Tube Outlet OD Size		1-1/4"
Discharge Tube Length		103"
Suction Tube Length		39"
Suction Tube Outlet OD Size		1-3/8"
Overall Length		51-1/2"
Metered		No
Adapter Type		2" Bung
Adapter Material		Zinc Alloy
Application		Liquid Transfer
Includes		Pump, Handle, Bung Adapter, Spout, 7 Ft. Rubber Hose, 7" Disharge Nozzle
