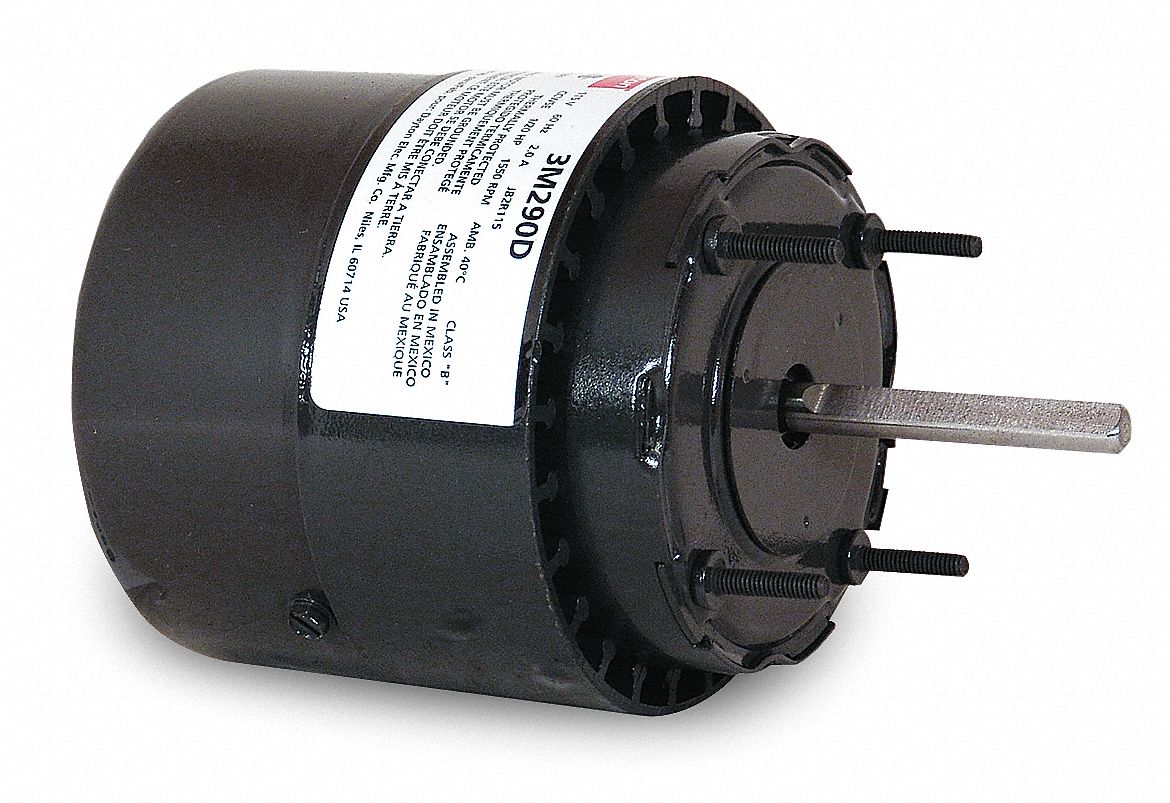

DAYTON HVAC Motor, 2A, Sleeve, 2 In. L, Stud

HVAC Motor, Shaded Pole, Totally Enclosed Fan-Cooled1/20 HP, 1550 Nameplate RPM, 115 Voltage, Nonstandard NEMA/IEC Frame, Service Factor 1.0, Full Load Amps 2, 60 Hz, Rotation CW, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Sleeve Bearings, Thermal Protection Auto, Body Dia. 4 In., Shaft Dia. 5/16 In., Shaft Length 2 In., 4-3/8 In., 4/SE, 2 x 2 In., 1
  • Grainger Item #5K001
    Price (ea.)$97.35
    BrandDAYTON
    Mfr. Model #5K001
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)4.9
    Availability Typically in Stock
    Catalog Page No.60
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemHVAC Motor
Motor TypeShaded Pole
EnclosureTotally Enclosed Fan-Cooled
HP1/20
Nameplate RPM1550
Voltage115
NEMA/IEC FrameNonstandard
FrameNonstandard
Service Factor1.0
Full Load Amps2
Hz60
RotationCW
Insulation ClassB
Max. Ambient Temp.40 Degrees C
Number of Speeds1
MountingStud
BearingsSleeve
Thermal ProtectionAuto
Body Dia.4"
Shaft Dia.5/16"
Shaft Length2"
Length Less Shaft4-3/8"
Stud Location4/SE
Stud/Base Mtg. Pattern2 x 2"
Phase1
RPM Range1400-1800

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="HVAC Motor, 2A, Sleeve, 2 In. L, Stud" /> <div id="BVRRContentValidationID_5K001"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-24" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="HVAC Motor, 2A, Sleeve, 2 In. L, Stud" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_5K001"><div id='7338631' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="HVAC Motor, 2A, Sleeve, 2 In. L, Stud" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">boilerbob</span><span itemprop="name"> Outstanding Performance</span><span itemprop="description"> This motor runs 24/7 on a boiler chemical mixer. Stays cool even on the hottest of days.</span> July 10, 2012<meta itemprop="datePublished" content="2012-07-10" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_5K001').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>
