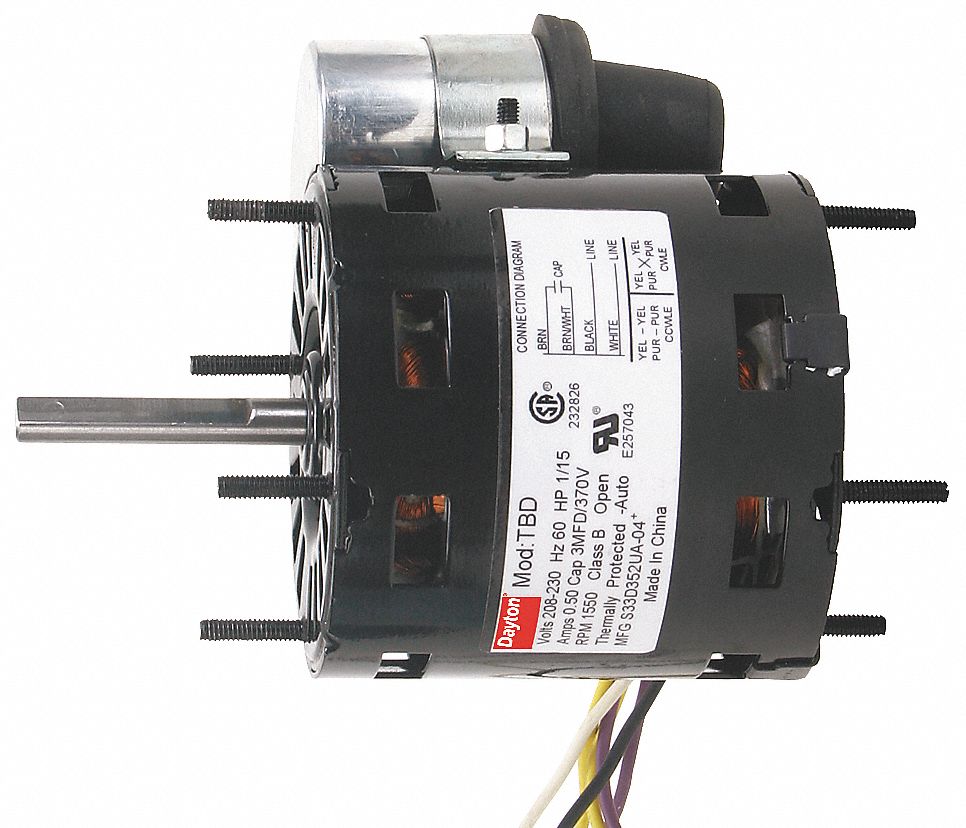

DAYTON HVAC Motor, 1550 rpm, 208-230V, 1/15 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

HVAC Motor, PSC, Totally Enclosed Air-Over, Continuous, 1/15 HP, 1550 Nameplate RPM, 208-230 Voltage, Nonstandard NEMA/IEC Frame, Service Factor 1.0, Full Load Amps 0.5-0.45, 60/50 Hz, Rotation CW/CCW, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Ball Bearings, Thermal Protection Auto, Body Dia. 3.3 In., Shaft Dia. 5/16 In., Shaft Length 2-1/2 In., 3-1/4 In., 4/BE, 2 x 2 In., 1, Flat

Grainger Item #	3RCY3
Price (ea.)	$97.65
Brand	DAYTON
Mfr. Model #	3RCY3
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.96
Availability	Typically in Stock
Catalog Page No.	61
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		HVAC Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
Duty		Continuous
HP		1/15
Nameplate RPM		1550
Voltage		208-230
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Service Factor		1.0
Full Load Amps		0.5-0.45
Hz		60/50
Rotation		CW/CCW
Insulation Class		B
Max. Ambient Temp.		40 Degrees C
Number of Speeds		1
Mounting		Stud
Bearings		Ball
Thermal Protection		Auto
Body Dia.		3.3"
Shaft Dia.		5/16"
Shaft Length		2-1/2"
Length Less Shaft		3-1/4"
Stud Location		4/BE
Stud/Base Mtg. Pattern		2 x 2"
Phase		1
Shaft Type		Flat
Application		Replaces 1/15 HP PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
RPM Range		1400-1800
Includes		3 MFD 370 VAC Capacitor
Standards		UL Recognized (E47479), CSA Certified (227508)
Mounting Pattern		2 x 2
