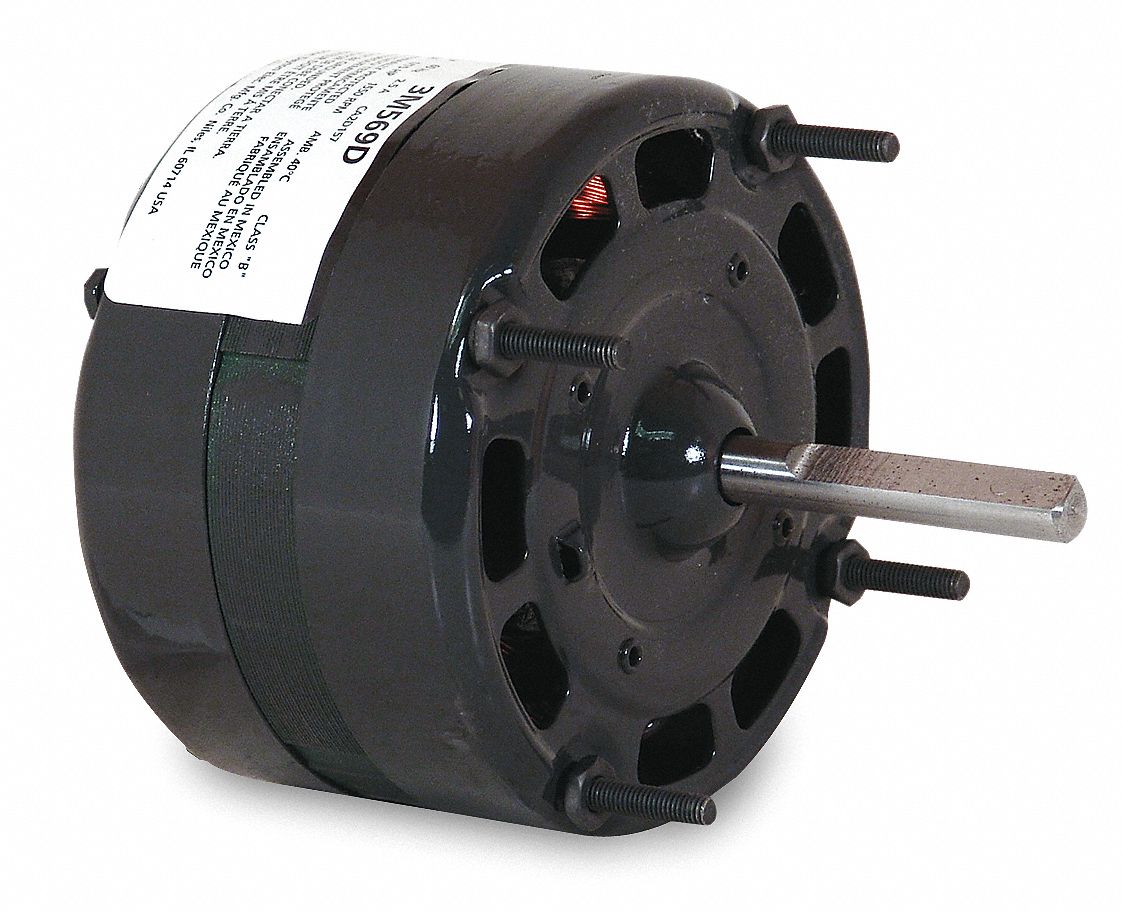

DAYTON HVAC Motor, 1/20 HP, 1550 rpm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

HVAC Motor, Shaded Pole, Totally Enclosed Air-Over, 1/20 HP, Nameplate RPM 1550, Number of Speeds 1, NEMA/IEC Frame Nonstandard, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 1.9, Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW, Length Less Shaft 4-7/16 In., Shaft Dia. 3/8 In., Shaft Length 2 In., Body Dia. 4.4 In., Stud/Base Mtg. Pattern 2-3/4 x 2-3/4 In.Duty Continuous Air Over

Grainger Item #	3M567
Price (ea.)	$100.90
Brand	DAYTON
Mfr. Model #	3M567
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.85
Availability	Typically in Stock
Catalog Page No.	62
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		HVAC Motor
Motor Type		Shaded Pole
Enclosure		Totally Enclosed Air-Over
HP		1/20
Nameplate RPM		1550
Number of Speeds		1
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		115
Hz		60
Phase		1
Full Load Amps		1.9
Mounting		Stud
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Bearings		Sleeve
Max. Ambient Temp.		40 Degrees C
Rotation		CW
Length Less Shaft		4-7/16"
Shaft Dia.		3/8"
Shaft Length		2"
Body Dia.		4.4"
Stud/Base Mtg. Pattern		2-3/4 x 2-3/4"
Duty		Continuous Air Over
RPM Range		1400-1800
Standards		UL Recognized (E37403), CSA Certified (701887)
