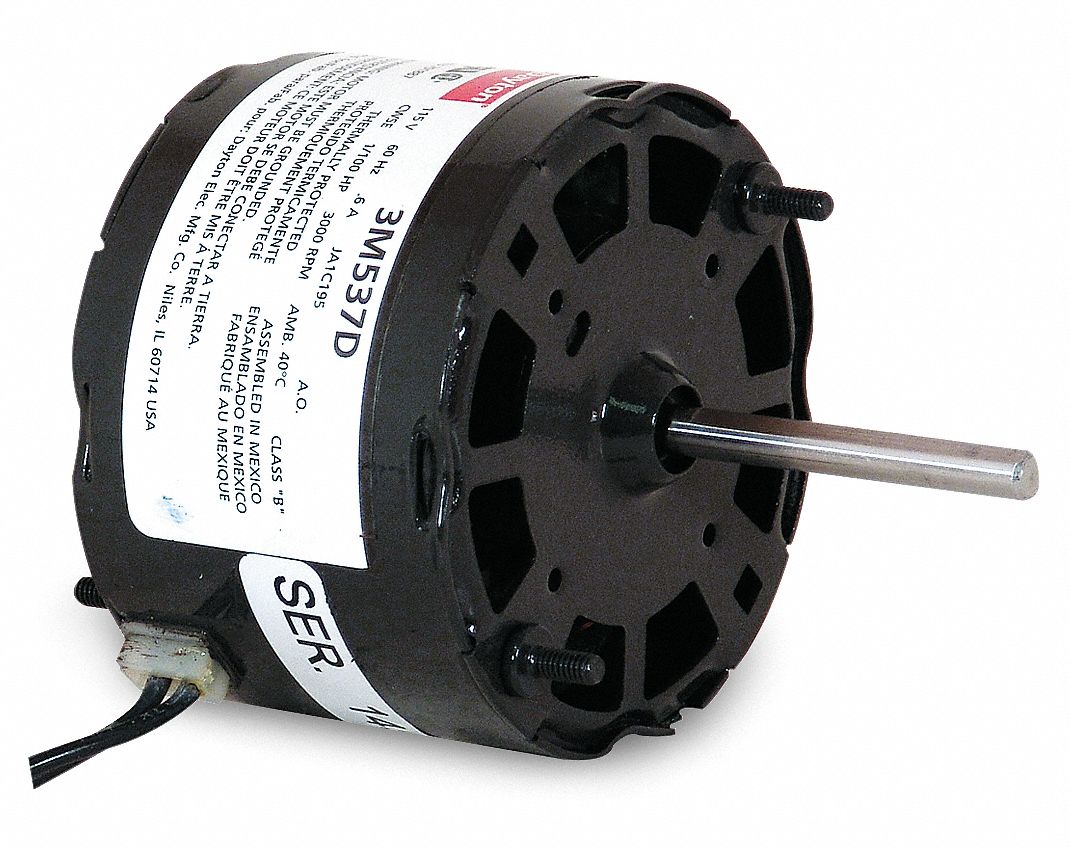

DAYTON HVAC Motor, 0.7A, Sleeve, Auto, 2 In. L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

HVAC Motor, Shaded Pole, Open Air-Over, Continuous, 1/100 HP, 1550 Nameplate RPM, 115 Voltage, Nonstandard NEMA/IEC Frame, Service Factor 1.0, Full Load Amps 0.7, 60 Hz, Rotation CCW, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Sleeve Bearings, Thermal Protection Auto, Body Dia. 3.3 In., Shaft Dia. 1/4 In., Shaft Length 2 In., 2-9/16 In., SE11

Grainger Item #	3M535
Price (ea.)	$47.15
Brand	DAYTON
Mfr. Model #	3M535
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.05
Availability	Typically in Stock
Catalog Page No.	60
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		HVAC Motor
Motor Type		Shaded Pole
Enclosure		Open Air-Over
Duty		Continuous
HP		1/100
Nameplate RPM		1550
Voltage		115
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Service Factor		1.0
Full Load Amps		0.7
Hz		60
Rotation		CCW
Insulation Class		B
Max. Ambient Temp.		40 Degrees C
Number of Speeds		1
Mounting		Stud
Bearings		Sleeve
Thermal Protection		Auto
Body Dia.		3.3"
Shaft Dia.		1/4"
Shaft Length		2"
Length Less Shaft		2-9/16"
Stud Location		SE
Phase		1
RPM Range		1400-1800
Mounting Pattern		1
