Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

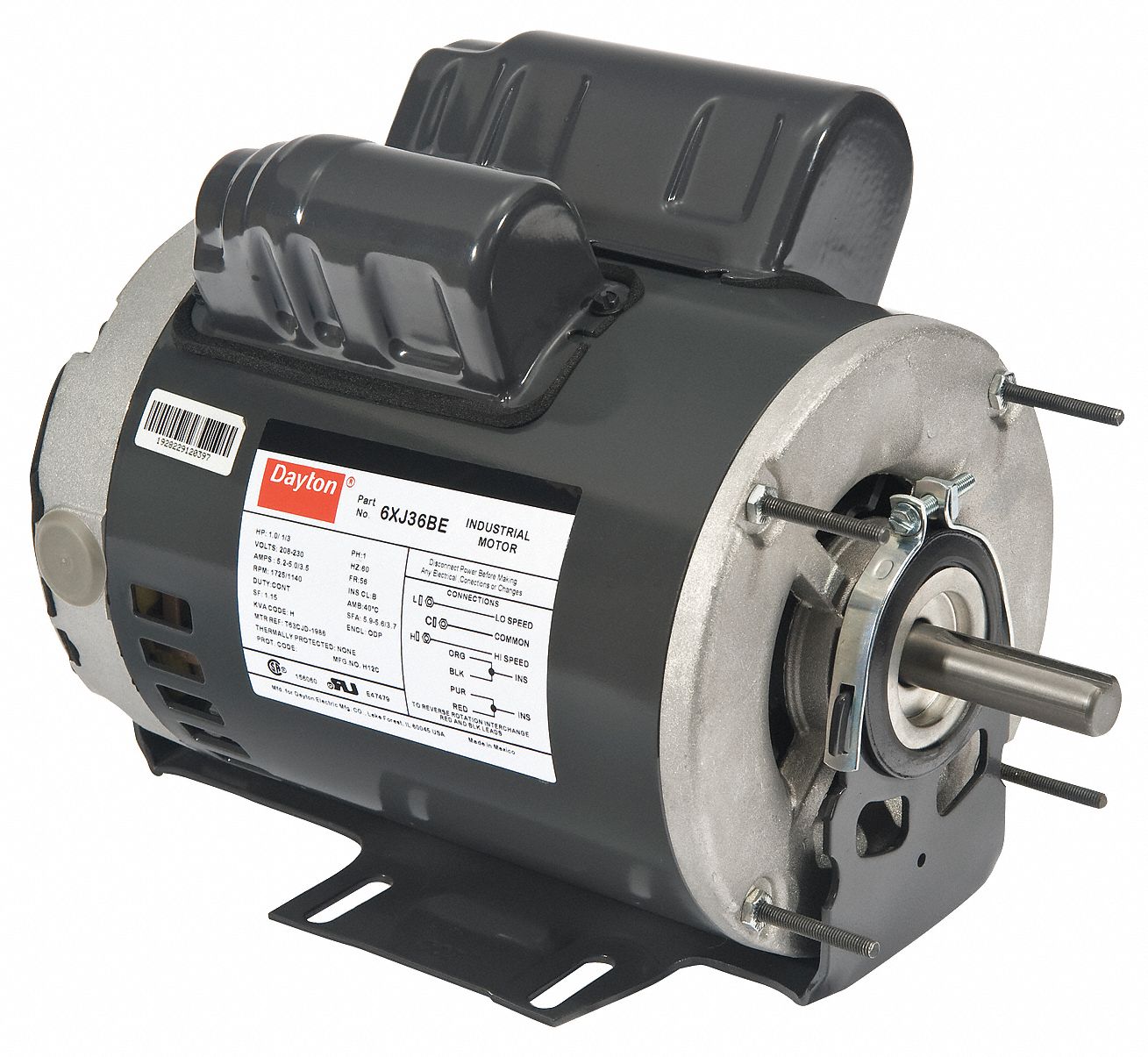

DAYTON GP Mtr, CSCR, ODP, 1 HP, 1725 rpm, 56

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Capacitor-Start, 1, 1/3 HP, Nameplate RPM 1725/1140, Voltage 115, 56 Frame, Open Dripproof, Number of Speeds 2, Full Load Amps 10.1/7.1, 60 Hz, Cradle/Stud Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 11-13/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	6XJ34
Price (ea.)	$416.75
Brand	DAYTON
Mfr. Model #	6XJ34
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.5
Availability	Typically in Stock
Catalog Page No.	10
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1, 1/3
Nameplate RPM		1725/1140
NEMA/IEC Frame		56
Frame		56
Voltage		115
Hz		60
Phase		1
Full Load Amps		10.1/7.1
Number of Speeds		2
Mounting		Cradle/Stud
Thermal Protection		None
Insulation Class		B
Service Factor		1.15
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Overall Length		11-13/16"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized (E47479), CSA Certified (156060)
Duty		Continuous
Nominal Efficiency		74.4%
Warranty (Years)		1
Footnotes		24,41
