Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

DAYTON GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48Z

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Split-Phase, 0 HP, Nameplate RPM 1725, Voltage 115, 48Z Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 5.3, 60 Hz, Cradle/Stud Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.35, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 9-5/16 In., Shaft Dia. 1/2 In., Shaft Length 1-7/8 In.

Grainger Item #	6XH65
Price (ea.)	$148.65
Brand	DAYTON
Mfr. Model #	6XH65
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.75
Availability	Typically in Stock
Catalog Page No.	8
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

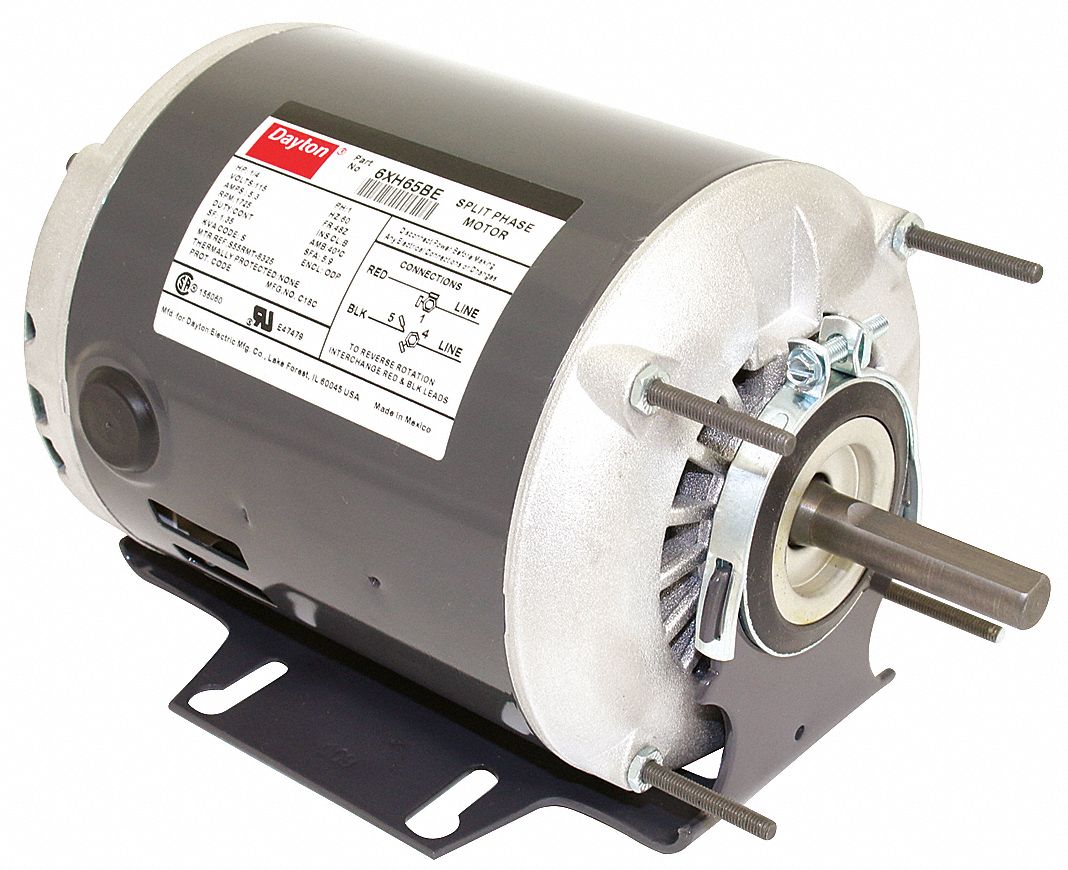

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48Z

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Split-Phase
Enclosure		Open Dripproof
HP		0
Nameplate RPM		1725
NEMA/IEC Frame		48Z
Frame		48Z
Voltage		115
Hz		60
Phase		1
Full Load Amps		5.3
Number of Speeds		1
Mounting		Cradle/Stud
Thermal Protection		None
Insulation Class		B
Service Factor		1.35
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-7/8"
Overall Length		9-5/16"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized (E47479), CSA Certified (156060)
Duty		Continuous
Warranty (Years)		1
Footnotes		39
