DAYTON GP Mtr, Split Ph, ODP, 1/3 HP, 1140 rpm, 56CZ

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Split-Phase, 1/3 HP, Nameplate RPM 1140, Voltage 115, 56CZ Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 7.4, 60 Hz, Face Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.35Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 5/8 In., Shaft Length 2-7/16 In.

Grainger Item #	6XH51
Price (ea.)	$361.50
Brand	DAYTON
Mfr. Model #	6XH51
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	23.0
Availability	Typically in Stock
Catalog Page No.	80
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

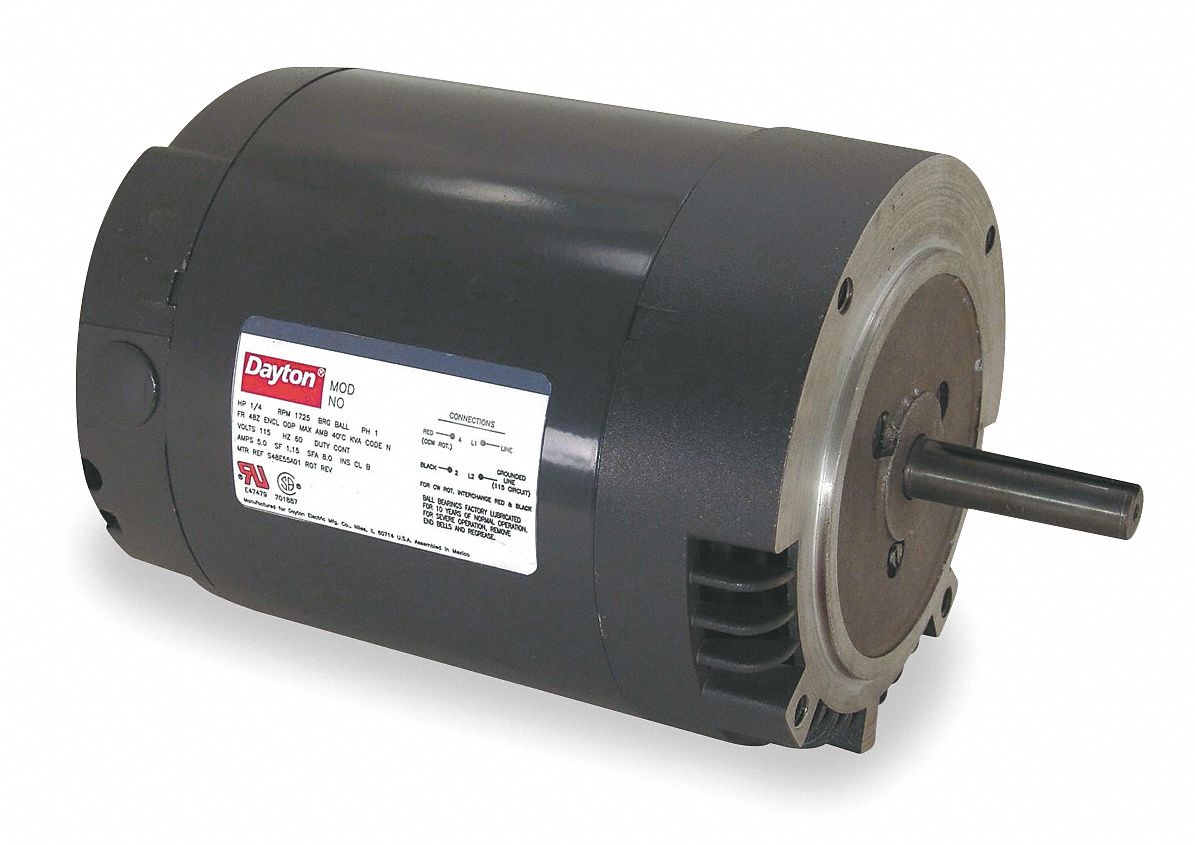

GP Mtr, Split Ph, ODP, 1/3 HP, 1140 rpm, 56CZ

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Split-Phase
Enclosure		Open Dripproof
HP		1/3
Nameplate RPM		1140
NEMA/IEC Frame		56CZ
Frame		56CZ
Voltage		115
Hz		60
Phase		1
Full Load Amps		7.4
Number of Speeds		1
Mounting		Face
Thermal Protection		None
Insulation Class		B
Service Factor		1.35
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		2-7/16"
Shaft Type		Keyed
RPM Range		1000-1380
Duty		Continuous
Warranty (Years)		1
