Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

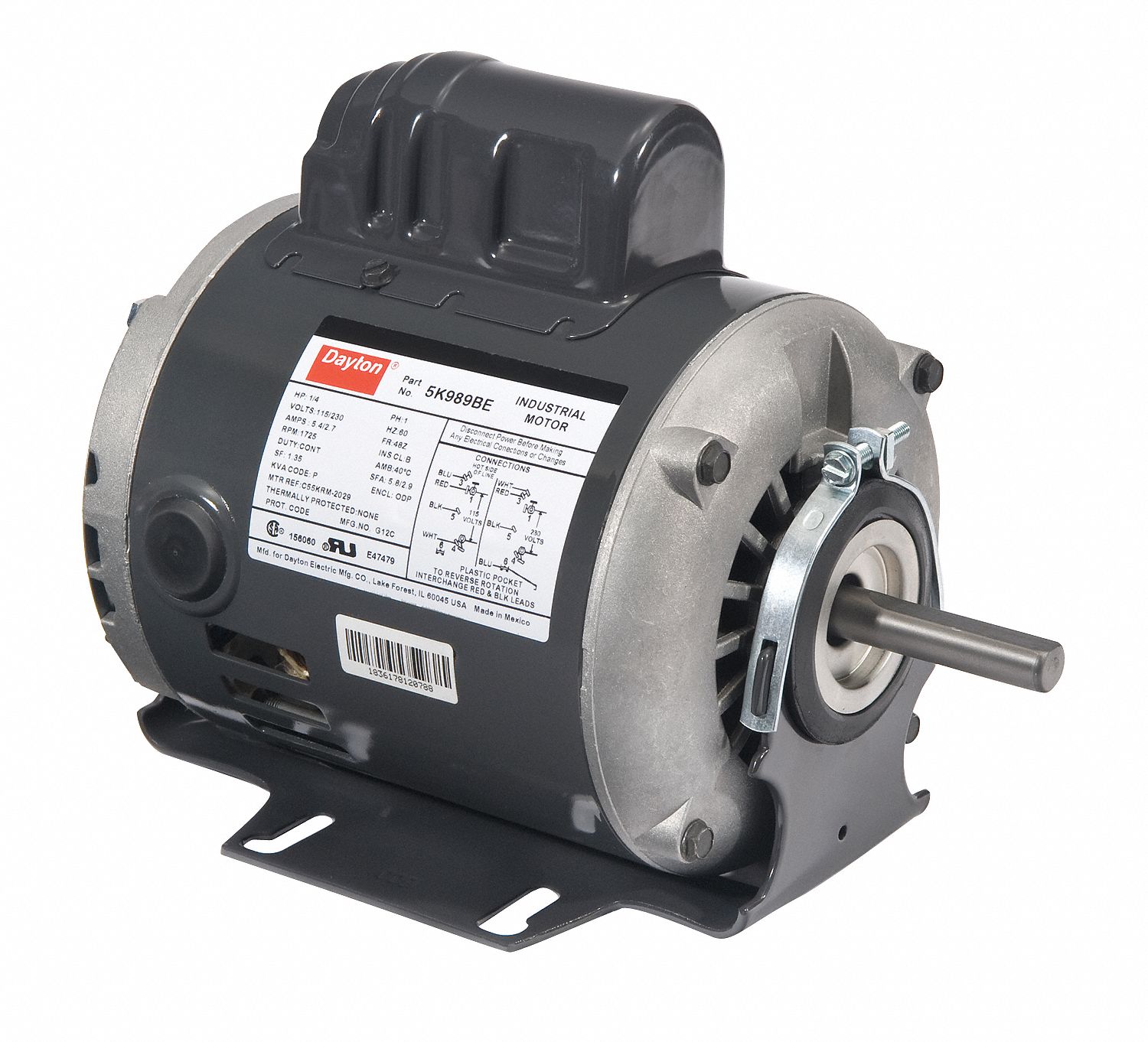

DAYTON GP Mtr, CS, ODP, 1/3 HP, 1725 rpm, 48Z

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Capacitor-Start, 1/3 HP, Nameplate RPM 1725, Voltage 115/230, 48Z Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 5.4/2.7, 60/50 Hz, Cradle Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.35, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 10-13/16 In., Shaft Dia. 1/2 In., Shaft Length 1-1/2 In.

Grainger Item #	6K927
Price (ea.)	$239.50
Brand	DAYTON
Mfr. Model #	6K927
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	20.95
Availability	Typically in Stock
Catalog Page No.	10
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		48Z
Frame		48Z
Voltage		115/230
Hz		60/50
Phase		1
Full Load Amps		5.4/2.7
Number of Speeds		1
Mounting		Cradle
Thermal Protection		None
Insulation Class		B
Service Factor		1.35
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Overall Length		10-13/16"
Shaft Type		Flat
RPM Range		1400-1800
Standards		UL Recognized (E47479), CSA Certified (156060)
Duty		Continuous
Nominal Efficiency		62.8%
Warranty (Years)		1
Footnotes		31
