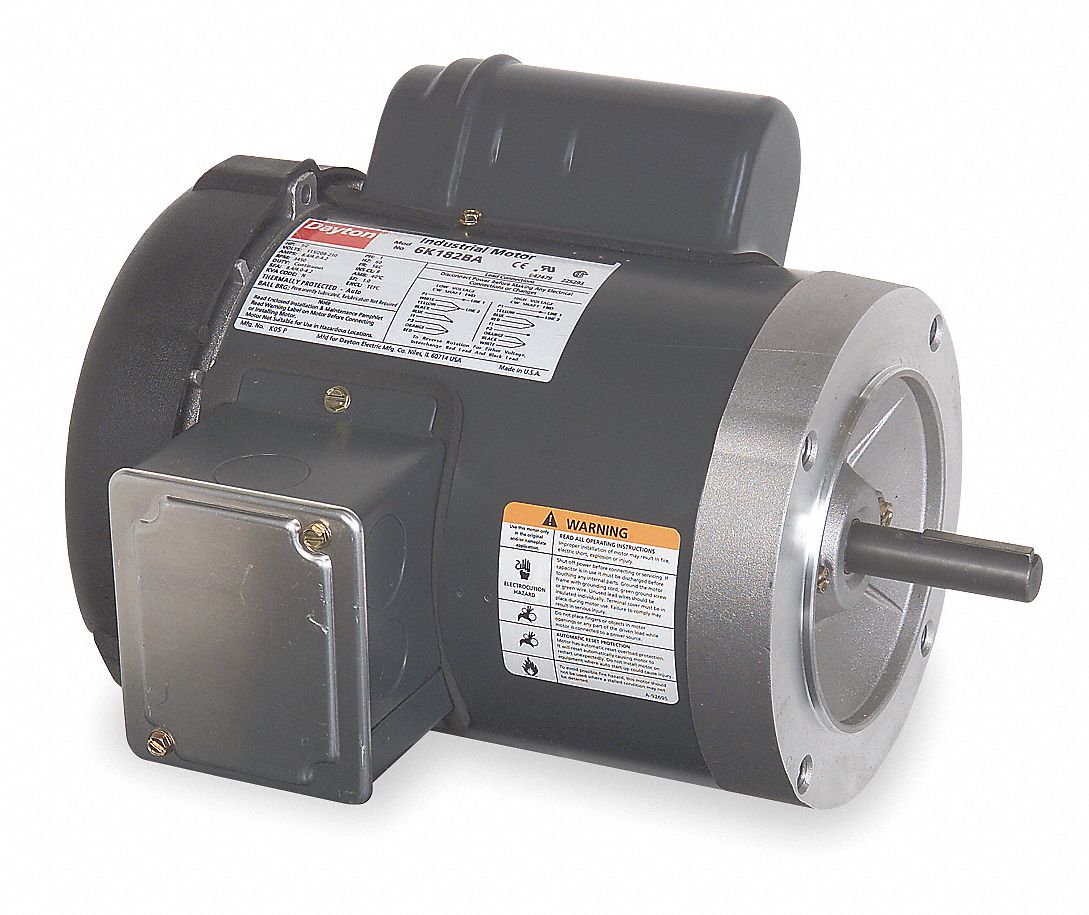

DAYTON GP Mtr, CS, TEFC, 1 HP, 3450 rpm, 56C

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Capacitor-Start, 1 HP, Nameplate RPM 3450, Voltage 115/208-230, 56C Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 11.8/6.3-5.9, 60 Hz, Face Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	6K197
Price (ea.)	$310.00
Brand	DAYTON
Mfr. Model #	6K197
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	28.4
Availability	Typically in Stock
Catalog Page No.	12
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		3450
NEMA/IEC Frame		56C
Frame		56C
Voltage		115/208-230
Hz		60
Phase		1
Full Load Amps		11.8/6.3-5.9
Number of Speeds		1
Mounting		Face
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Shaft Type		Keyed
RPM Range		2350-3600
Duty		Continuous
Warranty (Years)		1
Footnotes		51
