Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

DAYTON Motor, 3 Ph, 3 HP, 3465, 230/460V, Eff 85.5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 3 HP, Nameplate RPM 3485, Voltage 208-230/460, 145TC Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 8.1-7.5/3.8, 60 Hz, Face Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 13-7/8 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	4THY6
Price (ea.)	$448.00
Brand	DAYTON
Mfr. Model #	4THY6
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	46.27
Availability	Typically in Stock
Catalog Page No.	19
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

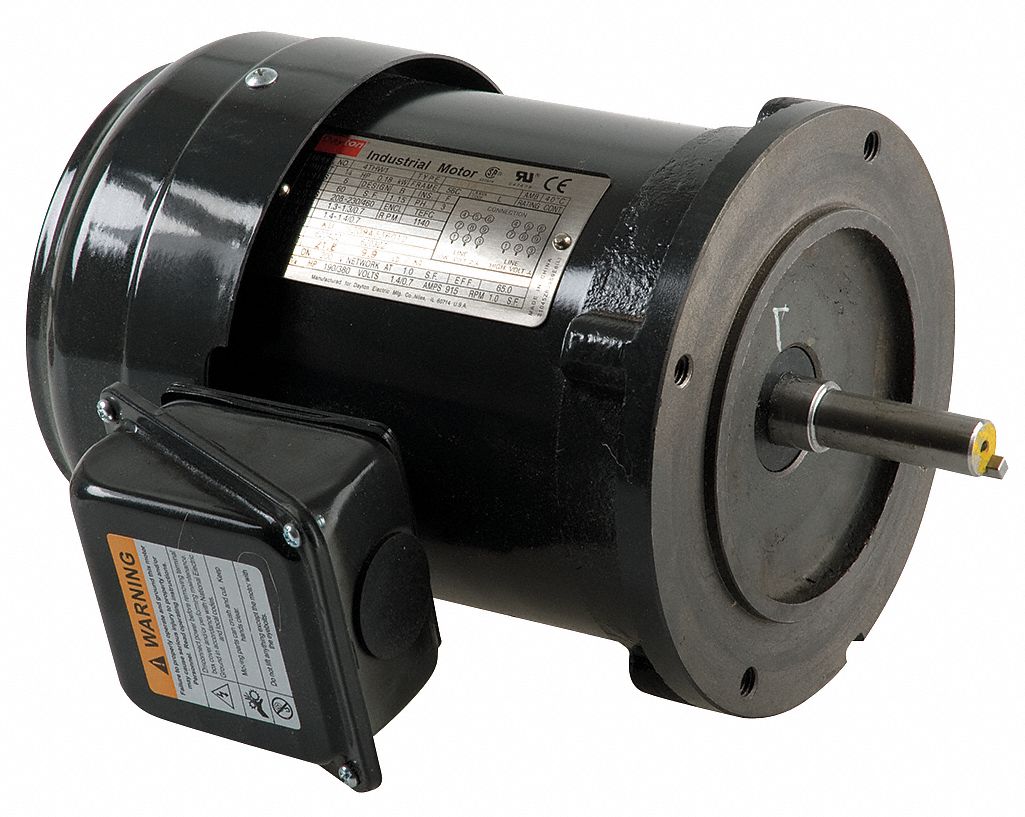

Motor, 3 Ph, 3 HP, 3465, 230/460V, Eff 85.5

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		3
Nameplate RPM		3485
NEMA/IEC Frame		145TC
Frame		145TC
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		8.1-7.5/3.8
Number of Speeds		1
Mounting		Face
Mounting Position		Horizontal/Vertical
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		11-5/8"
Overall Length		13-7/8"
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		85.5
Inverter Rated		Yes
Warranty (Years)		1
Footnotes		2,10
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	4TJA9	Mtr, 3 Ph, 3 HP, 3480, 208-230/460V, Eff 86.5 >More Details... Country of Origin: China	DAYTON 4TJA9	Typically in Stock	$540.50
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
