Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

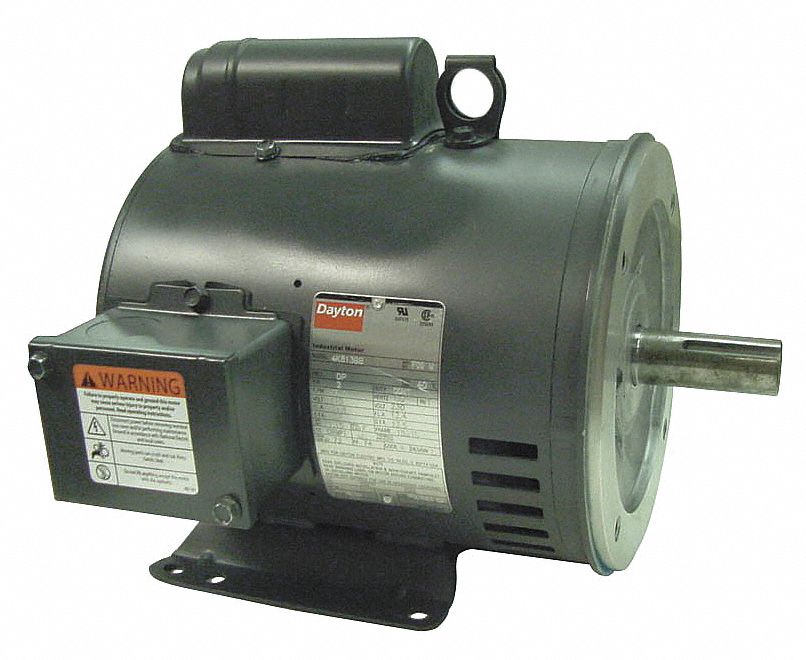

DAYTON GP Mtr, CS, ODP, 3 HP, 3500 rpm, 182TC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, Capacitor-Start, 3 HP, Nameplate RPM 3500, Voltage 115/230, 182TC Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 32.0/16.0, 60 Hz, Face/Removable Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 1-1/8 In., Shaft Length 2-3/4 In.

Grainger Item #	4K814
Price (ea.)	$879.00
Brand	DAYTON
Mfr. Model #	4K814
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	72.0
Availability	Typically in Stock
Catalog Page No.	12
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		3
Nameplate RPM		3500
NEMA/IEC Frame		182TC
Frame		182TC
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		32.0/16.0
Number of Speeds		1
Mounting		Face/Removable Base
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Shaft Type		Keyed
RPM Range		2350-3600
Duty		Continuous
Warranty (Years)		1
Footnotes		51
