DAYTON Mtr, 3 Ph, 50 HP, 1180, 208-230/460, Eff 94.1

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 50 HP, Nameplate RPM 1180, Voltage 208-230/460, 365T Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 128.0-116.0/58.0, 60 Hz, Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 29-15/16 In., Shaft Dia. 2-3/8 In., Shaft Length 5-7/8 In.

Grainger Item #	4GZE2
Price (ea.)	$3,944.00
Brand	DAYTON
Mfr. Model #	4GZE2
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	871.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	13
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

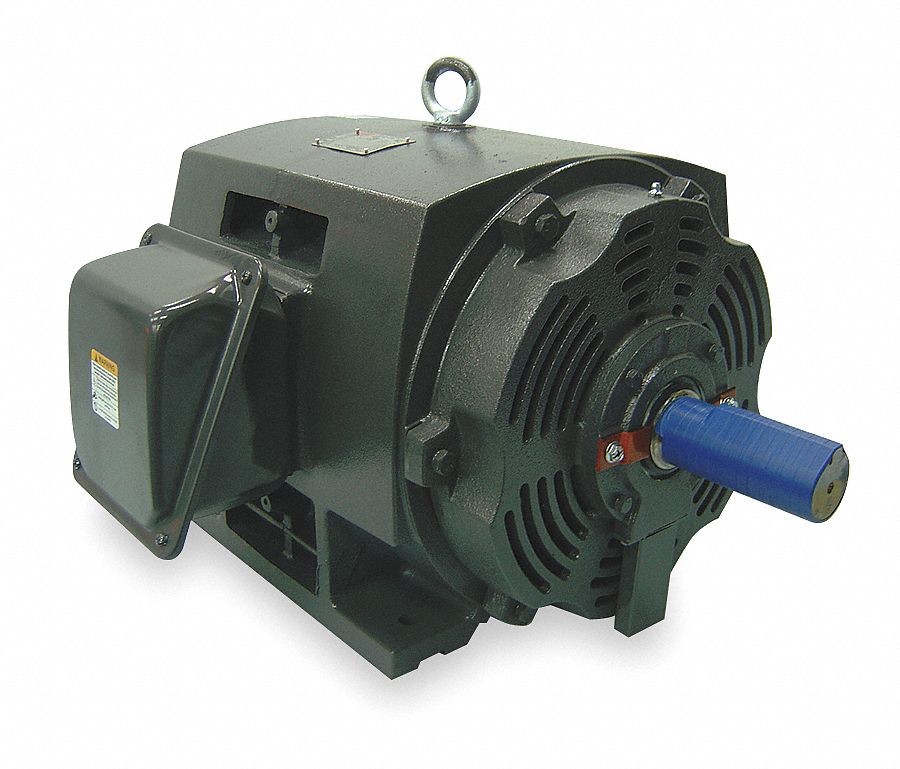

Mtr, 3 Ph, 50 HP, 1180, 208-230/460, Eff 94.1

Enlarge Image

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		50
Nameplate RPM		1180
NEMA/IEC Frame		365T
Frame		365T
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		128.0-116.0/58.0
Number of Speeds		1
Mounting		Base
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		2-3/8"
Shaft Length		5-7/8"
Length Less Shaft		24-1/16"
Overall Length		29-15/16"
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		94.1
Inverter Rated		Yes
Warranty (Years)		3
Footnotes		14,16,25
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
