DAYTON Mtr, 3 Ph, 20 HP, 1770, 208-230/460, Eff 93.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 20 HP, Nameplate RPM 1770, Voltage 208-230/460, 254T/256T Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 53.7-48.5/24.3, 60 Hz, Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 22-1/2 In., Shaft Dia. 1-5/8 In., Shaft Length 4 In.

Grainger Item #	4GZC7
Price (ea.)	$1,330.00
Brand	DAYTON
Mfr. Model #	4GZC7
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	259.0
Availability	Typically in Stock
Catalog Page No.	13
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

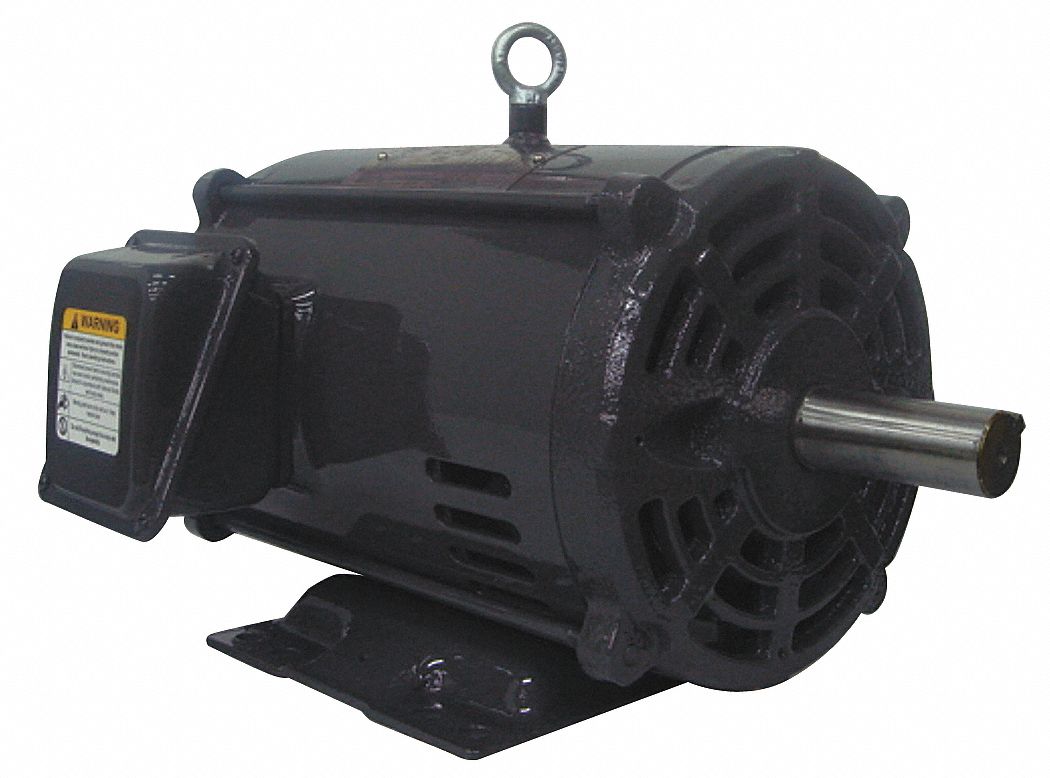

Mtr, 3 Ph, 20 HP, 1770, 208-230/460, Eff 93.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		20
Nameplate RPM		1770
NEMA/IEC Frame		254T/256T
Frame		254T/256T
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		53.7-48.5/24.3
Number of Speeds		1
Mounting		Base
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-5/8"
Shaft Length		4"
Length Less Shaft		18-1/2"
Overall Length		22-1/2"
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		93.0
Inverter Rated		Yes
Warranty (Years)		3
Footnotes		16,25
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
