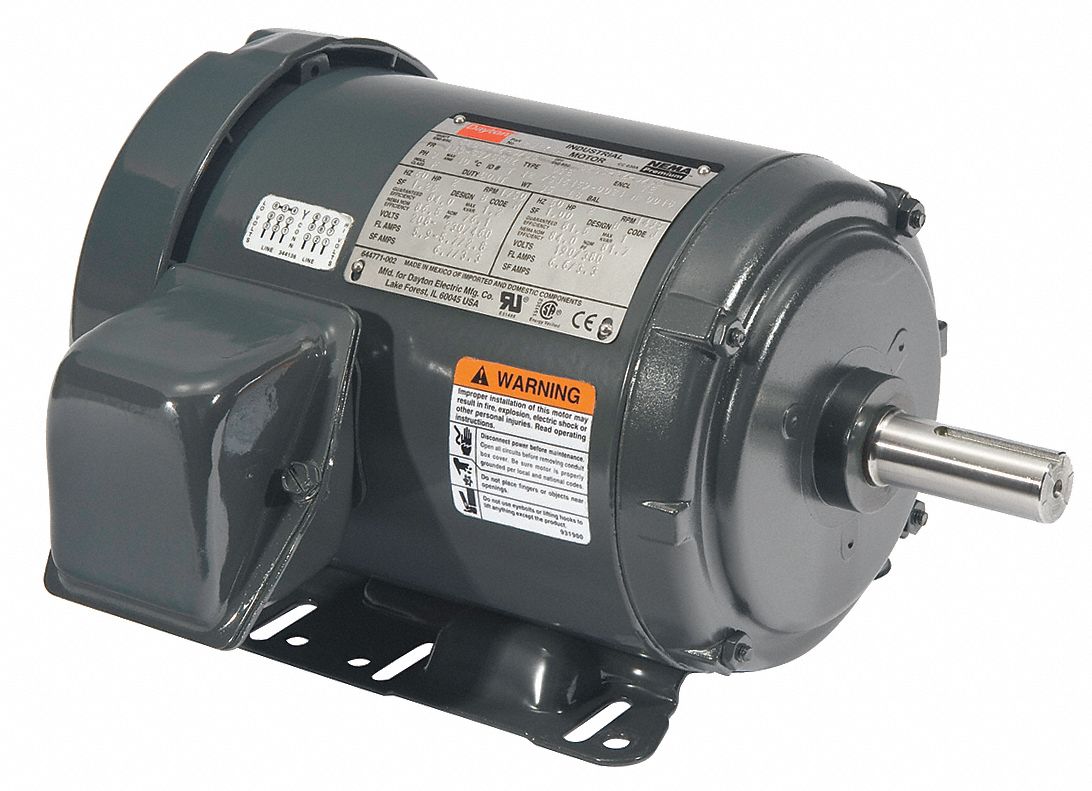

DAYTON GP Mtr, 3Ph, TEFC, 2 HP, 1745rpm, 143-5T/56HZ

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 2 HP, Nameplate RPM 1750, Voltage 208-230/460, 143-5T/56HZ Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 6.0-5.8/2.9, 60/50 Hz, Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-3/4 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	2NKY3
Price (ea.)	$506.00
Brand	DAYTON
Mfr. Model #	2NKY3
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	48.0
Availability	Typically in Stock
Catalog Page No.	14
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		1750
NEMA/IEC Frame		143-5T/56HZ
Frame		143-5T/56HZ
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		6.0-5.8/2.9
Number of Speeds		1
Mounting		Base
Mounting Position		Horizontal/Vertical
Thermal Protection		None
Insulation Class		F
Service Factor		1.25
Bearings		Ball
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		10-3/8"
Overall Length		12-3/4"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		86.5%
Inverter Rated		Yes
Warranty (Years)		3
Footnotes		5,10
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
