DAYTON Mtr, 3 Ph, 2 HP, 3450, 208-230/460V, Eff 86.5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 2 HP, Nameplate RPM 3450, Voltage 208-230/460, 145T Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 5.5-5.0/2.5, 60 Hz, Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 13-5/16 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	2MXT9
Price (ea.)	$503.00
Brand	DAYTON
Mfr. Model #	2MXT9
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	61.0
Availability	Typically in Stock
Catalog Page No.	14
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

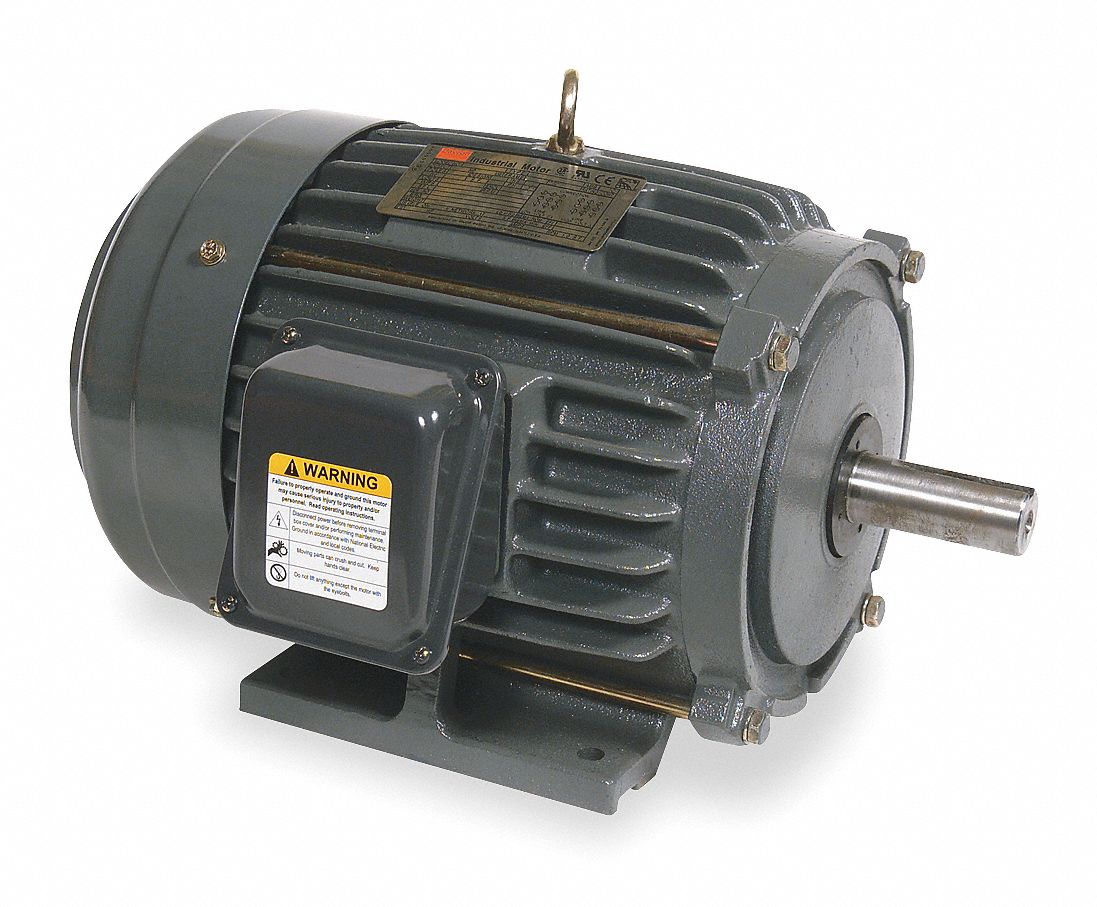

Mtr, 3 Ph, 2 HP, 3450, 208-230/460V, Eff 86.5

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		3450
NEMA/IEC Frame		145T
Frame		145T
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		5.5-5.0/2.5
Number of Speeds		1
Mounting		Base
Mounting Position		Horizontal Only
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		11-1/16"
Overall Length		13-5/16"
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		86.5
Inverter Rated		Yes
Warranty (Years)		3
Footnotes		15,16,23
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
