DAYTON Floor Drill Press, 20 In, 1.5 HP, 120/240

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Floor Drill Press, Belt Drive, Swing 20 In., Motor HP 1-1/2, Phase 1, Voltage 120/240, Hz 60, Amps AC 16 / 8, Capacity Cast Iron 1 In., Capacity Steel 1 In., Spindle Speed 119 to 3605, Number of Speeds 16, Chuck Size 5/8 In., Spindle Taper MT3, Spindle Travel 6 In., Column Dia. 3-39/64 In., Quill Dia. 2.441 In., Table Work Surface 18-5/8 x 16-5/8 In., Table Slots 9/16 In., Base Size 17-5/8 x 22-1/2 In., Overall Height 70-1/4 In., Overall Width 34 In.

Grainger Item #	5PHC4
Price (ea.)	$1,066.00
Brand	DAYTON
Mfr. Model #	5PHC4
UNSPSC #	27112703
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	355.0
Availability	Typically in Stock
Catalog Page No.	969
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

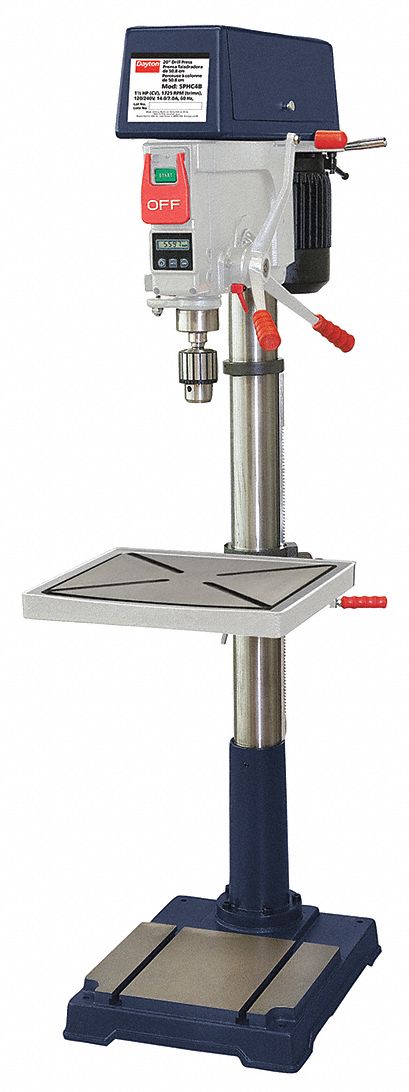

Floor Drill Press, 20 In, 1.5 HP, 120/240

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Floor Drill Press
Type		Belt Drive
Swing		20"
Motor HP		1-1/2
Phase		1
Voltage		120/240
Hz		60
Amps AC		16 / 8
Capacity Cast Iron		1"
Capacity Steel		1"
Spindle Speed		119 to 3605
Number of Speeds		16
Chuck Size		5/8"
Spindle Taper		MT3
Spindle Travel		6"
Spindle to Table		26-3/8"
Max. Spindle To Base		45-3/8"
Column Dia.		3-39/64"
Quill Dia.		2.441"
Table Work Surface		18-5/8 x 16-5/8"
Table Slots		9/16"
Base Size		17-5/8 x 22-1/2"
Overall Height		70-1/4"
Overall Width		34"
Overall Depth		18-1/4"
Includes		Chuck and Arbor
