DAYTON Float Switch, Vertical, 1/2 HP, Cord 20 Ft

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Float Switch, Mechanical, Vertical, Normally Open, Plug Connection, Max. Amps Running 10, HP @ 1 Phase - 115V 1/2, Voltage 115, Wire Gauge 16, Pumping Range Min./Max. 1 to 6, VA Rating 1560, Float Material Polypropylene, Body Material ABS, Control Range 5-1/4 In., Max. Voltage 120, Max. Wattage 1560, Mounting Bracket Material ABS, Turns Off At Bottom Stop, Turns On At Top Stop, Wire Lead SJTOW, Agency Compliance UL CSA, Compliance UL 508

Grainger Item #	10A171
Price (ea.)	$103.25
Brand	DAYTON
Mfr. Model #	10A171
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.15
Availability	Typically in Stock
Catalog Page No.	4049
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

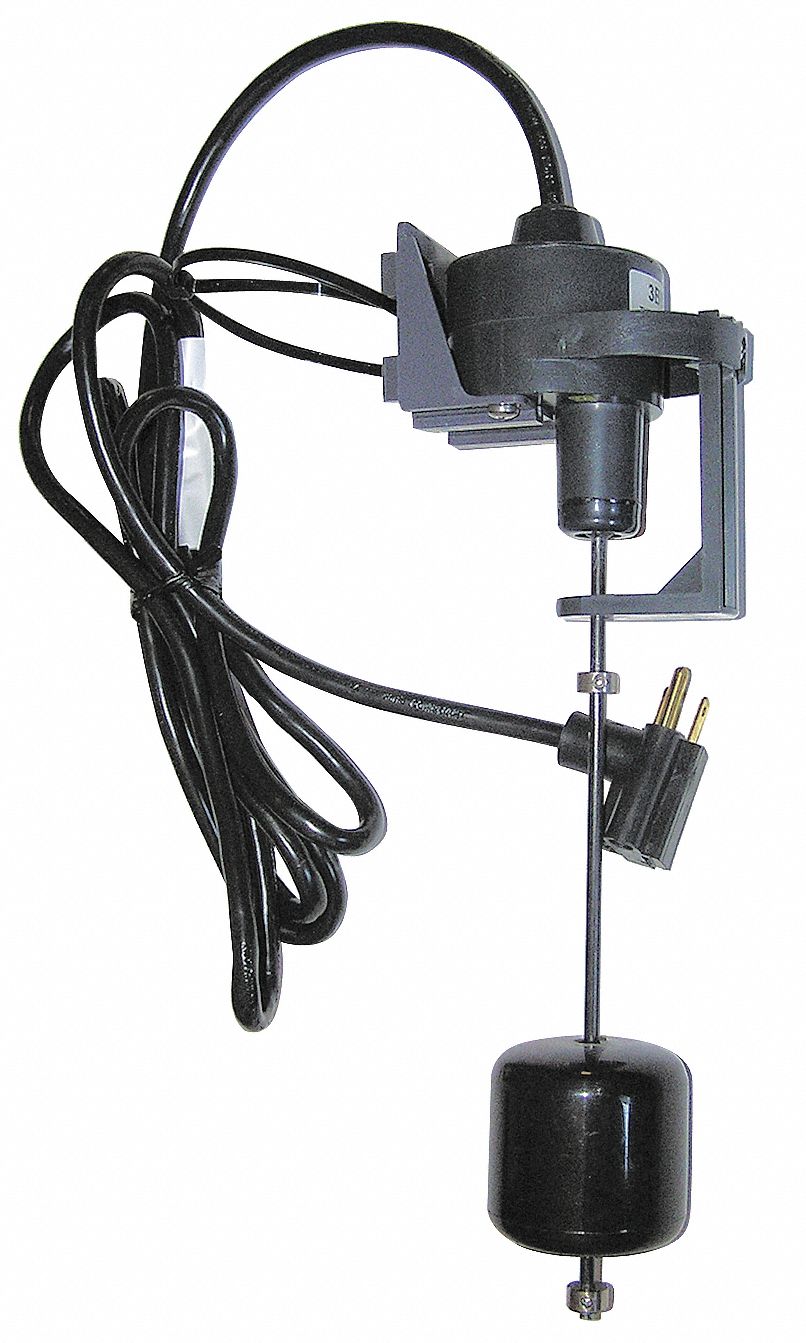

Float Switch, Vertical, 1/2 HP, Cord 20 Ft

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Float Switch, Mechanical
Type		Vertical
Switch Type		Normally Open
Connection		Plug
Max. Amps Running		10
HP @ 1 Phase - 115V		1/2
Voltage		115
Cord Length (Ft.)		20
Wire Gauge		16
Pumping Range Min./Max.		1 to 6
Float Length (In.)		1-7/8
Float Dia. (In.)		2-3/8
VA Rating		1560
Max. Temp. (F)		140
Max. Temp. (C)		60
Max. Pressure (PSI)		15
Float Material		Polypropylene
Body Material		ABS
Control Range		5-1/4"
Max. Voltage		120
Max. Wattage		1560
Mounting Bracket Material		ABS
Turns Off At		Bottom Stop
Turns On At		Top Stop
Wire Lead		SJTOW
Agency Compliance		UL CSA
Compliance		UL 508
