Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

DAYTON Farm Dty Mtr, CapStrt, TEFC, 3/4hp, 1725rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Capacitor-Start, 3/4 HP, Nameplate RPM 1725, Voltage 115/230, 1 Phase, Frame 56YZ, Totally Enclosed Fan-Cooled, Full Load Amps 9.1/4.6, 60/50 Hz, Flange/Base Mounting, Thermal Protection Manual, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW RotationShaft Dia. 1/2 In., Shaft Length 1-3/4 In.

Grainger Item #	5K046
Price (ea.)	$402.25
Brand	DAYTON
Mfr. Model #	5K046
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.0
Availability	Typically in Stock
Catalog Page No.	55
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

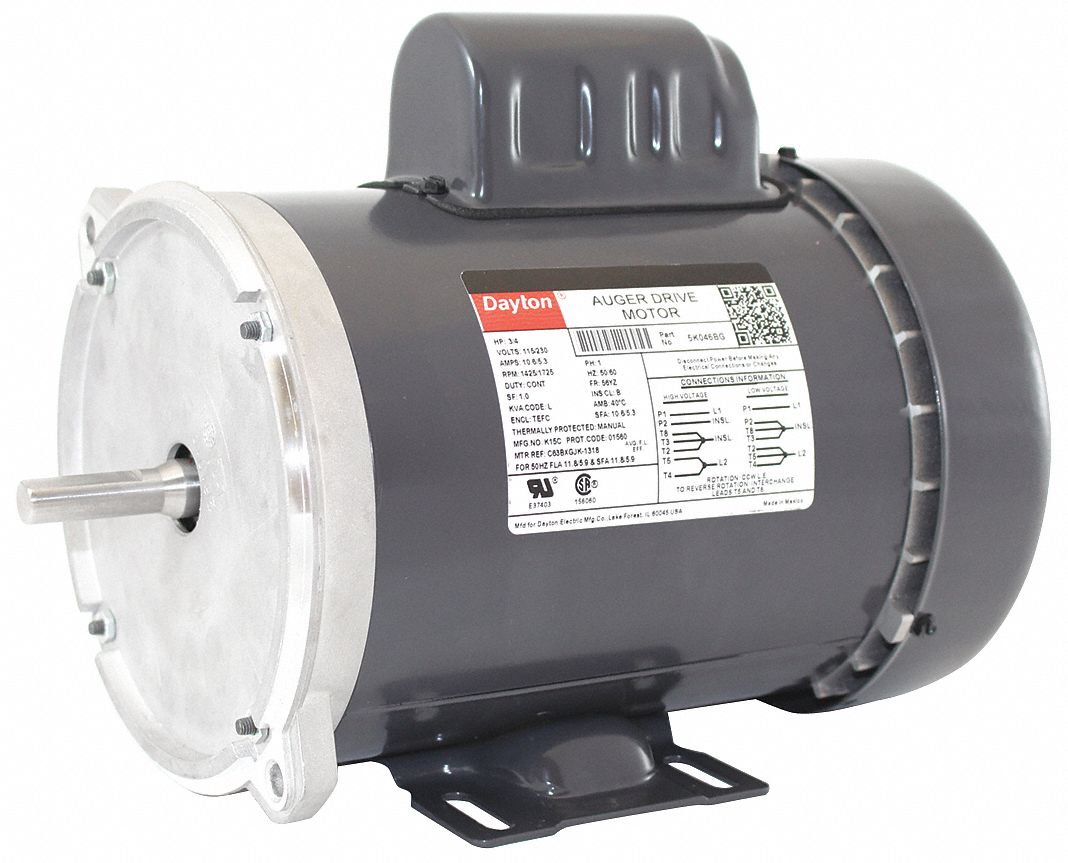

Farm Dty Mtr, CapStrt, TEFC, 3/4hp, 1725rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		3/4
Nameplate RPM		1725
NEMA/IEC Frame		56YZ
Frame		56YZ
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		9.1/4.6
Phase		1
Hz		60/50
Mounting		Flange/Base
Bearings		Ball
Thermal Protection		Manual
Service Factor		1.0
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		1/2"
Shaft Length		1-3/4"
Insulation Class		B
RPM Range		1400-1800
