Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

DAYTON Farm Dty Mtr, CapStrt, TEFC, 3/4hp, 1745rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Capacitor-Start, 3/4 HP, Nameplate RPM 1745, Voltage 115/230, 1 Phase, Frame 56N, Totally Enclosed Fan-Cooled, Full Load Amps 10.6/5.3, 60 Hz, Flange Mounting, Thermal Protection Manual, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 12 In., Shaft Dia. 1/2 In., Shaft Length 1-3/4 In., Frame Material Steel, Includes Extended Fan End Shaft with Wrench Flats for Manual Jogging of Auger

Grainger Item #	4RGX5
Price (ea.)	$372.25
Brand	DAYTON
Mfr. Model #	4RGX5
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	31.99
Availability	Typically in Stock
Catalog Page No.	55
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

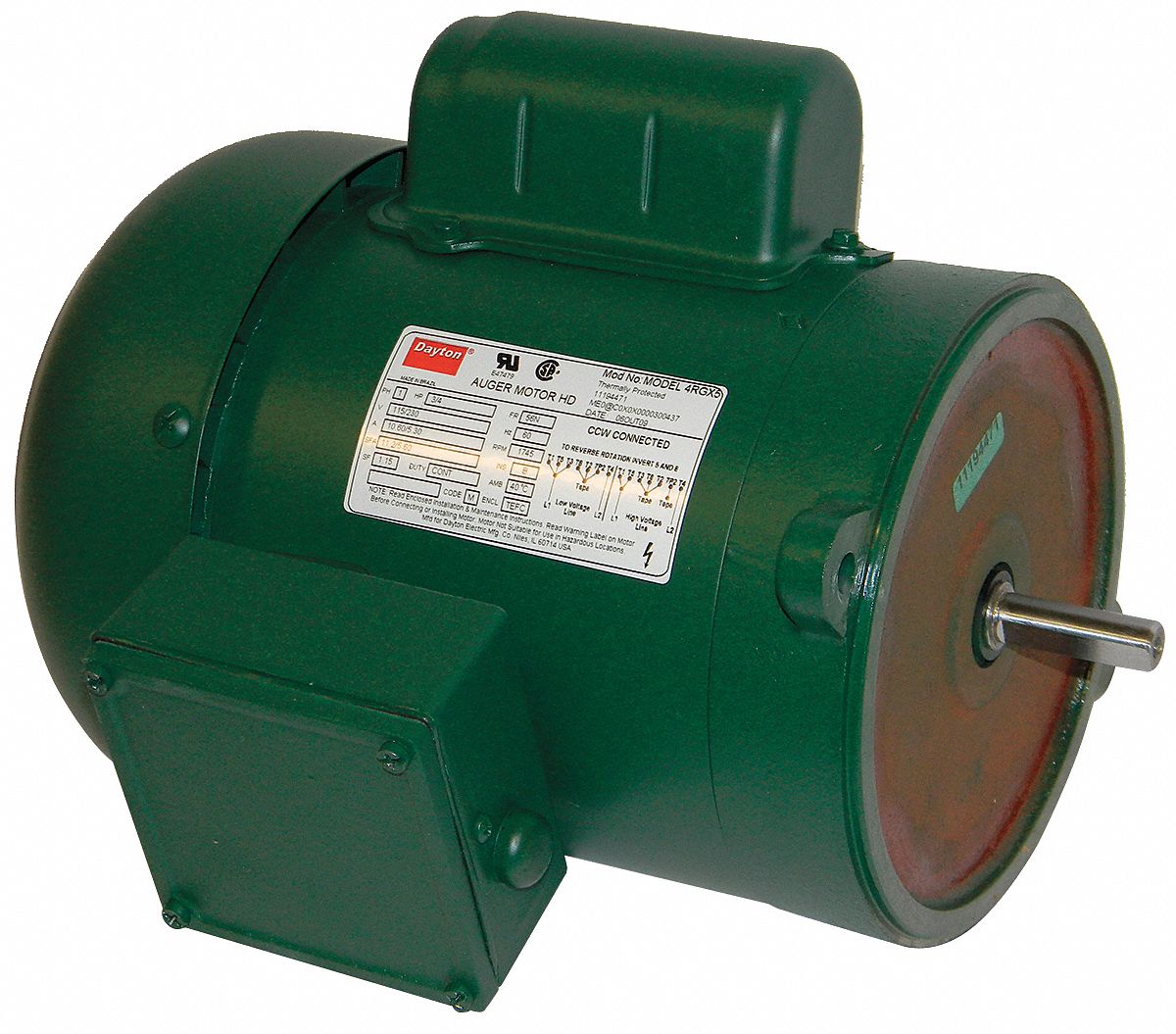

Farm Dty Mtr, CapStrt, TEFC, 3/4hp, 1745rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		3/4
Nameplate RPM		1745
NEMA/IEC Frame		56N
Frame		56N
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		10.6/5.3
Phase		1
Hz		60
Mounting		Flange
Mounting Position		All Angle
Bearings		Ball
Frame Material		Steel
Finish		Green
Thermal Protection		Manual
Service Factor		1.15
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		1/2"
Shaft Length		1-3/4"
Shaft Type		Flat
Length Less Shaft		10-1/4"
Overall Length		12"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		68.5%
Includes		Extended Fan End Shaft with Wrench Flats for Manual Jogging of Auger
Standards		UL Recognized, CSA Certified
