Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

DAYTON Farm Dty Mtr, CapStrt, TEFC, 1/2hp, 1725rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Capacitor-Start, 1/2 HP, Nameplate RPM 1725, Voltage 115/230, 1 Phase, Frame 56, Totally Enclosed Fan-Cooled, Full Load Amps 8.8/4.4, 60 Hz, Base Mounting, Thermal Protection Manual, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 11-13/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Frame Material Rolled Steel, Includes Shaft Slinger and Gasketed Capacitor Cover

Grainger Item #	1TMY3
Price (ea.)	$198.00
Brand	DAYTON
Mfr. Model #	1TMY3
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.23
Availability	Typically in Stock
Catalog Page No.	54
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

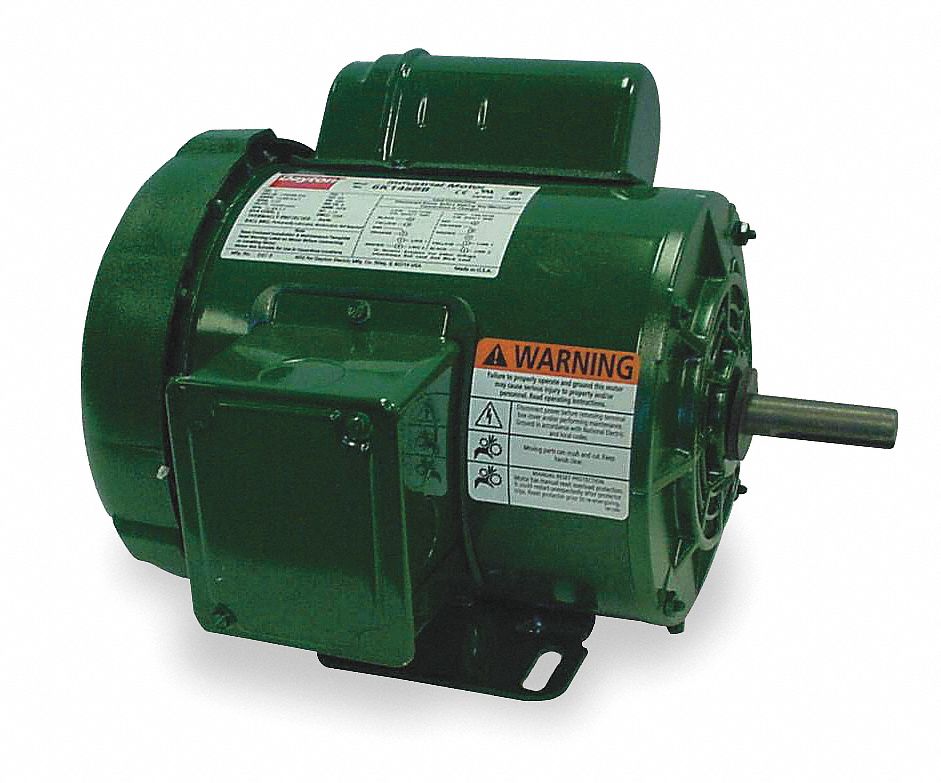

Farm Dty Mtr, CapStrt, TEFC, 1/2hp, 1725rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1/2
Nameplate RPM		1725
NEMA/IEC Frame		56
Frame		56
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		8.8/4.4
Phase		1
Hz		60
Mounting		Base
Mounting Position		Horizontal
Bearings		Ball
Frame Material		Rolled Steel
Finish		Green Baked On Enamel
Thermal Protection		Manual
Service Factor		1.15
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		9-15/16"
Overall Length		11-13/16"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous
Includes		Shaft Slinger and Gasketed Capacitor Cover
Standards		UL Recognized (E47479), CSA Certified (LR44256)
