DAYTON Farm Duty Mtr, Cap Start, TEFC, 3hp, 1740rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Capacitor-Start, 3 HP, Nameplate RPM 1740, Voltage 230, 1 Phase, Frame 184T, Totally Enclosed Fan-Cooled, Full Load Amps 19.0, 60 Hz, Base Mounting, Thermal Protection Manual, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 16-7/16 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In., Frame Material Rolled Steel, Includes Shaft Slinger and Gasketed Capacitor Cover

Grainger Item #	1TMX8
Price (ea.)	$543.00
Brand	DAYTON
Mfr. Model #	1TMX8
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	88.0
Availability	Typically in Stock
Catalog Page No.	54
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

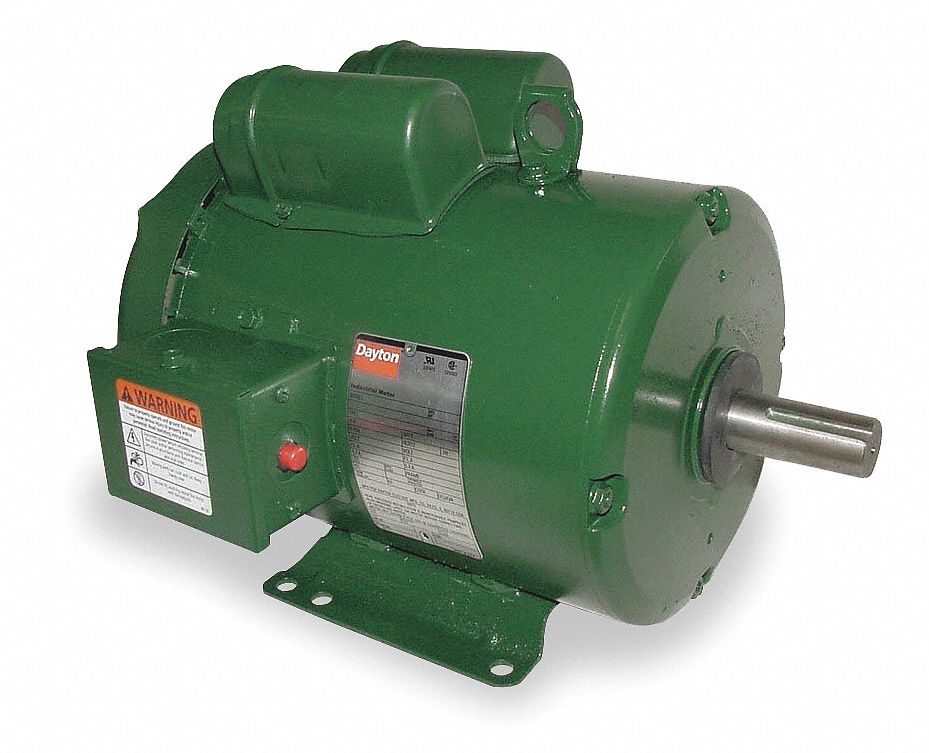

Farm Duty Mtr, Cap Start, TEFC, 3hp, 1740rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		3
Nameplate RPM		1740
NEMA/IEC Frame		184T
Frame		184T
Rotation		CW/CCW
Voltage		230
Full Load Amps		19.0
Phase		1
Hz		60
Mounting		Base
Mounting Position		Horizontal
Bearings		Ball
Frame Material		Rolled Steel
Finish		Green Aqua Enamel
Thermal Protection		Manual
Service Factor		1.15
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Length Less Shaft		13-11/16"
Overall Length		16-7/16"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Includes		Shaft Slinger and Gasketed Capacitor Cover
Standards		UL Recognized (E47479), CSA Certified (LR44256)
