HVAC and Refrigeration
>
Exhaust Fans
>
Belt Drive Exhaust Fans w/Drive Package

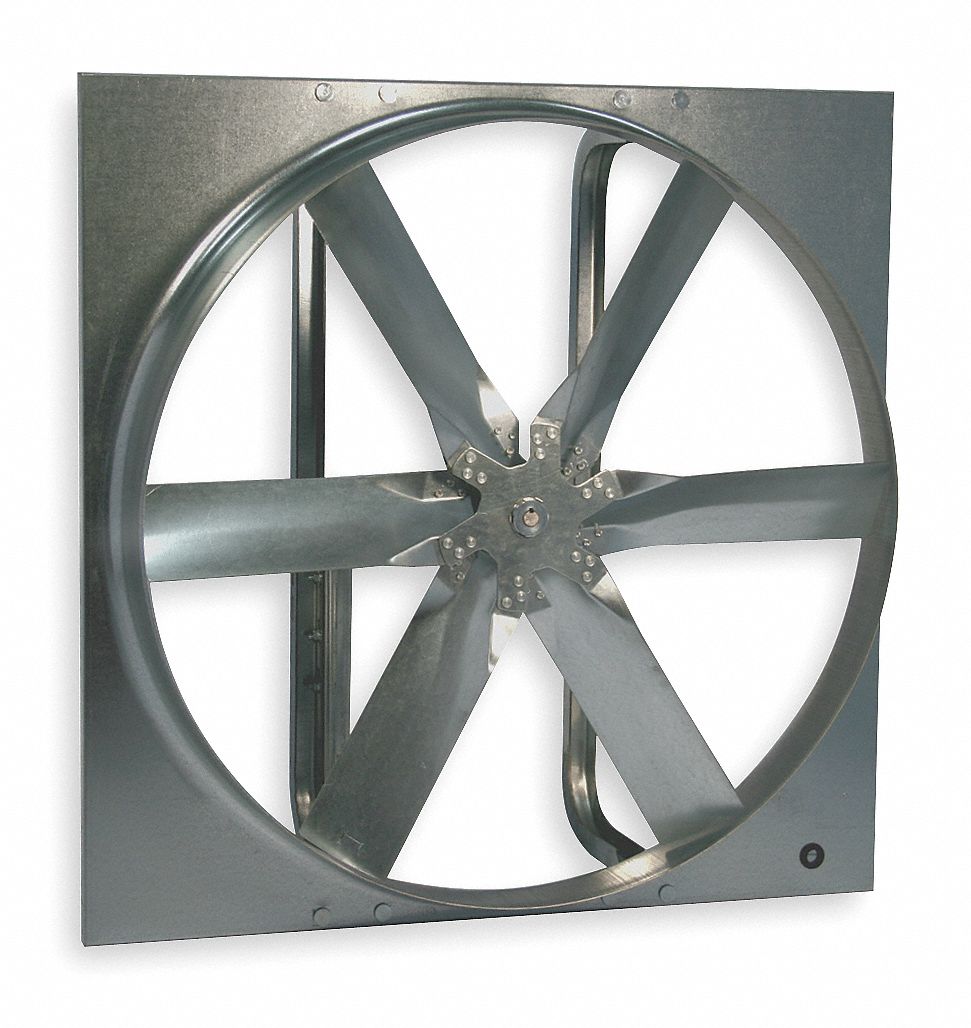

DAYTON Exhaust Fan, 30 In, Volts 115/208-230

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Exhaust Fan, Standard Duty Belt Drive With Drive Package, Propeller Dia 30 In, CFM @ 0.000-In SP 11061, @ 0.125-In SP 10385, @ 0.250-In SP 9736, @ 0.375-In SP 8847, Sones @ 0.000-In SP @ 5 Ft 26, Max Inlet Temp 104 Deg F, Voltage 115/208-230, 60 Hz, Single Phase, Motor HP 1, Bearing Type Regreaseable Pillowblock, Fan RPM 968, Height 34 In, Width 34 In, Max. Depth 21 1/2 In, Mounting Position Vertical or Horizontal, Frame Material Galvanized Steel, Propeller Material Steel

Grainger Item #	7CC98
Price (ea.)	$1,065.00
Brand	DAYTON
Mfr. Model #	7CC98
UNSPSC #	40101502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	95.05
Availability	Typically in Stock
Catalog Page No.	4452
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Exhaust Fan
Type		Standard Duty Belt Drive With Drive Package
Propeller Dia. (In.)		30
CFM @ 0.000-In. SP		11,061
CFM @ 0.125-In. SP		10,385
CFM @ 0.250-In. SP		9736
CFM @ 0.375-In. SP		8847
CFM @ 0.500-In. SP		7570
Sones @ 0.000-In. SP @ 5 Ft.		26
Max. Inlet Temp. (Deg. F)		104
Voltage		115/208-230
Hz		60
Phase		1
Full Load Amps		13.4/6.8-6.7
Motor HP		1
Max. BHP		1.20
Bearing Type		Regreasable Pillow Block
Motor RPM		1725
Motor Type		Capacitor-Start
Motor Enclosure		Totally Enclosed
Motor Insulation		Class B
Fan RPM		968
Height (In.)		34
Width (In.)		34
Max. Depth (In.)		21-1/2
Venturi Clearance Dia. (In.)		30-3/8
Venturi Depth (In.)		5-1/4
Flange Depth (In.)		1
Mounting Position		Horizontal or Vertical
Frame Material		Galvanized Steel
Propeller Material		Steel
Number of Blades		6
Bearing Size (In.)		3/4
Shaft Dia. (In.)		3/4
Agency Compliance		AMCA
Includes		Drive Package
Aluminum Wall Shutter No.		3C309
Fiberglass Wall Shutter No.		5C216
Galvanized Wall Shutter No.		1C055
Intake Guard No.		1WBU4
Motorized Wall Galv. Shutter Stock No.		2C831
Wall Collar Stock No.		1WBV2
Weatherhood No.		1WBW1

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

Fan Shutter, 30 1/2 In

Brand:

DAYTON

Grainger Item #:

1C055

Price (ea.):

$98.25

Item #	Description	Brand Mfr. Model #	Availability	Price
1C055	Fan Shutter, 30 1/2 In >More Details... Country of Origin: USA	DAYTON 1C055	Typically in Stock	$98.25
Be the First to Write a Review



3C309	Shutter, Wall, 30 In >More Details... Country of Origin: USA	DAYTON 3C309	Typically in Stock	$95.90
Be the First to Write a Review



5C215	Fan Shutter, 24 In, Beige Fiberglass >More Details... Country of Origin: USA	DAYTON 5C215	Typically in Stock	$141.05
Be the First to Write a Review



5C216	Fan Shutter, 30 In, Beige Fiberglass >More Details... Country of Origin: USA	DAYTON 5C216	Typically in Stock	$180.75
Be the First to Write a Review



1WBU4	Fan Guard, 34-1/8 In. H, 34-1/8 In. W >More Details... Country of Origin: USA	DAYTON 1WBU4	Typically in Stock	$305.00
Be the First to Write a Review

Item #	Description	Brand Mfr. Model #	Availability	Price
7CC95	Exhaust Fan, 30 In, Volts 115/208-230 >More Details... Country of Origin: USA	DAYTON 7CC95	Typically in Stock	$1,048.00
Be the First to Write a Review
