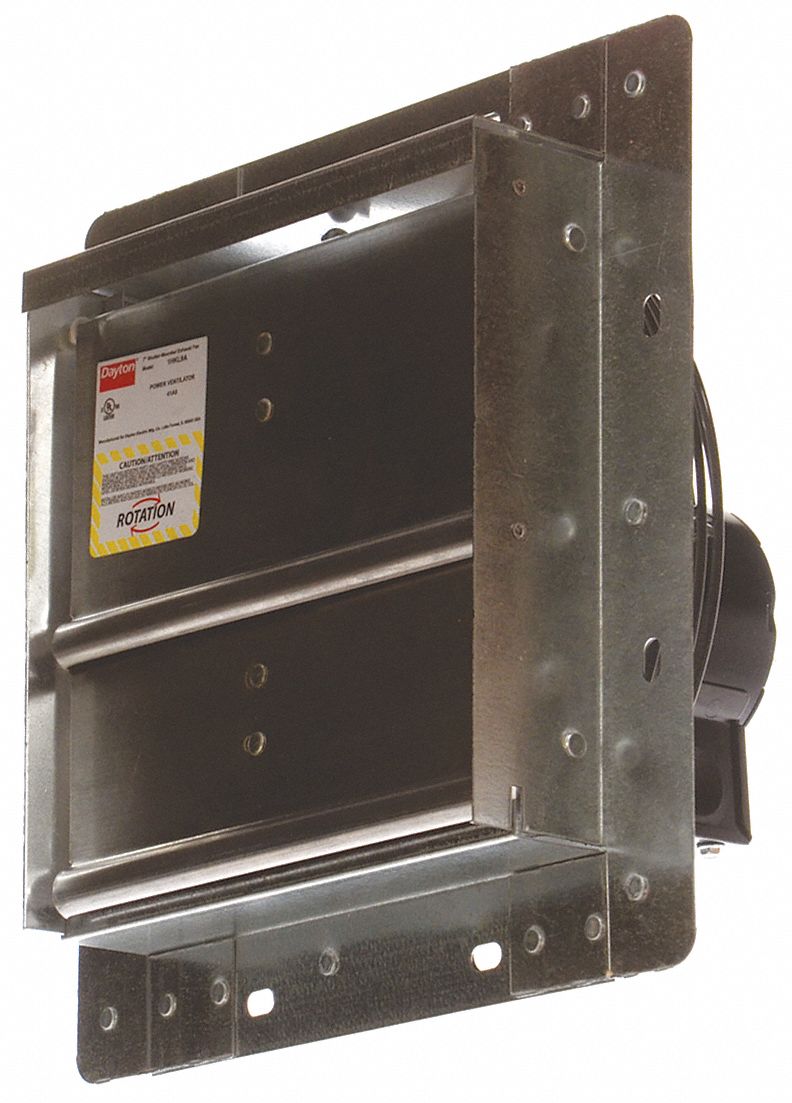

DAYTON Exhaust Fan, 18 In, 115 V, 1860 CFM

Exhaust Fan, Direct Drive, Shutter Mounted, Speed Controllable, Propeller Dia. (In.) 18, CFM @ 0.000-In. SP 1860, Motor RPM 1075, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 1.3, HP 1/15, Max. Ambient Temp. (F) 104, Motor Type Shaded Pole, Motor Enclosure Totally Enclosed Air-Over, Height (In.) 21-1/8, Width (In.) 21-1/8, Max. Depth (In.) 14-7/8, Sq. Opening Required (In.) 19, Frame Material Cold Rolled Steel, Frame Finish Galvanized Steel, Propeller Material Stamped Aluminum
  • Grainger Item #1HLA4
    Price (ea.)$326.25
    BrandDAYTON
    Mfr. Model #1HLA4
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)22.0
    Availability Typically in Stock
    Catalog Page No.4446
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemExhaust Fan
TypeDirect Drive, Shutter Mounted, Speed Controllable
Propeller Dia. (In.)18
CFM @ 0.000-In. SP1860
CFM @ 0.125-In. SP850
Sones @ 0.000-In. SP @ 5 Ft.8.4
Motor RPM1075
Voltage115
Hz60
Phase1
Full Load Amps1.3
HP1/15
Max. Ambient Temp. (F)104
Motor TypeShaded Pole
Motor EnclosureTotally Enclosed Air-Over
Motor InsulationClass A
Bearing TypeSleeve
Height (In.)21-1/8
Width (In.)21-1/8
Max. Depth (In.)14-7/8
Sq. Opening Required (In.)19
Frame MaterialCold Rolled Steel
Frame FinishGalvanized Steel
Propeller MaterialStamped Aluminum
Guard MaterialSteel
Wire Guard FinishGray Polyester
Speed Control1DGV1
Number of Blades3
Thermal ProtectionAuto
Agency ComplianceUL Listed for US and Canada
IncludesAutomatic Shutter

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Exhaust Fan, 18 In, 115 V, 1860 CFM" /> <div id="BVRRContentValidationID_1HLA4"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-17" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Exhaust Fan, 18 In, 115 V, 1860 CFM" />Rated <span itemprop="ratingValue">4</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_1HLA4"><div id='11501313' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Exhaust Fan, 18 In, 115 V, 1860 CFM" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">4</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Spencer</span><span itemprop="description"> Have had fan up now for a week and a half running none stop with no problem.The only thing that I had as a problem was out of the box one of the screws that goes into a plastic molly holding the sreen in place had pulled out. Seems kind of cheaply built as far as that goes, we will see how it holds up long term.</span> October 9, 2012<meta itemprop="datePublished" content="2012-10-09" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_1HLA4').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

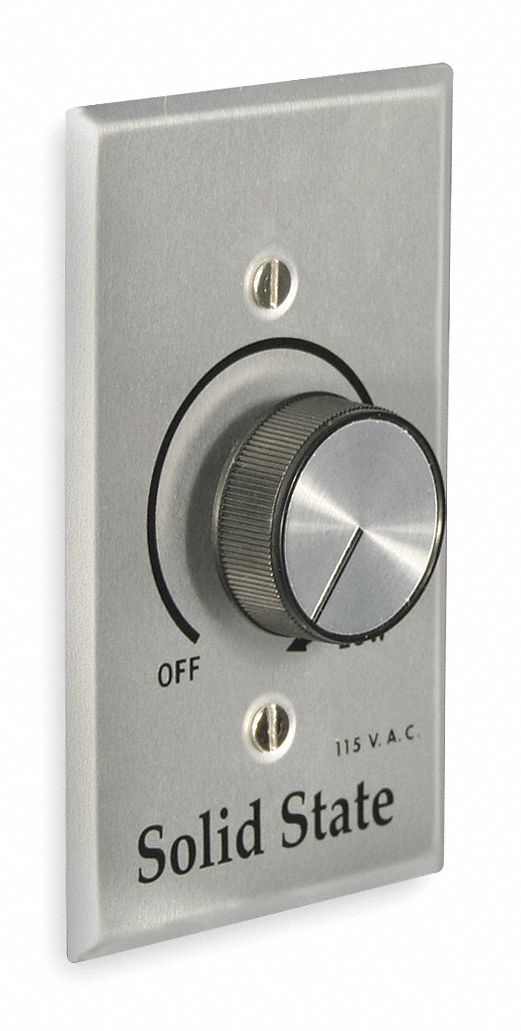

Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

1DGV1

Price (ea.):

$32.05
