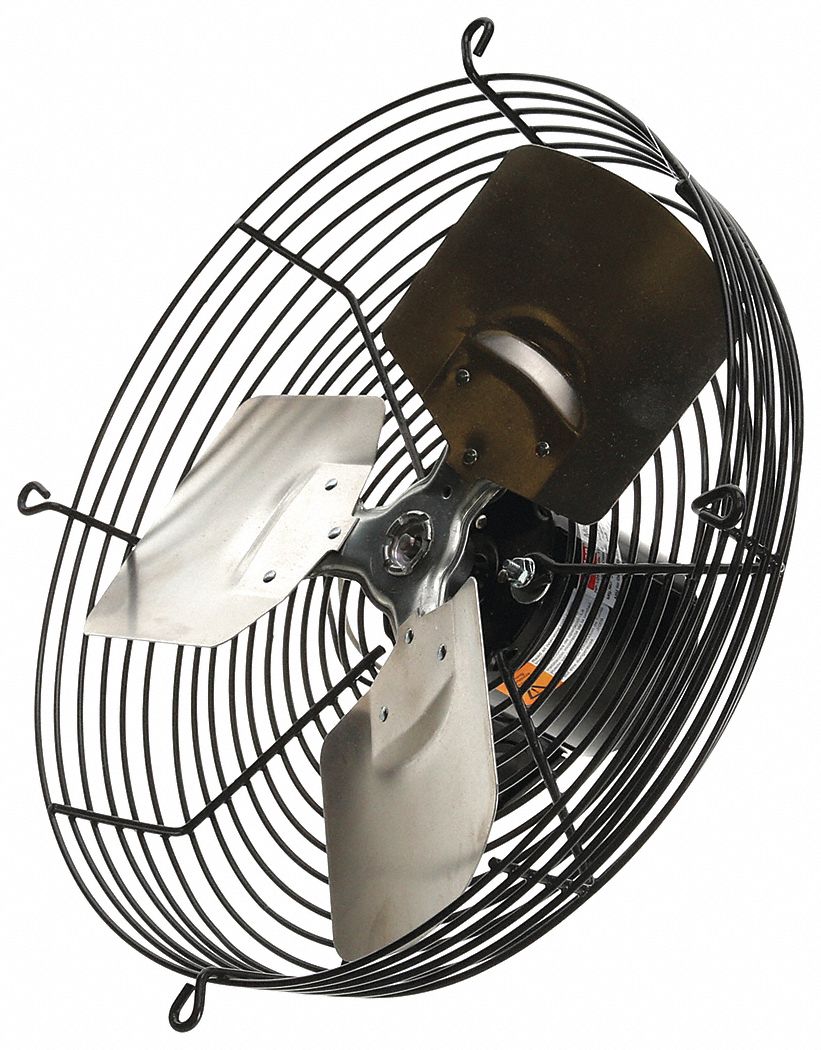

DAYTON Exhaust Fan, 12 In, 115 V, 820 CFM

Exhaust Fan, Guard Mounted, Propeller Dia. (In.) 12, CFM @ 0.000-In. SP 820, CFM @ 0.125-In. SP 535, Voltage 115, 60 Hz, 1 Phase, Operating Amps 1.5, Motor HP 1/25, Max. Ambient Temp. (F) 104, Motor RPM 1550, Motor Type Shaded Pole, Motor Enclosure Totally Enclosed Air-Over, Max. Depth (In.) 5-15/16, Mounting Position Horizontal or Vertical, Mounting Holes O.C. (In.) 10-3/16, Guard Material Steel, Wire Guard Finish Gray Polyester, Outside Dia. (In.) 13-1/2, Propeller Material Stamped Aluminum
  • Grainger Item #1HKL4
    Price (ea.)$133.15
    BrandDAYTON
    Mfr. Model #1HKL4
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)8.72
    Availability Typically in Stock
    Catalog Page No.4446
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemExhaust Fan
TypeGuard Mounted
Propeller Dia. (In.)12
CFM @ 0.000-In. SP820
CFM @ 0.125-In. SP535
Sones @ 0.000-In. SP @ 5 Ft.6.2
Voltage115
Hz60
Phase1
Operating Amps1.5
Motor HP1/25
Max. Ambient Temp. (F)104
Bearing TypeSleeve
Motor RPM1550
Motor TypeShaded Pole
Motor EnclosureTotally Enclosed Air-Over
Motor InsulationClass A
Max. Depth (In.)5-15/16
Mounting PositionHorizontal or Vertical
Mounting Holes O.C. (In.)10-3/16
Guard MaterialSteel
Wire Guard FinishGray Polyester
Outside Dia. (In.)13-1/2
Propeller MaterialStamped Aluminum
Number of Blades3
Thermal ProtectionAuto
IncludesWiring, Junction Box, and 8" Leads
Agency ComplianceUL-CUL E53236

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Exhaust Fan, 12 In, 115 V, 820 CFM" /> <div id="BVRRContentValidationID_1HKL4"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-19" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Exhaust Fan, 12 In, 115 V, 820 CFM" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_1HKL4"><div id='1157100' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Exhaust Fan, 12 In, 115 V, 820 CFM" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Marco</span><span itemprop="name"> Dimension were very accomidating &amp; easy to install</span><span itemprop="description"> We purchased this Exhaust fan for one of our customers, &amp; they are very satisfied with it's performance. We retrofited this unit with an original glass block window in order to provide exhaust / ventilation.</span> March 26, 2012<meta itemprop="datePublished" content="2012-03-26" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_1HKL4').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>
