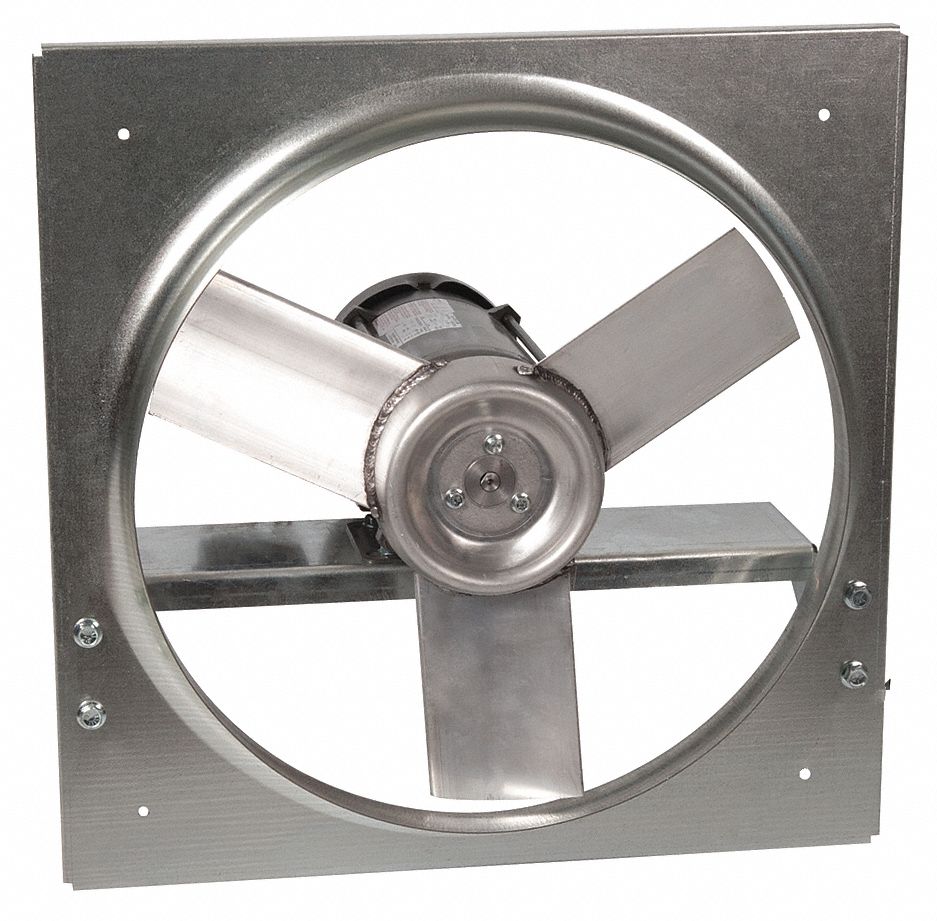

Exhaust Fan, Industrial Direct Drive, Propeller Dia. (In.) 20, CFM @ 0.000-In. SP 4557, Sones @ 0.000-In. SP @ 5 Ft. 23, Sones @ 0.125-In. SP @ 5 Ft. 22, Max. Ambient Temp. (F) 104, Voltage 115/230, 60 Hz, 1 Phase, Motor HP 3/4, Motor RPM 1750, Motor Enclosure Totally Enclosed Air Over, Motor Insulation Class B, Bearing Type Ball, Full Load Amps 8.1/1/4, Watts 373, Height (In.) 24, Width (In.) 24, Max. Depth (In.) 15-3/8, Venturi Depth (In.) 3-1/2, Flange Width (In.) 1, Frame Material Galvanized
  • Grainger Item #10D987
    Price (ea.)$893.50
    BrandDAYTON
    Mfr. Model #10D987
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)41.9
    Availability Typically in Stock
    Catalog Page No.4447
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemExhaust Fan
TypeIndustrial Direct Drive
Propeller Dia. (In.)20
CFM @ 0.000-In. SP4557
CFM @ 0.125-In. SP4254
CFM @ 0.250-In. SP3919
CFM @ 0.375-In. SP3542
CFM @ 0.500-In. SP3101
Sones @ 0.000-In. SP @ 5 Ft.23
Sones @ 0.125-In. SP @ 5 Ft.22
Max. Ambient Temp. (F)104
Voltage115/230
Hz60
Phase1
Motor HP3/4
Motor RPM1750
Motor EnclosureTotally Enclosed Air Over
Motor InsulationClass B
Bearing TypeBall
Full Load Amps8.1/1/4
Watts373
Height (In.)24
Width (In.)24
Max. Depth (In.)15-3/8
Venturi Depth (In.)3-1/2
Flange Width (In.)1
Frame MaterialGalvanized
Frame FinishGalvanized
Propeller MaterialAluminum
Number of Blades3
Mounting PositionVertical or Horizontal
Speed ControlNo
Agency ComplianceUL and cUL Listed, AMCA
For Use WithGeneral Ventilation Applications
Aluminum Wall Shutter No.4C559
Fiberglass Wall Shutter No.5C214
Galvanized Wall Shutter No.1C745
Intake Guard No.1WBU2

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Exhaust Fan, 20 In, 115/230V" /> <div id="BVRRContentValidationID_10D987"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-22" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Exhaust Fan, 20 In, 115/230V" />Rated <span itemprop="ratingValue">1</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_10D987"><div id='10294303' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Exhaust Fan, 20 In, 115/230V" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">1</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Ronzo</span><span itemprop="description"> Original fan came in with hidden damage as the frame was bent, fan blade would not spin, returned for replacement. Replacement came in damaged as well, but we could not wait any longer and we had one of our guys work it so the fan blade would spin. These fans are a newer style made with aluminum and need to be packaged better to prevent damage.</span> September 6, 2012<meta itemprop="datePublished" content="2012-09-06" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_10D987').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

1C745

Price (ea.):

$72.10
