DAYTON Engine Driven High Pressure Pump, 7.1 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Engine Driven High Pressure Pump, 7.1 HP, Engine Size 242cc, Honda GX240 OHV, Engine/Motor Type Gas, Tank Capacity 5.6 Qt., 8880 GPH, NPT Port 2-1/2x2 In., Length 21-13/32 In., Height 18-15/16 In., Material of Construction Aluminum, Cast Iron Impeller, Semi-Open, Max. Pressure 87.9 PSI, Max. Head 203 Ft., Temp. Range 35 to 105 F, Recoil-Start Ignition

Grainger Item #	11G233
Price (ea.)	$2,342.00
Brand	DAYTON
Mfr. Model #	11G233
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	101.0
Availability	Typically in Stock
Catalog Page No.	4060
Country of Origin (Country of Origin is subject to change.)	Japan
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

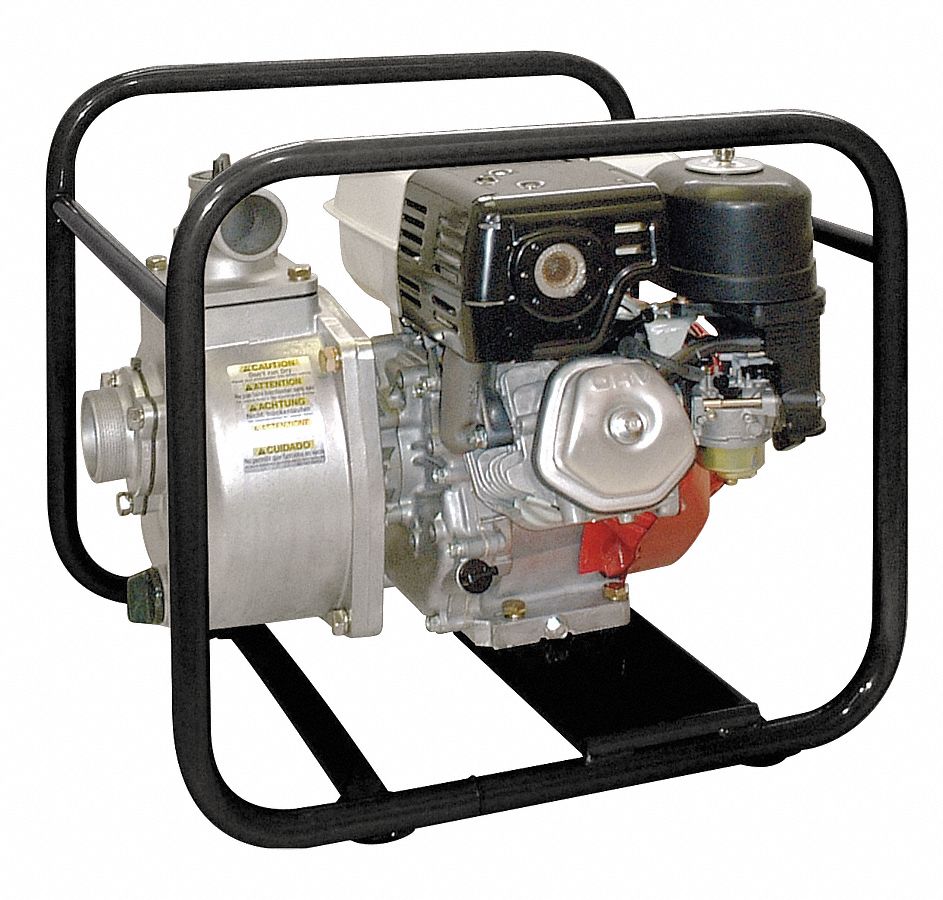

Engine Driven High Pressure Pump, 7.1 HP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Engine Driven High Pressure Pump
Type		High Pressure
Connection		2.5" x 2"
HP		7.1
Engine Size		242cc
Engine Brand		Honda GX240 OHV
Engine/Motor Type		Gas
Tank Capacity (Qt.)		5.6
GPH		8880
NPT Port (In.)		2-1/2x2
Length (In.)		21-13/32
Width (In.)		16-15/16
Height (In.)		18-15/16
Material of Construction		Aluminum
Impeller		Cast Iron
Impeller Type		Semi-Open
Seal Material		Buna
Max. Pressure (PSI)		87.9
Engine RPM		3600
GPM of Water @ 10 Ft. of Head		145
GPM of Water @ 20 Ft. of Head		139
GPM of Water @ 30 Ft. of Head		136
GPM of Water @ 40 Ft. of Head		130
GPM of Water @ 50 Ft. of Head		127
GPM of Water @ 60 Ft. of Head		122
GPM of Water @ 70 Ft. of Head		116
GPM of Water @ 80 Ft. of Head		110
GPM of Water @ 90 Ft. of Head		105
GPM of Water @ 100 Ft. of Head		98
GPM of Water @ 125 Ft. of Head		84
GPM of Water @ 150 Ft. of Head		67
GPM of Water @ 175 Ft. of Head		45
GPM of Water @ 200 Ft. of Head		23
Max. Flow		148
Max. Head (Ft.)		203
Max. Suction Lift (Ft.)		26
Casing Adapter		Aluminum
Volute/Wear Plate		Aluminum
Mechanical Seal		Ceramic/Buna
Check Valve		Buna
Roll Bar Frame		Steel
Number of Impellers		1
Temp. Range (F)		35 to 105
Ignition Type		Recoil-Start
Fuel Type		Gasoline
Sensor Type		Yes
Self-Priming		Yes
Agency Compliance		EPA and CARB Certified Engine
