DAYTON Pump, Engine Driven

| Write a Review
| Read all Reviews
| Read all Ask & Answer

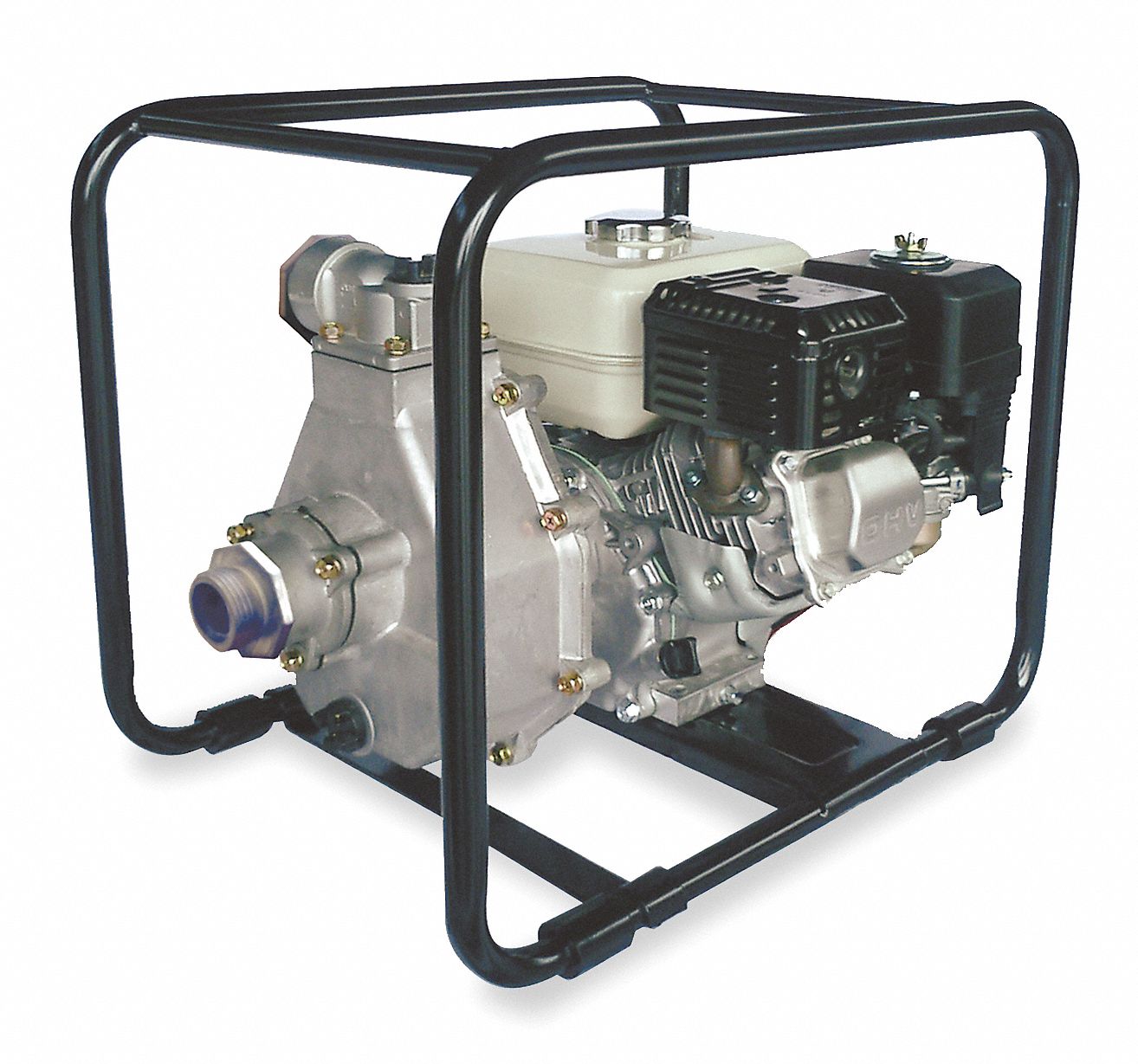

Engine Driven Centrifugal Pump, Self Priming, High-Pressure, HP 5.5, Ignition Type Electronic, Honda OHV, Sensor Type Low Oil, NPT Port 1 1/2 In, Check Valve NBR/Steel, Maximum Pressure 93 PSI, Height 18 In, Width 14 1/2 In, Impeller Aluminum, Impeller Type Closed, Liquid Temp Range 35 to 105 Deg F, Pump and Casing Adapter Aluminum, For Use With Nonflammable Liquids, GPH of Water @10 Ft of Head 5760, @40 Ft of Head 5280, Max Head 215 Ft

Grainger Item #	4VV61
Price (ea.)	$890.22
Brand	DAYTON
Mfr. Model #	4VV61
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	62.2
Availability	Clearance - limited quantity available
Catalog Page No.	4060
Country of Origin (Country of Origin is subject to change.)	Japan
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Engine Driven Centrifugal Pump
Type		High Pressure
HP		5.5
Engine Size		163cc
Engine Brand		Honda OHV
Engine/Motor Type		Gas
Tank Capacity (Qt.)		3.88
NPT Port (In.)		1-1/2
Length (In.)		21-1/4
Width (In.)		14-1/2
Height (In.)		18
Material of Construction		Aluminum
Impeller		Aluminum
Impeller Type		Closed
Seal Material		Buna N, CRB/CMC
Max. Pressure (PSI)		93
Engine RPM		3600
GPM of Water @ 10 Ft. of Head		96
GPM of Water @ 30 Ft. of Head		90
GPM of Water @ 60 Ft. of Head		82
GPM of Water @ 90 Ft. of Head		70
Max. Head (Ft.)		215
Max. Suction Lift (Ft.)		25
Volute/Wear Plate		Cast-Iron
Mechanical Seal		Carbon Ceramic/Buna
Check Valve		NBR/Steel
Roll Bar Frame		Steel
Number of Impellers		1
Ignition Type		Electronic
Sensor Type		Low Oil
Self-Priming		Yes
Agency Compliance		EPA and CARB Certified Engine
